SSD - Embedded Storage

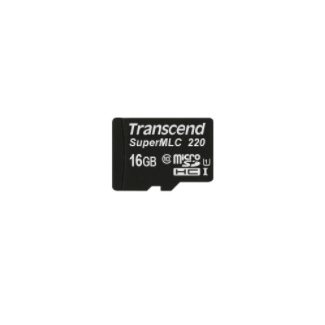

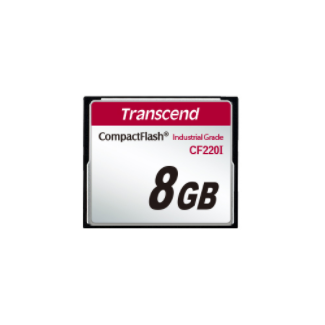

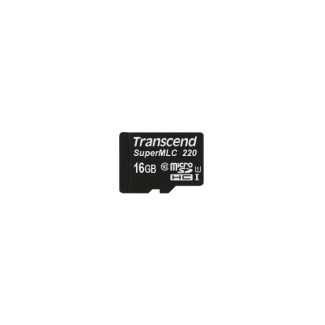

Tekdis is the authorised distributor for Transcend embedded storage solutions. We offer the full range of 2.5” SSDs, M.2, mSATA USD drives and card form factors including CFast, Compact Flash, SD and USD. Flash technology from the latest TLC to MLC and SLC are all available. Tekdis caries stock of many of the popular models and can offer stable supply with “fixed BOM” option. To find out more or to have the right embedded storage solution for you system please contact our sales/technical team to discuss.
-
470K 2.5" SATA SSDs$85.00128GB/256GB/512GB/1TB/2TB/4TB 2.5" SATA SSDs SATA III 6Gb/s 3D NAND DRAM
Hardware Features:
- Compliant with RoHS 2.0 standards
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
- Promised operational reliability in an extended temperature range (from -20°C to 75°C)
- Supports Transcend Scope Pro software
-
MTS970P SATA III M.2 PLP SSDTranscend's MTS970P M.2 SSD combines Power Loss Protection (PLP) with a SATA III 6Gb/s interface, 3D NAND technology at 112 layers, and various durability features for enhanced storage efficiency and reliability in mission-critical applications.
Key Features:
- Compliant with RoHS 2.0 standards
- Space-saving M.2 form factor (80mm) – ideal for mobile computing devices
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Loss Protection (PLP) to prevent data loss in the event of a sudden power outage
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
-
PSD330 2.5" PATA SSDsOffers high-speed UDMA Mode 6, and offers installation flexibility for desktops, laptops or portable devices built around the 2.5" PATA (IDE) storage device standard
Key Features:
- Based on Ultra DMA Mode 4
- Built-in ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Static Data Refresh
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- Security Command
- Compliant with RoHS 2.0 standards
- MLC NAND flash
-
SSD910T 2.5" SATA & PATA SSDLightning-fast, reliable 2.5" Enterprise SSD for data centres and high-performance servers
Key Features:
- Compliant with RoHS standards
- DRAM Cache embedded
- High-quality 3D NAND flash
- Power Loss Protection (PLP) to prevent data loss in the event of a sudden power outage
-
UTE210T U.2 SSDPCIe Gen 4x4 interface, 112-layer 3D NAND flash, Power Loss Protection (PLP)
Key Features:
- Compliant with RoHS 2.0 standards
- Compliant with NVM Express specification 1.4
- Compliant with PCI Express specification 4.0
- PCIe Gen 4 x4 interface
- DDR4 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Loss Protection (PLP) to prevent data loss in the event of a sudden power outage
-
SSD470P & SSD470P-I 2.5" SATA SSDsPower Loss Protection (PLP) SSD, SATA III 6Gb/s interface and 112-layer 3D NAND flash
-
MTE662P & MTE662P-I PCIe M.2 SSDsPCI Express (PCIe) Gen 3 x4 interface, compatible with NVM Express (NVMe) 1.3, 3D NAND technology
-
MSA452P mSATA SSDsSATA III 6Gb/s MSA452P mSATA SSD -20°C to 75°C
Key Features:
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Security Command
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
- Power-saving DevSleep (Device Sleep) mode
- Compliant with RoHS 2.0 standards
- Compliant with JEDEC MO-300A
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Power Loss Protection (PLP) to prevent data loss in the event of a sudden power outage
-
MTS952P & MTS952P-I SATA III M.2 SSDsSATA III 6Gb/s interface 3D NAND technology -20°C to 75°C
Key Features:
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Power-saving DevSleep (Device Sleep) mode
- Compliant with RoHS 2.0 standards
- Space-saving M.2 form factor (80mm) – ideal for mobile computing devices
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Power Loss Protection (PLP) to prevent data loss in the event of a sudden power outage
- Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available
- Supports Transcend Scope Pro software
-
MTE672A PCIe M.2 SSDPCIe M.2 SSD 112-layer 3D NAND flash and a PCI Express (PCIe) Gen 3 x4 interface
Key Features:
- Compliant with RoHS 2.0 standards
- Compliant with NVM Express specification 1.3
- Compliant with PCI Express specification 3.1
- Space-saving M.2 form factor (80mm) – ideal for mobile computing devices
- PCIe Gen 3 x4 interface
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Promised operational reliability in an extended temperature range (from -20°C to 75°C)
-
SSD470A 2.5" SATA SSDs2.5" SSD SATA III 6Gb/s interface and 112-layer 3D NAND flash
Key Features:
- Compliant with RoHS 2.0 standards
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Promised operational reliability in an extended temperature range (from -20°C to 75°C)
-
MSM362M & MSM362I mSATA mini SSD16/32/64/128GB mSATA mini SSD
Key Features:
- Compliant with RoHS 2.0 standards
- Compliant with JEDEC MO-300B
- MLC NAND flash
- Supports Transcend Scope Pro software
- Promised operational reliability in a wide temperature range (from -40° to 85°C)
- Built-in BCH ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
-
MTE460T & MTE460T-I PCIe M.2 SSDs128GB/256GB/512GB/1TB PCIe M.2 SSD PCIe Gen 3x2 112-layer 3D NAND flash
-
SSD550I 2.5" SATA SSD40GB/80GB/160GB/320GB/640GB/1280GB 2.5" SATA SSD 112-layer 3D NAND flash SLC Mode technology
-
MTS210I SATA III M.2 SSD40GB/80GB/160GB/320GB SATA III M.2 SSD 6Gb/s 112-layer 3D NAND flash built-in DRAM cache
-
MTS260I SATA III M.2 SSD40GB/80GB/160GB/320GB/640GB/1280GB SATA III M.2 SSD 6Gb/s 112-layer 3D NAND flash built-in DRAM cache
-
MTS200I SATA III M.2 SSD20GB/40GB/80GB/160GB/320GB SATA III M.2 SSD 112-layer 3D NAND flash and SLC Mode technology
-
MTE560I PCIe M.2 SSD80GB/160GB/320GB/640GB PCIe M.2 SSD PCIe Gen 4x4 interface 112 layers of 3D NAND flash SLC Mode technology
-
MTS970T & MTS970T-I SATA III M.2 SSD$70.00128GB/256GB/512GB/1TB/2TB/4TB SATA III M.2 SSD 112 layers of 3D NAND flash 30µ" gold finger
-
MTE720T PCIe M.2 SSD512GB/1TB/2TB/4TB PCIe M.2 SSD 112-layer 3D NAND flash PCIe Gen 4x4 compatible with NVM Express
Tekdis offers custom built solutions for your application
Tell us what you need
