Panel PC & HMI

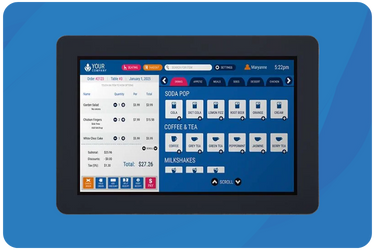

Panel PCs integrate computing power, display with touch technology into a single unit allowing easy installation and management of systems.
Whether it is to provide a visual/touch interface to deliver important information, capture the audience’s attention, or to create a better and more engaging experience for operators/customers - Panel PCs provide a great solution.
Panel PCs have many applications in Industrial Automation, System HMI, healthcare - see Medical Grade Panel PCs, building automation and Digital Signage.
Panel PCs are available with various levels of processing and screen sizes ranging from 6.5” to 32”. Depending on the install environment the IP rating of the unit and touch technology to suit the application should be carefully selected. Ie. Food processing may require a fully IP65 rating on all sides.
We have one of the biggest range of Fanless Wide Screen Panel PCs and Industrial Touch Screen Panel PCs in Melbourne and Sydney. Our options include the Avalue OFT series, IEI Integration AFOLUX range, Axiomtek and APLEX ruggedised units including models with stainless steel housings. Some models including the Gen III AFOLUX series and OFT models from Avalue can be powered via Power-Over-Ethernet making the installation even more cost effective.
To complement this we can configure systems with RAM and storage to suit and integrate LTE and WLAN modules and image with customer operating system images.
Explore our wide selection to find one that meets your requirements or contact our team today to find out the best solution and pricing.
-
AFL3-08A-BT - 8.4" J1900 Panel PC8.4” 450cd/m² SVGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz
-
AFL3-12A-AL - 12" Celeron POE Panel PCIntel® Celeron® J3455 (quad core , 1.5GHz up to 2.3 GHz)
-
AFL3-12A-BT - 12.1" Celeron Panel PC12.1” 500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz
-
AFL3-12C-ULT3 - 12" Celeron Panel PCIntel® Core™ i5 and Celeron® ULT Processor
-
AFL3-W07A-AL - 7" Celeron POE Panel PCIntel® Celeron N3350
(2M Cache, up to 2.4 GHz) TDP 6W -
AFL3-W07A-BT - 7" Wide Celeron Panel PC7" 500cd/m2 1024x600 HD fanless panel PC with Intel Celeron N2807 dual core 1.58 GHz
-
AFL3-W10A-AL - 10" Wide Celeron POE Panel PCIntel® Celeron® J3455 (quad core , 1.5GHz up to 2.3 GHz)
-
AFL3-W10A-BT - 10" Wide Celeron Panel PC10.1” 350cd/m² 1280x800 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz
-
AFL3-W15A-AL - 15" Celeron POE Panel PCIntel® Celeron® J3455 (quad core , 1.5GHz up to 2.3 GHz)
-
AFL3-W15A-BT - 15" Wide Celeron Panel PCWide 15.6” 400 cd/m² 1366 x 768 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz
-
AFL3-W15C-ULT3 - 15" Wide Panel PCWide 15.6” 400 cd/m² 1366 x 768 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz
-
AFL3-W19A-AL - 18.5" Celeron J3455 CPUIntel® Celeron® J3455 ( quad core , 1.5GHz up to 2.3 GHz)
-
AFL3-W19C-ULT3 - 15" Wide Celeron Panel PCIntel® 14nm 6th Generation Mobile Celeron® 3955U (15W) on-board Processor or Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor
-
AFL3-W19C-ULT5 - 8th gen Whiskey Lake CPUWide 18.5”250 cd/m² 1366x768 Panel PC with Intel® 14nm 8th Whiskey Lake Core™ i5-8365UE (15W) on-board Processor (ULT) , POE option , 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,1*4GB DDR4 RAM , with AG, R10
-
AFL3-W22C-ULT3 - 21.5" Fanless 6th gen Celeron 3955U/i5-6300UIntel® Core™ i5 and Celeron® ULT Processor
-
AFL3-W22C-ULT5 - 21.5" 8th gen i5 CPUWide 21.5”250 cd/m² 1920x1080 Panel PC with Intel® 14nm 8th Whiskey Lake Core™ i5-8365UE (15W) on-board Processor (ULT) , POE option , 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,1*4GB DDR4 RAM , with AG, R10
-
AUPS RANGEDC UPS Module, VESA mount - 75x75 or 100x100mm, Management via ethernet, Dual power input mode
-
GOT107W-319 7" Fanless Touch Panel PC7" WSVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3350 or Intel® Pentium® Processor N4200 Features
-
GOT110-316 10.4" Fanless Touch Panel PC10.4" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3350 or Intel® Pentium® Processor Qaud Cores N4200
-
GOT110-316-PoE-PD - 10.4" Fanless Panel PC10.4" XGA TFT Fanless Touch Panel Computer Celeron® N3350, POE device
-
GOT115-319 - 15" Celeron or Pentium CPU Panel PC15" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3350 or Intel® Pentium® Processor N4200
-
GOT3126T-834 12.1" fanless panel PC E382712.1" XGA TFT Extended Temp. Fanless Touch Panel Computer with Intel® Atom® Processor E3827 (-20°C to +55°C) Features
-
GOT3157W-834-PCT 15.6" WXGA Fanless Panel PC J190015.6" WXGA TFT Fanless Multi-touch Panel Computer with Intel® Celeron® Processor J1900 (-10°C to +50°C)
-
GOT3157W-881-PCT 15.6" Fanless i series PPC15.6" WXGA TFT Fanless Multi-touch Panel Computer with LGA1150 Socket 4th Gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® Processors (0°C to +40°C)
