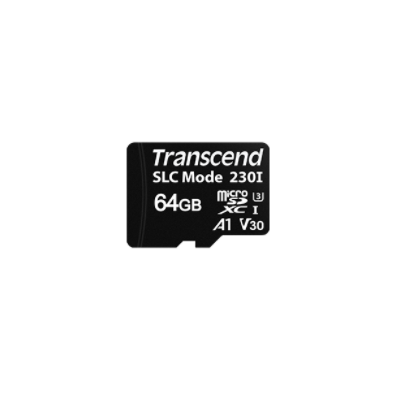

SDXC230I - microSDHC

In stock
SDXC230I - microSDHC
Brand: Transcend

The industrial-grade microSDHC/SDXC230I cards offer wide temperature tolerance (-40°C to 85°C) for industrial use. These cards are the ideal solution for small form factor and write-intensive applications such as medical devices, surveillance systems, and POS terminals.


Enquire Now
Enquire about this product

High-quality 3D NAND flash and SLC mode for exceptional endurance and reliability

Compliant with Speed Class 10

Compliant with Video Speed Class 30 (V30)

Compliant with SD specification 3.01 (2~4GB) and 5.1 (8~64GB)

Built-in ECC (Error Correction Code) functionality

Global Wear-Leveling and Block management for reliability

Enhanced S.M.A.R.T. function for durability

Compliant with RoHS 2.0 standards

This product is listed in SSD & Storage, Digital Signage, Industrial Automation, Gaming, Mining, Medical, Transport


Dimensions 11 mm x 15 mm x 1 mm (0.43" x 0.59" x 0.04")
Form Factor
  • microSD flash card


Flash Type
  • 3D NAND flash (SLC mode)
  • 2 GB/
  • 4 GB/
  • 8 GB/
  • 16 GB/
  • 32 GB/
  • 64 GB

Operating Environment

Operating Voltage
  • 2.7V ~ 3.6V
Drop Test
  • 1.5m free fall
Operating Temperature
  • Wide Temp.
    -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
Humidity 0% ~ 95%
  • Acceleration: 490 m/s² (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s)
Vibration (Operating) 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)


Power Consumption (Max.) 0.2 watt(s)


Read Speed (Max.) 100 MB/s
Write Speed (Max.) 70 MB/s
Terabytes Written (Max.) 5,800 TBW
  • Speed may vary due to host hardware, software, usage, and storage capacity.


  • CE/
  • FCC
  • Three-year Limited Warranty
Warranty Policy
  • Please check for more information about the Transcend Warranty Policy.
  • Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
