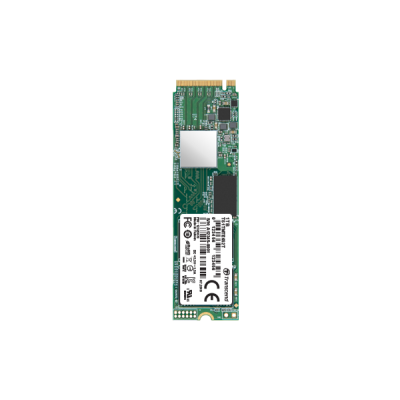

M.2 SSD MTE652T

In stock
SKU:
M.2 MTE652T
Brand: Transcend

MTE652T – PCIe Gen 3 x4 M.2 SSD

Power Supply: 3.3V±5%

Fully compatible with devices and OS that support the PCIe Gen 3 standard

Compliant with M.2 standards




Enquire Now
Enquire about this product:

MTE652T – PCIe Gen 3 x4 M.2 SSD

·         3D TLC used

·         PCIe Gen 3 interface, up to 4 lanes

·         Compliant with PCI Express specification Rev. 3.1

·         Compliant with NVM Express specification Rev. 1.3

·         Supports NVM command

·         SLC caching technology

·         RAID engine

·         LDPC ECC algorithm

·         Feature a DDR3 DRAM cache

·         Dynamic thermal throttling

·         Supports Transcend SSD Scope Pro

·         RoHS compliant


This product is listed in Industries
Dimensions 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight 9 g (0.32 oz)
Form Factor
  • M.2
M.2 Type
  • 2280-D2-M

Interface

Bus Interface
  • NVMe PCIe Gen3 x4

Storage

Flash Type
  • 3D TLC NAND flash
Capacity
  • 64 GB/
  • 128 GB/
  • 256 GB/
  • 512 GB/
  • 1 TB

Operating Environment

Operating Voltage
  • 3.3V±5%
Operating Temperature
  • Standard
    0°C (32°F) ~ 70°C (158°F)
  • Wide Temp.
    -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
Humidity 5% ~ 95%
Shock
  • 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 3 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency)
Vibration (Non-operating) 5 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency)

Power

Power Consumption (Operation) 3.5 watt(s)
Power Consumption (Sleep) 0.6 watt(s)

Performance

Sequential Read/Write (ATTO, max.) Read: 1700 MB/s
Write: 1600 MB/s
Sequential Read/Write (CrystalDiskMark, max.) Read: 1700 MB/s
Write: 1600 MB/s
4K Random Read/Write (IOmeter, max.) Read: 165,000 IOPS
Write: 125,000 IOPS
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Terabytes Written (Max.) 2,160 TB
Drive Writes Per Day (DWPD) 2 (3 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

Warranty

Certificate
  • CE/
  • FCC/
  • BSMI
Warranty
  • Three-year Limited Warranty
