Industrial Computing Solutions:
Industrial Computers are designed to offer high reliability and long term availability in various form factors. Industrial Computing solutions include System on Modules (SOMs) to Motherboard to Embedded Box to Rack Mount computers.
Tekdis offers a wide selection of all form factors of industrial computers and can build complete solutions to suit customer requirements. We have the experience and know how to select the correct storage, communication modules (LTE, WLAN) and can license/image with operating systems prior to shipping.

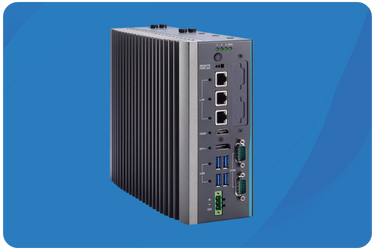

Some models have integrated Power-Over-Ethernet (POE) which can be used to connect to IP cameras or RFID readers. DIN Rail mounting is also common as it allows easy mounting into cabinets and routing of cables.
AI processing is becoming popular and Tekdis can offer different levels of processing to suit. Units with built in Jetson or Xavier modules to MXM based Nvidia GPUs or PCIe expandable are available.
Industrial Computing is found is just about every industry from industrial automation, speed cameras, machine vision, digital signage to emergency service fleets.
If you need assistance to find an Industrial Computing solution that best suits your requirements, get in touch with our team today.
223 Results Shown
Agent200-FL-DC - i.MX 6UltraLite, 4x input/output
Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor,
1 COM, 1 LAN, DIO (4-in/4-out) and Optional CANbus
Agent336 - i.MX 8M, embedded Linux/Android O/S
Fanless i.MX 8M Processor, Power Design with ACC Ignition, and E-Mark Certification for Vehicle Box PC
AIE100-903-FL - NVIDIA Jetson Nano CPU
Fanless Edge AI System with NVIDIA® JETSON™ Nano SoM, 1 HDMI, 1 GbE LAN, 1 GbE PoE and 2 USB
AIE100-903-FL-NX - NVIDIA Jetson Xavier NX SoM
Fanless Edge AI System with NVIDIA® JETSON™ Xavier NX SoM, 1 HDMI, 1 GbE LAN, 1 GbE PoE and 2 USB
AIE500-901-FL - NVIDIA Jetson TX2, NVIDIA Pascal GPU
Fanless Edge AI System with NVIDIA® JETSON™ TX2 Series SoM, 1 HDMI 2.0, 2 GbE LAN and 2 USB
AIE900-902-FL - Fanless Edge AI System Jetson AGX Xavier™ 4 x POE
Fanless Edge AI System Jetson AGX Xavier™ 4 x POE
ATEX/C1D2 Certified DIN-rail Fanless Atom® x5-E3930
ATEX/C1D2 Certified DIN-rail Fanless Intel Atom® x5-E3930 Processor, Isolated COM, LAN and DIO
AX61120TB - 1U Rackmount Chassis
PICMG 1.3 SBC structure with 2 expansion slots
Internal two 3.5" HDD drive bays
Slim-line CD-ROM disk bay for ease of system installation
Special cooling system design for supporting Intel® Pentium® 4 processor
AX61223TM - 2U ATX/Micro ATX/Mini-ITX
- Front-accessible 3.5", 5.25" HDD and one slim CD-ROM bay
AX92324 - 2-port 10GbE PoE PCI Express Card
2-port 10GbE PoE PCI Express Card
CAPA13R - AMD RYZEN embedded V1807B APU
3.5” Embedded SBC with AMD® RYZEN™ Embedded V1807B/V1605B APU, DisplayPort, 2 HDMI, LVDS and 4 GbE LAN
CAPA310 - Atom E3940 CPU
3.5” Embedded SBC with Intel® Atom® x5-E3940 Processor, LVDS, HDMI, 2 GbE LANs and Audio
CAPA311 - Atom E3940 CPU
3.5" Embedded SBC with Intel® Atom® x5-E3940 Processor, HDMI, LVDS, 2 GbE LAN and Audio
CAPA312 - Pentium N4200/Celeron N3350
3.5" Embedded SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350, HDMI/LVDS, Dual LANs and Audio
CAPA313 - Pentium N4200/Celeron N3350
3.5” Embedded SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350, LVDS, HDMI, 2 GbE LANs and Audio
CAPA315 - Pentium N4200/Celeron N3350 CPU
3.5” Embedded SBC with Intel® Pentium® N4200 & Celeron® Processor N3350, eDP, 2 HDMI, 2 GbE LANs and Audio
CAPA318 - Pentium N4200/Celeron N3350
3.5" Embedded SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350, VGA/LVDS, Dual LANs and Audio
CAPA500 - 7th gen LGA1151 socket CPU
3.5" Embedded SBC with LGA1151 Socket for 7th/6th Gen Intel® Core™ i7/i5/i3 Processor, LVDS, VGA, HDMI, 2 GbE LANs and Audio
CAPA520 - 9th gen series CPU SBC
3.5” Embedded SBC with LGA1151 Socket 9th/8th Gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® Processor, DisplayPort, HDMI, LVDS and 3 GbE LAN
CAPA840 - Atom E3845/E3827 CPU
3.5" Embedded SBC with Intel® Atom® Processor E3845/E3827, LVDS/VGA/HDMI, Dual LANs, Audio and ZIO
CAPA841 - Atom E3845/E3827 CPU
3.5" Embedded SBC with Intel® Atom™ Processor E3845/E3827, LVDS/VGA/HDMI, Dual LANs and Audio
CAPA842 - Celeron J1900/N2807 CPU
3.5" Embedded SBC with Intel® Celeron® Processor J1900/N2807, LVDS/VGA/HDMI, Dual LANs and Audio
CAPA843 - Celeron J1900 CPU
3.5" Embedded SBC with Intel® Celeron® J1900 Processor, LVDS/VGA/HDMI, Dual LANs, Audio and ZIO
CAPA848 - Celeron N2807 CPU
3.5" Embedded SBC with Intel® Celeron® Processor N2807, LVDS/VGA/HDMI, LAN and Audio
Embedded PCs are high reliability PCs offering a range of interfaces and form factors to suit different applications. An embedded computer is a microprocessor or microcontroller-based system that is specially designed to perform specific functions. Belonging to a larger system, embedded computers come in a combination of hardware and software. They are found in many daily-used objects, including cell phones, cameras, automotive systems, etc.
Whether it is a DIN Rail mount, Fanless box PC or 19” Rack mount unit Embedded PCs provide peace of mind computing in the harshest environments. We have one of the biggest range of Embedded PCs in Melbourne and Sydney. Our options include the models from Axiomtek, IEI Integration and Nexcom Mobile PCs
Embedded Single Board Computers (SBCs)
Embedded Single Board Computers (SBCs) are available in a range of form factors, CPU and IO options to suits a wide variety of applications. Ranging from the smallest PICO to ATX are built with IO connectors direct to the PCB.
COM Express, SMARC and Q7 sized System on Modules (SOMs) are designed to plug into a carrier board via a high density connector and the IO are then provided from the carrier board. PICMG are suitable for backplane based designs in rack systems.
Rackmount IPC chassis
Tekdis has Rackmount IPC chassis and IPC enclosure ranging from 1U to 6U. The rackmount server chassis is built for systems requiring slot expansion and for supporting rackmount installation.
1U RACKMOUNT CHASSIS
2U RACKMOUNT CHASSIS
4U RACKMOUNT CHASSIS
6U RACKMOUNT CHASSIS
Types of CPU
ARM Processors have a RISC architecture that typically require fewer transistors than those with a complex instruction set computing architecture such as the x86 processors found in most personal computers. The reduced transistors means lower cost, lower power consumption and heat dissipation. These features make it attractive for light, portable, battery-powered devices—including smartphones, laptops and tablet computers, and other embedded systems. Tekdis has a variety of ARM based modules and single board computers supporting Linux and Android OS to suit various applications.
AMD and Nvidia offer alternative CPU and GPU solutions to the Intel range of x86 CPUs and chipsets. AMD has high performance GPU solutions for demanding graphics applications including digital signage and gaming. Nvidia are a leading supplier of embedded AI processors ranging from the NANO, TX2 and Xavier modules. GPU options in MXM and PCIe card format offer the highest level of AI processing ranging from 1050, 1080, RTX2080, Tesla and Quadro models. Nvidia GPUs are popular for Robotics, Advanced Driver Advisory System (ADAS), License Plate Recognition (LPR) and Intelligent Machines.
Intel Atom is a type of Intel’s processor. It belongs to the family of x86 and x86-64 processors. Atom processors are mostly intended for use in compact and small devices such as smartphones, tablets, and mobile Internet devices. Celeron and Pentium processors enable the next level of performance yet still offering economical hardware and Windows IOT licensing. Celeron and Pentium processors offer a significant level of graphics performance making them well suited to single screen digital signage and other GUI based applications.
Core i3 processors have two cores, Core i5 CPUs have four-six cores and Core i7 models can have up to 8 cores. The higher the CPU number the higher the clock speed and hence performance. There are other differences in amount of cache and type of interfaces from the associated chipsets. I3 CPUs are targeted and economical applications, i5 are mid-tier and i7 are highest spec. Applications requiring extensive processing, decoding and graphics performance will require an i5 or i7 CPU. I3 and i5 require Windows IOT Value license while i7 CPU requires a High End License. Applications range from mobile computing, digital signage, industrial automation and security.
Xeon is an Intel brand of x86 microprocessors targeted at the non-consumer workstation, server, and embedded applications. Xeon processors continue to provide the pinnacle of x86 processing with the highest number of cores and clock speeds. Xeon processors support error checking and correcting memory so are more stable and less prone to data corruption due to memory errors.
Brands used for Embedded PCS/Computers
Tekdis offers a range of embedded computing boards from respected Taiwanese manufacturers Axiomtek and IEI Technology. Since 1990, Axiomtek is a leading design and manufacturing company in the industrial computer and embedded field. Their product lines include embedded board, system on module, single board computer, embedded system, industrial barebone, network appliance, touch panel computer, human machine interface, medical PC, industrial network, and digital signage. IEI Technology’s products are applied in computer-based applications such as factory automation, computer telephony integration, networking appliances, security, systems, and in fields like AI, IoT (Internet of Things), national defence, emergency services, transportation, communication base stations and medical instruments.
Features of Industrial Computing
8th/9th GEN CPU
Core series embedded motherboards are currently being offered with 8th and 9th Generation CPUs. These offer the highest clock speed and IO options in a range of i3, i5 and i7 models.
9~36VDC Vehicle Use
Embedded PCs that are deployed in mobiles applications or in battery backed environments have to operate from a wide input voltage. The most common option is 9~36VDC which covers most automotive and industrial installs.
Nvidia are a leading supplier of embedded AI processors ranging from the NANO, TX2 and Xavier modules. GPU options in MXM and PCIe card format offer the highest level of AI processing ranging from 1050, 1080, RTX2080, Tesla and Quadro models. Nvidia GPUs are popular for Robotics, Advanced Driver Advisory System (ADAS), License Plate Recognition (LPR) and Intelligent Machines.
Artificial Intelligence (AI) is a rapidly developing market where computing solutions make human like intelligent decisions based on video and other complex data streams. AI processing generally requires FPU/GPU to handle the large number of calculations efficiently. AI applications include machine learning, License Plate Recognition, Advanced Driver Assistance Systems (ADAS), Driverless vehicles and robotics. Tekdis has experience with various levels of Nvidia AI hardware ranging from TX2, Xavier to RTX, Tesla and Quadro series.
Fanless PCs are critical for installations with any level or dust or dirt. By removing the fan the cooling of the PC is dissipated by conduction through the case or air flowing over the unit. Fanless PCs allow silent operation and less moving parts meaning higher reliability. Fanless PCs are popular for digital signage, industrial automation, mobile computing and medical applications. Tekdis continues to expand our fanless range with new models with the latest CPUs, interfaces and level integration.
Embedded computers can be provided with various levels of Ingress Protection (IP) to suit different applications. IP67 is required for systems that are exposed to high levels of dust and water. IP67 allows no ingress of dust and immersion in 1m of water for 30 minutes. Systems that require IP67 include abattoirs, mining, military and traffic control.
Embedded PCs are commonly categorised by their formfactor and mounting method. The most common format is a “Box” PC but Tekdis also offered DIN Rail mount and Rack mount embedded PCs. Box PCs are can be deployed in any application including cabinet enclosures, vehicles, digital signage displays or any industrial application.
Controller Area Network (CAN bus) is a robust serial vehicle bus standard designed to allow microcontrollers and devices to communicate. CAN bus is popular in automotive and robotic applications. Tekdis offers mPCIe, M.2 and PCIe CAN bus controller cards which support various protocols – J1938, ODB II along with host drivers conforming to OPENCAN and SocketCAN.
The 1U rack chassis is a popular options for systems requiring the installation of single expansion cards, storage. Tekdis offers a range of 1U rack chassis which support a wide range of backplanes and processor cards.
The 2U rack chassis is a popular options for systems requiring the installation of multiple expansion cards, storage. Tekdis offers a range of 2U rack chassis which support a wide range of backplanes and processor cards.
The 4U rack chassis is a popular options for systems requiring the installation of multiple expansion cards, storage. Tekdis offers a range of 4U rack chassis which support a wide range of backplanes and processor cards.
To find out more about the solutions we offer, please contact our team directly.
