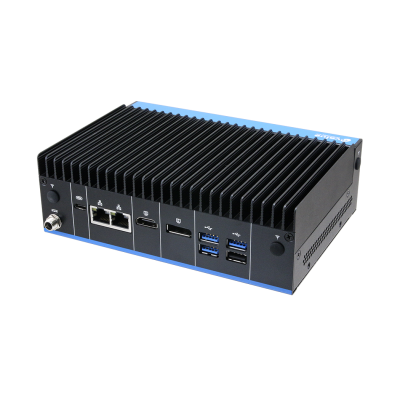

EPC-RPU 13th Gen Core Fanless Compact System
13th Gen Intel® Raptor Lake-P Fanless Compact System
Key Features:
- Intel® 13th Gen Raptor Lake-P Core™ Processor
- Intel® Iris® Xe / UHD Graphics for 13th Gen Intel® Processors
- One SO-DIMM Socket, Max. Up Max. up to 32GB DDR5 5200
- Triple Display, HDMI 2.0, DP 1.4 , USB Type C (Support DP)
- Dual Intel® 2.5 Gigabit Ethernet
- Triple Storage , 2.5" Drive Bay, M.2 Key B, Key-M (NVMe)
- Support TPM2.0, RAID 0/1, Wall Mount
- 12-24V DC Wide Range Power Input
The EPC-RPU is a fanless, compact computing system powered by Intel's 13th Generation Raptor Lake-P Core™ processors, designed for industrial and embedded applications. It offers processor options, including the Intel® Core™ i5-1335UE and i3-1315UE, both with a 15W thermal design power, ensuring efficient performance. The system supports Intel® Iris® Xe or UHD Graphics, providing enhanced visual capabilities suitable for various display requirements.
Equipped with a single SO-DIMM socket, the EPC-RPU supports up to 32GB of DDR5 4800MHz memory, facilitating smooth multitasking and data processing. It supports triple display output through HDMI 2.0, DisplayPort 1.4, and USB Type-C with DisplayPort support, offering versatile connectivity for multiple monitors. Networking capabilities include dual Intel® 2.5 Gigabit Ethernet ports, ensuring high-speed and reliable network connections.
The system provides multiple storage solutions, including a 2.5" drive bay, M.2 Key-B, and M.2 Key-M (NVMe), accommodating various storage needs. Security and reliability are enhanced with support for TPM 2.0 and RAID 0/1 configurations. Designed with a 12-24V DC wide-range power input, the EPC-RPU offers flexibility for diverse industrial environments. Its rugged, fully integrated, and ultra-thin design, along with expandable I/O interfaces and high-speed connectivity, makes it ideal for IoT applications and deployment in space-constrained settings.
System Information
-
Processor
Intel® Core™ i5-1335UE Processor (15W)
Intel® Core™ i3-1315UE Processor (15W) -
System Memory
1 x 262-pin SO-DIMM socket Max. up to 32GB DDR5 4800MHz
-
I/O Chipset
EC iTE IT5782VG
-
BIOS Information
AMI BIOS, 256Mbit SPI Flash ROM
-
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
-
H/W Status Monitor
System temperature monitoring and Voltages monitoring
-
RAID
RAID 0/1 (SATA)
-
TPM
Onboard TPM 2.0 IC
-
SBC
ECM-RPL
Expansion
-
M.2
1 x M.2 Key-B 3042/3052/2242 (SATA3, USB3.0, w/SIM Card Slot)
1 x M.2 Key-M 2280(PCIe,Gen4x4)
1 x M.2 Key-E 2230(PCIe, USB2.0)
Storage
-
M.2
1 x M.2 Key-B 2242 (SATA3)
1 x M.2 Key-M 2280 (NVMe, PCIe Gen4 x 4) -
2.5 Drive Bay
1 x Internal 2.5 Drive Bay (7mm)
Front I/O
-
USB
2 x USB 2.0
-
Power Button
1 x Power Button
-
Reset Button
1 x Reset button
-
COM Port
2 x RS232/422/485
-
LED Indicator
1 x Power on/off LED
1 x Storage Access LED -
Audio
1 x Mic-in
1 x Line-out
Rear I/O
-
USB
3 x USB 3.2 Gen2
4 x USB 2.0
1 x USB Type C support DP/USB 3.2 Gen 1/PD 5V x 3A -
LAN Port
2 x RJ45
-
DP
1 x DP 2.1
-
HDMI
1 x HDMI 2.0b
-
Antenna
2 x Antenna Mounting with Dust Protection Cover
-
AC/DC Input
1 x Lockable DC Jack
Right I/O
-
Antenna
1 x Antenna Mounting with Dust Protection Cover
Left I/O
-
Antenna
1 x Antenna Mounting with Dust Protection Cover
Display
-
Graphic Chipset
Intel® Iris®Xe/UHD Graphics for 13th Gen Intel® Processors
-
Resolution
1 x DP 1.4: Max. 7680 x 4320@60Hz
1 x HDMI 2.0b: Max. 4096 x 2160@60Hz
1 x DP 1.4 (from USB Type C): Max. 4096 x 2304@60Hz
Audio
-
Audio Codec
Realtek ALC888S
Ethernet
-
LAN Chipset
2 x Intel® I226LM
-
Specification
2 x 10/100/1000/2.5G Base-Tx GbE compatible
Power Requirement
-
Voltage Input Spec.
Typical 12V/24V Power Input
-
Voltage Input Connector
Lockable DC Jack
-
ACPI
Single power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant -
Power Mode
AT/ATX (ATX is default setting)
-
Adapter
Input: 100 ~ 240Vdc/ 50 ~ 60Hz
Output: 12V/10A AC-DC 120W Adapter
Software Support
-
OS
Win10, Win11, Linux
Certification
-
Certification Information
CE, FCC, Class B, UKCA
Mechanical & Environmental
-
Operating Temp.
With extended temperature peripherals: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow
With 2.5” hard drive: 0°C ~ 40°C (32°F ~ 113°F) with 0.5m/s air flow -
Storage Temp.
-30~70C° (-22°F ~ 158°F)
-
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
-
Dimension (W x L x H)
177x 126 x 57mm (6.97” x 4.94” x 2.24")
-
Vibration Test
With SSD : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis
-
Shock Test
With SSD: 10 Grms, IEC 60068-2-27, Half Sine, 11ms
-
Drop Test
ISTA 2A, IEC-60068-2-32 Test: Ed, 1 Corner, 3 Edges, 6 Faces
-
Mounting Kit
Wall Mount Kit
EPC-RPU-I5E-A1-1R (i5-1335UE)
EPC-TGU-I3E-A1-1R (i3-1315UE)
