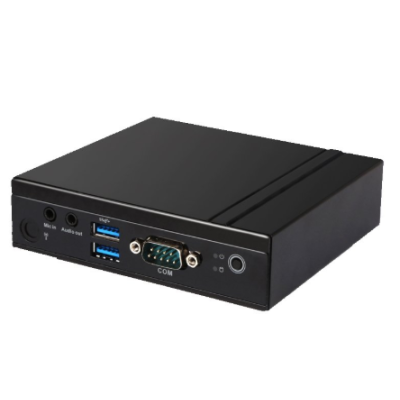

VM23 Celeron Fanless Signage Player
An ultra-compact, fanless digital signage player which can also be used as a thin client cloud terminal.
Key Features:
- Supports dual independent displays
- Fanless design
- Support Wi-Fi/BT module
- DP (Max.4096 x 2304 @60 Hz)
- HDMI (Max.3840 x 2160 @30 Hz)
- Intel Apollo Lake Celeron N3350/N3450 processors
- 4 x USB
Enquire Now
Enquire about this product:
VM23, an entry-level media player, supports the current quad-core Intel Apollo Lake Celeron N3450 processor (TDP: 6 watts). The latest Intel HD500 graphics offer a maximum 4K/UHD resolution of 4096 x 2160. With a DP and an HDMI port, the player can control two monitors independently.
Thanks to the fanless design and its slim dimensions of 116 mm x 107.2 mm x 30 mm, VM23 can be installed inconspicuously. The compact mini-PC is also widely used as thin clients in cloud applications.
Key Features:
- Fanless design
- Support Wi-Fi/BT module
- DP (Max.4096 x 2304 @60 Hz)
- HDMI (Max.3840 x 2160 @30 Hz)
- Intel Apollo Lake Celeron N3350/N3450 processors
| VM23 | VM23-F1-N345032E5G-GIA | ||
| Processor | CPU | Intel Celeron N3450 | |
| Frequency |
1.10 GHz (Up to 2.40 GHz )，2 Core 1.10 GHz (Up to 2.20 GHz )，4 Core |
||
| BIOS | AMI Source Code | ||
| Chipset | SOC | ||
| Memory | Type | DDR3L-1866MHz | |
| Socket | 2GB Onboard / 4GB Onboard | ||
| Max Size | 2GB / 4GB | ||
| Graphics | GPU | Intel® Gen9 Graphic engine | |
| Graphic Engine | DirectX 12.0, OpenGL 4.3, OpenCL 2.0 | ||
| DP | 1 x DP (Max.4096 x 2304@60Hz) | ||
| HDMI | 1 x HDMI (Max.3840 x 2160@30Hz) | ||
| Network | Controller | Realtek RTL8111H Gigabit Ethernet | |
| Interface | 1 x RJ45 | ||
| I/O | USB | 2x USB 3.0, 2x USB 2.0 | |
| Serial Port | 1 x RS232 | ||
| Audio | 1 x MIC-IN, 1 x AUDIO-OUT | ||
| Mini-PCIe | 1 x Full-size Mini-PCIe for mSATA | ||
| M.2 | 1 x M.2 (2230) for WiFi/BT | ||
| Storage | mSATA | 1 x Full-size mSATA | |
| eMMC | 32GB Onboard | ||
| JAHC Tech | WatchDog Timer | 0~255 Second Time Out Support | |
| Auto Power On | Power Activated Automatically Start | ||
| RTC | Set Up Independently Every day, A Week as a Cycle | ||
| Wake On Lan | Yes | ||
| Operation System | Windows | Windows 10(64-bit) | |
| Linux | Supported | ||
| Power | Power Type | DC-IN | |
| Input Voltage | 12V/2A | ||
| Mechanical | Dimensions (W × D × H) | 116.6mm x 107.4mm x 30mm(4.59"x4.23"x1.18") | |
| Fanless | Yes | ||
| Construction | Metal | ||
| Mounting(Optional) | Desk/Wall Mounting and VESA Mounting Kit (JT NUC-JC530) | ||
| Color | Black | ||
| Environment | Operating Temperature | 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow | |
| Relative Humidity | 95%@40℃ (non-condensing) | ||
| Certification | Certification | CE, FCC Class B, CCC | |
