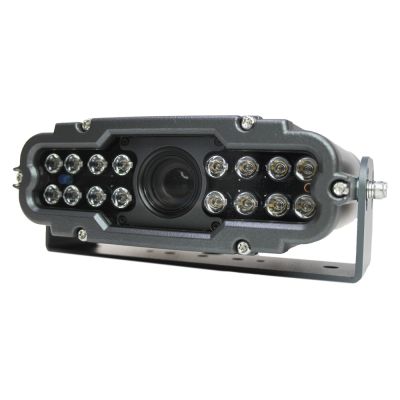

GPCL-1240MA4GN Motorized POE Global Shutter LPR Camera

In stock
Brand: GPI Korea

IP / Motorized Lens / Global Shutter / Outdoor / IP68 / 3.1MP

Enquire Now
Enquire about this product:

The GPCL-1240MA4GN is an outdoor infrared all-in-one motorised camera with a 3.19MP Global Shutter CMOS image sensor. It excels in low light conditions because it has the highest sensitivity sensor. Less storage space and network bandwidth are needed because it supports simultaneous H.265, H.264, and MJPEG video compression. Additionally, it provides 3MP (2048x1536) high-quality video images in progressive mode at 30 frames per second.

Key Features:

  • Ambarellaplatform –Backdoor Issue free
  • 1/1.8” 3.19MP Sony IMX265 Global Shutter CMOS sensor
  • Strobe-driven power LED (16EA)
  • 12~40mm Motorized Auto-Focus IR correction Lens
  • TripleStream (H.265, H.264, M-JPEG/JPEG)
  • Max. 30fps @ 3MP (2048x1536)
  • Night Color level adjustment (B/W & 5 steps)
  • Shutter limit (Min./Max.) setting
    • Good for the better nighttime moving object image
    • To avoid saturation under strong backlight or IR reflection
  • OnVIF(Profile S) standard
  • IP68 Grade Waterproof, Nitrogen filled In

This product is listed in Mobile Computing, Partners, Transport


System Ambarella 32bit Embedded Linux
256Mbyte SDRAM, 128Mbyte NAND Flash
Image Sensor /1.8” 3.19MP Sony IMX265 Global Shutter CMOS
Lens 12~40mm Motorized Auto-Focus Lens
Number of Effective Pixels 2064(H) x1554 (V) approx. 3.18M pixels
Video Streaming Triple Streaming, selectable: H.265/H.264/MJPEG, Framerate, Bitrate, ACBR/AVBR/VBR/CBR, GOP
Compression H.265, H.264, M-JPEG
Resolution 30fps @ 2048x1536, 1920x1080, 1280x1024, 1280x720
Max. Frame Rate 30fps, 25fps
Smart Video ROI (RegionofInterest)
Frequency Control 60hz, 50hz
Independent Image Mode Default/Night/DI/Motion independent mode set
Motion Detection On (144 block selection), Off
Day & Night Control Colour, B&W, Auto (Night B/W, Night colour 5 steps)
White Balance Auto/10 customized mode
Image Filter Brightness/Contrast/Hue/Saturation/Sharpness
DNR DNR 0~11
WDR Weight Low/Middle/High
Manual Shutter Control 1/30 ~ 1/32,000 Min/Max setting
Sense Up Level OFF/1/2threesteps
Image Direction VerticalFlip/HorizontalFlip/CorridorMode
Interface RJ45 Ethernet 10/100Mbps
Supported Protocols HTTP, RTP/RTSP (Uni/Multicast), TCP/IP (v4/v6),
PAP, CHAP, DHCP, NTP, SMTP client, uPnP&etc
Programming Interface ONVIF (ProfileS)
Viewer Browsers (Chrome, Edge, etc.), VLC…
Security IP Filtering, HTTPS, Encrypted & Basic Authentication,
Management White List
Operating Humidity 0~80% (non-condensing)
Operating Temperature -30℃~+70℃
Case Metal (AL)
IR Led 16 ea
IR Ledstrobe out (External) Optional [Active High (TTL3.3V)]
Power PoE (Standard 48V) or DC12V
Dimension 166mm(W) x 103.9mm(D) x 52mm(H)
