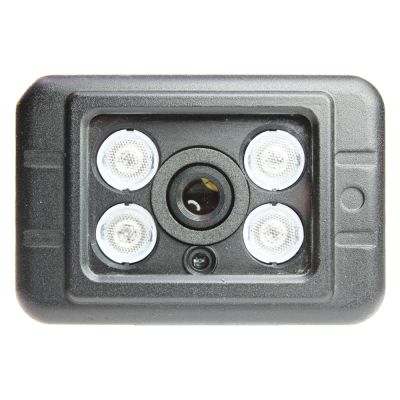

GPAL-0xxS4KR 8.4MP IP Single Lens Rolling Shutter LPR AI Camera
Single Lens Rolling Shutter, high-quality video image 30fps @ 8M (3840x2160)
Key Features:
- 64bit Quad Core RISC CPU
- 1.2Tops NPU (AI)
- Up to 30FPS@8M (3840x2160)
- 1/1.8” SONY Rolling Shutter
- CMOS Sensor
- Quadruple Streaming
- H.265, H.264, M JPEG, JPEG
- ONVIF Profile S, T
- Individual Day & Night camera setting
- Support PoE
- IP 68 rated
- Nitrogen filled in
Activate your exclusive AI-powered recognition software on the AI-Ready camera. This technology is a game-changer for law enforcement, parking management, and various authorities, offering them a more efficient way to investigate and resolve cases with precision and adaptability.
Enhance your system's IR illumination capabilities by harnessing the power of IR LEDs. This ensures optimal performance for detecting both reflective and non-reflective license plates. The camera's outdoor housing is not only rugged and compact but also nitrogen-filled and boasts an IP68 rating, making it impervious to the most challenging environmental conditions.
Featuring the most sensitive sensor, this camera excels in low-light situations, providing top-notch video quality at 30 frames per second with a resolution of
8 megapixels (3840x2160) in progressive mode.
|
CAMERA |
|
|
SoC |
EN675 |
|
Image Sensor |
8.4MP 1/1.8” SONY Rolling Shutter CMOS |
|
Lens |
2.8mm, 4mm, 6mm |
|
Image Sensor |
8.4MP 1/1.8” SONY Rolling Shutter CMOS |
|
Number of Effective Pixels |
8.4MP effective pixels |
|
Min. Illumination |
0.01 Lux |
|
Video Compression |
H.265, H.264, Motion JPEG, JPEG |
|
Video Resolution |
3840x2160,2560x1440, 1920x1080, 1280x1024, 1280x720, 704x480, 640x480, 320x240 |
|
Video Streaming |
Motion JPEG and H.264/265 Triple Streaming (Simultaneously) Additional JPEG streaming (total quadruple streaming) Independently Controllable frame rate and bandwidth |
|
Time Stamp |
Supported (Date/Time Only) in primary stream |
|
Simultaneous clients |
Live-cast for up to 16 clients |
|
Video Analytics |
Intrusion Detection, Line Crossing, Object Counting, Object Tracking, Tampering, General Detection, Abnormal Detection |
|
AI |
Object Detection (Humans/Vehicles/Bicycles etc.), Face Detection |
|
Noise Reduction |
2DNR, 3DNR |
|
NETWORK |
|
|
LAN interface |
10/100BaseT Ethernet auto-sensing |
|
Supported protocols |
HTTP, RTP/RTSP(Uni/Multicast), TCP/IP(v4/v6), UDP, FTP, Telnet, HTTPS, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPnP& etc |
|
ONVIF |
Profile S, T |
|
Web browsing |
Video access from a Web browser |
|
OPERATION ENVIRONMENTS |
|
|
Operating Humidity |
0~80% (non-condensing) |
|
Operating Temperature |
-20℃~ + 70℃ |
|
Power |
IEEE 802.3af, PoE, 48VDC (MAX 57VDC), |
|
Power Consumption |
up to 5.8W |
GPAL-028S4KR 8.4MP IP Single 2.8mm Lens Rolling Shutter LPR AI Camera
GPAL-040S4KR 8.4MP IP Single 4mm Lens Rolling Shutter LPR AI Camera
GPAL-060S4KR 8.4MP IP Single 6mm Lens Rolling Shutter LPR AI Camera
