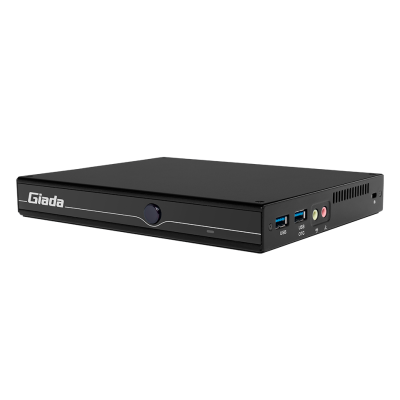

D77 Android 12 Media Player RK3588
High-performance ARM signage player with 4 Video Output with EDID
Key Features:
- Rockchip RK3588 processor
- 3 x HDMI (4096 x 2160 @60 Hz)
- 1 x HDMI (1920 x 1080 @60 Hz)
- 8GB RAM, 128GB eMMC Onboard
- Support hardware EDID
- Support Wi-Fi/BT module
- Support 3G/4G module
Rockchip RK3588 Processor
The ultra-compact Android player is powered by Rockchip RK3588 processor, which integrates quad-core Cortex-A76 and quad-core Cortex-A55. The 8nm chip is a high-performance, low-power, and cached application processor. Rockchip RK3588 integrated GPU, VPU, and NPU The built-in NPU supports INT4/INT8/INT16/FP16 hybrid operation and its computing power is up to 6TOPs.
4 Display Outputs
The player adopts ARM Mali-G610 MP4 GPU and has 4 HDMI display outputs. It supports hardware EDID and H.265/H.264/AV1/AVS2 etc. video decoder.
Supporting Android 12
D77 supports WiFi 5/6 + BT, 3G/4G, and a Gigabit Ethernet. The Android 12 player can be used in a variety of applications, such as digital signage, edge computing, kiosks, and other AIoT solutions.

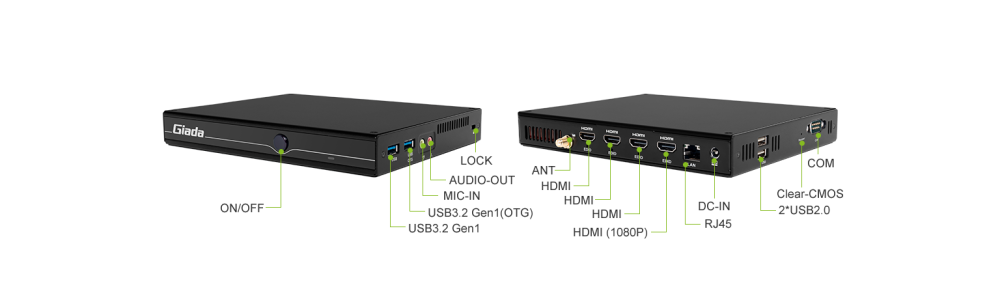

I/O port introduction
|
CPU |
CPU |
Rockchip RK3588
|
|
Frequency
|
2.40 GHz
|
|
|
Processing units
|
4 Cores Cortex-A76 & 4 Cores Cortex-A55
|
|
|
TDP |
15 W
|
|
|
Memory |
Size
|
8 GB,
|
|
Type |
Onboard 2-channel LPDDR4x |
|
|
Storage |
Onboard |
128 GB, Onboard eMMC 1 x M-key M.2 (2280) for PCIe3.0 X4 SSD (NVMe) |
|
Network |
Network Controller
|
1 x Realtek RTL 8211E Gigabit Ethernet
|
|
Ethernet Interface
|
1 x GbE RJ45
|
|
|
Wi-Fi/BT
|
1 x E-keyM.2(2230) for Wi-Fi/BT module,
Supporting Wi-Fi 5 /6
|
|
|
Mobile Network
|
1 x B-key M.2(3042) for 3G /4G
1 x SIM Slot
|
|
|
Display |
GPU
|
ARM Mali-G610 MP4 GPU
|
|
Graphic Engine
|
OpenGL ES 1.1/2.0/3.2, OpenCL 1.1/1.2/2.0, Vulkan 1.1/1.2
|
|
|
Multi-Media
|
H.265/H.264/AV1/AVS2 etc. video decoder, up to 8K@60fps 8K@30fps video encoders for H.264/H.265 |
|
|
Display Interface
|
3 x HDMI (Max. 4096 x 2160 @60 Hz)
1 x HDMI (Max. 1920 x 1080 @60Hz)
|
|
|
I/O interface |
USB |
1 x USB3.2 Gen1 (OTG), 1 x USB3.2 Gen1
|
|
Serial Port
|
1 x RS232
|
|
|
Audio
|
1 x MIC-IN, 1 x AUDIO-OUT
|
|
|
Button
|
1 x Power on, 1 x Recovery
|
|
|
Antenna
|
1 x Connector for Wi-Fi/BT
|
|
|
System |
Watchdog Timer |
Yes |
|
Auto Power On |
Yes |
|
|
RTC |
Set up independently every day, a week as a cycle |
|
|
Power Requirement |
DC-IN, 12 V/2.08 A |
|
|
Dimensions |
189.6mm x 148.3mm x 26mm (7.46” x 5.83” x 1.02”) |
|
|
Construction |
Metal, Black |
|
|
Operating System |
Android 12 |
|
|
Operating Temperature |
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow |
|
|
Humidity |
95% @ 45°C (non-condensing) |
|
|
Certifications |
CE, FCC Class B |
