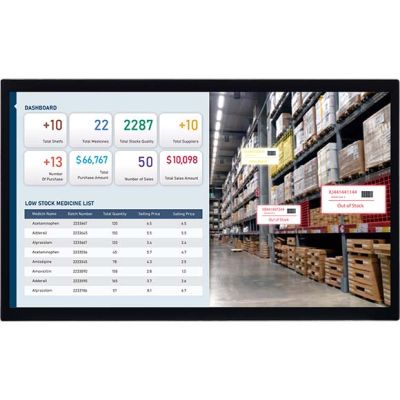

XPPC 24-200A 23.8” Fanless Panel PC IP65 Front 11th Gen CPU

In stock

SKU:

XPPC 24-200A-i3/i5

Brand: Nexcom

23.8” TFT FHD 16:9 Slim Bezel, Multi-touch screen Powered by 11th Generation Intel Core Processor

Key Features:

23.8” TFT FHD 16:9 panel
PCAP 10-point multi-touch with slim bezel design
IP65-rated front panel
Support: VESA/panel/open frame mount
11th Gen Intel® CoreTM processor (Tiger Lake UP3)
1 x 260-pin DDR4 SO-DIMM up to 32G
On-board M.2 2280 Key M PCIe x4 for storage module
Support power input 12 VDC

Enquire Now

Enquire about this product:

Name

Phone

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The fanless touchscreen computer XPPC 24-200A, featuring a 23.8” display, is powered by 11th Gen Intel® Core™ i7/i5/i3 processors (Tiger Lake UP3), providing outstanding graphics performance. With integrated Intel® Iris Xe graphics, the XPPC 24-200A delivers exceptional AI inferencing capabilities. Its compatibility with the Hailo-8 M.2 AI Acceleration Module makes it an ideal solution for AI-powered applications.

Furthermore, the XPPC 24-200A is equipped with a 10-point PCAP touchscreen, front IP65 protection, and an FHD wide-viewing-angle G series panel. Its slim profile and flexible mounting options make it well-suited for various industrial applications, including Service Robots, Smart Warehouses, Smart Cities, and Smart Pharmacies.

XPPC24-200A-i3 (P/N:10W30XPPC37X0)
23.8” FHD LED multi touchscreen computer, Intel® Core™ i3-1115G4E Processor, w/air bonding

XPPC24-200A-i5 (P/N: 10W30XPPC38X0)
23.8” FHD LED multi touchscreen computer, Intel® Core™ i5-1145G7E Processor, w/air bonding

Panel mount kit (P/N: 88W30XPPC00X0)

Open frame kit (P/N: 88W30XPPC01X0)

This product is listed in Industrial Automation

Specifications

Panel	LCD size: Innolux G-series 23.8”, 16:9 Resolution: Full HD 1920 x 1080 Luminance - LCD panel: 350cd/m2 - XPPC PCAP touch: 85% of panel’s luminance after air bonding Contrast ratio: 1000:1 LCD color: 16.7M Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R)
Touch Screen	10-Point PCAP (Projected Capacitive Touch) Air bonding Glass surface treatment: AS + AG
System	On-board 11th Generation Intel® Core™ i3-1115G4E processor, Dual Core, 2.2 GHz base frequency, 6M Cache (formerly tiger lake-UP3 ) - Intel® UHD graphics 630 on i3 processor On-board 11th Generation Intel® Core™ i5-1145G7E processor, Dual Core, 1.5 GHz base frequency, 8M cache - Intel® Iris® Xe graphics on i5 processor
Main Memory	1 x 260-pin DDR4 SO-DIMM, supports non-ECC, un-buffered memory up to 32G
Storage Device	1 x M.2 2280 Key M SSD (support PCIe x4)
Expansion	1 x M.2 2230 Key E, support optional WiFi modules
Rear I/O	1 x 12V DC Jack 2 x RJ45 Intel® Gigabit LAN port 1 x DP++ 1 x HDMI 2.0 4 x USB 3.0 1 x Line out 1 x RS232/422/485 LED for Power on/off Power switch
Front I/O	2 x Antenna hole
Mechanical	Color/material: black metal sheet Support - VESA mount 100mm x 100mm - Panel mount - Open frame
Environment	Vibration - IEC 68 2-64 - 2G @ sine, 5~500Hz, 1hr/axis - 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) Shock - IEC 68 2-27 - 20g peak acceleration (11 msec. duration) Temperature - Operating temperature: with 0.35 m/s air flow: 0°C~50°C - Storage temperature: -20°C~60°C Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90%
Dimensions	System: 557mm x 336.7mm x 55mm System weight: 5.8 kg Package: 650mm x 480mm x 170mm Package weight: 7.85 kg
Power Supply	1 x 96W AC/DC lockable adapter included in accessory Input: 100VAC to 240VAC Output: DC+12VDC
Certifications	CE (EN55035 + EN55032) FCC Class A (EMI part 15B) LVD (EN62368-1)
OS Support Lists	Windows 10 64-bit Linux

Downloads

Datasheet
