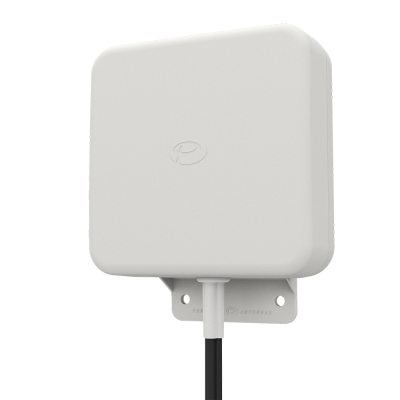

WMM4-7-49 4x4 MiMo Omnidirectional Wall / Mast Antenna
Provides a 4x4 MiMo solution for global 4G/5G networks from 698-960/1710-4900MHz
Key Features:
- 4×4 MiMo 4G/5G
- 698-960/1710-4900MHz
- Compact housing
- Wall or mast mounting
- Integrated low-loss coaxial cable
Enquire Now
Enquire about this product:
The WMM4-7-49 antenna provides a 4x4 MiMo solution for global 4G/5G networks from 698-960/1710-4900MHz. Incorporating four separately fed, ultra-wideband elements within an IP-rated compact housing, the WMM4-7-49 is suitable for a wide range of 4G Cat 18/20 and 5G fixed site and failover applications.
Key Features:
- 4×4 MiMo 4G/5G
- 698-960/1710-4900MHz
- Compact housing
- Wall or mast mounting
- Integrated low-loss coaxial cable
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 10 |
| Typical VSWR | <3:1 |
| Frequency Range | Gain | 698 – 960MHz | ; 1710 – 4900MHz | |
| Cellular LTE Elements | 4 x 4 MIMO |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | White |
| Length | 155 (mm) | 6.10 (in) |
| Width | 155 (mm) | 6.10 (in) |
| Height | 75 (mm) | 2.95 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 0.5 (m) | 1.64 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (LTE) | CS29 |
| TERMINATION DATA | |
| Connector (LTE) | N (f); FAKRA D; SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Wall |
| Mounting Methods | Mast; Wall; Pole |
| APPROVALS DATA | |
| IP Rating | IP55 |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G/4G; CBRS |
