Brand: Nexcom

VTC6232 Fanless 4 x PoE In-Vehicle Computer with Atom x7433RE

In stock
SKU:
VTC6232-C4S

Fanless 4-CH PoE In-Vehicle Computer with Intel Atom x7433RE

Key Features:

  • Intel Atom® processor quad core x7433RE, 1.5GHz
  • 4 x PoE (802.3 bt/af/at, max. total 90W)
  • Built-in u-blox-M9N GPS
  • Built-in CAN FD
  • E Mark conformity
  • 3 x expansion slot
  • Dual external storage (compatible with 15mm disk)
  • 1 x eMMC to run OS
  • Two video outputs, one VGA and one HDMI

Enquire Now
Enquire Now

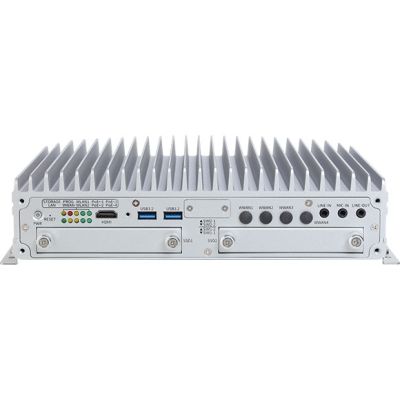

main product photo
We build to order

VTC 6232, based on the Intel Atom® quad-core processor x7433RE (up to 1.5GHz), specifically complies with stringent E-mark standards in a rugged, fanless, and compact mechanism. VTC 6232 provides complete communication capability between the vehicle and the computer with a built-in CAN FD interface. Equipped with intelligent power management, VTC 6232 can be woken up by ignition, RTC timer, or remotely through SMS message. VTC 6232 supports four 802.3bt/af/at PoE ports (maximum total 90W) to connect with IP cameras. The design with a 2.5” removable SSD and eMMC facilitates easy storage access. VTC 6232 maintains the flexibility to meet the demands of video surveillance in vehicle applications.


Specifications

CPU

  • Intel Atom® processor x7433RE 4 cores/1.5GHz (embedded)

Memory

  • 1 x DDR5 4800 SO-DIMM, default 8GB

Video Output

  • 1 x HDMI® 2.0 up to 4096 x 2160 @60Hz

  • 1 x VGA, up to 1920 x 1200@60Hz

Storage

  • 2 x 2.5” SATA 3.0 HDD/SSD tray, removable, 15mm

  • 1 x 64GB eMMC default for OS

Expansion

  • 1 x Mini PCIe slot (PCIe 3.0, USB 2.0), BOM optional M.2 3052 Key B (USB 3.2, USB 2.0)
    - Support LTE/5G NR module with 2 x external SIM

  • 1 x M.2 3042/3052 Key B (USB 3.2, USB 2.0)
    - Support LTE/5G module

  • 1 x M.2 2230 Key E (PCIe 3.0, USB 2.0), BOM optional mPCIe (PCIe 3.0, USB 2.0)
    - Support Hailo module

GNSS and Onboard Sensor

  • 1 x U-blox NEO-M9N GNSS for GPS/Glonass/QZSS/Galileo/Beidou

  • 3D accelerometer and 3D gyroscope

LAN and Power over Ethernet

  • 4 x 2.5GbE RJ45 PoE port, Intel® I226-IT (2 x 802.3 bt + 2 x 802.3 af/at), total up to 90W (PoE++1, PoE++2, PoE+3, PoE+4)

  • 1 x 2.5GbE RJ45 port, I226-IT

Security

  1. TPM 2.0, Infineon SLB9672VU2.0

I/O Interface-Front

  • 10 x LED indicator (including 1 x programmable LED)

  • 4 x Externally accessible nano-SIM card socket with cover

  • 2 x 2.5” removable SSD tray, removable, 15mm

  • 1 x Reset button

  • 1 x Power button

  • 2 x USB 3.2 Gen 2, Type-A

  • 1 x HDMI® 2.0

  • 1 x Mic in, 1 x Line out, 1 x Line in

  • 5 x SMA antenna

I/O Interface-Rear

  • 1 x 3-pin terminal block for 9V~48V DC

  • 4 x 2.5GbE RJ45 PoE port, Intel® I226-IT (2 x 802.3 bt + 2 x 802.3 af/at), total up to 90W (PoE++1, PoE++2, PoE+3, PoE+4)

  • 1 x 2.5GbE RJ45 port, I226-IT

  • 1 x VGA, up to 1920 x 1200@60Hz

  • 2 x COM port (DB9), supports RS-232/422/485

  • 4 x SMA antenna

  • 2 x USB 2.0 Type-A

  • 1 x DB15 (Multi1 Port)
    - 4 x DI with isolation
    - 4 x DO with isolation
    - 1 x GNSS Speed/Direction
    - Vin, GND for GPIO

  • 1 x DB15 (Multi2 Port)
    - 1 x RS-422/485
    - 1 x RS-232 (TX/RX)
    - 1 x CAN FD
    - 1 x 12V DC, 2A output (Vout, GND)

Power Management & Software Support

  • Power input 9~48 V DC

  • Selectable boot-up & shut-down voltage for low power protection by software

  • Setting 8-level power on/off delay time by software

  • Support S3/S4 suspend mode

  • 10~255 seconds WDT support, setup by software

  • SDK (Windows/Linux) including utility and sample code

Operating System

  • Windows 10 64bit, 11

  • Linux 4.x

Dimensions

  • 260mm (W) x 196mm (D) x 66.5mm (H)

Weight

  • 3.2kg

Environment

  • Operating temperatures:
    - -40°C to 70°C (w/ industrial SSD) with air flow

  • Storage temperatures: -40°C to 85°C

  • Relative humidity: 10% to 90% (non-condensing)

  • Vibration (random)
    - 2g@5~500Hz (in operation, SSD)

  • Vibration (SSD)
    - Operating: MIL-STD-810H, Method 514.8C Procedure 1, Category 4,
    common carrier US highway truck vibration exposure
    - Storage: MIL-STD-810H, Method 514.8E Procedure 1, Category 24,
    minimum integrity test

  • Shock (SSD)
    - Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g
    - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g

Standards/Certifications

  • CE

  • FCC Class A

  • E13 mark
Downloads
pdf
Datasheet
Ordering Information

VTC 6232-C4S (P/N: 10V00623201X0)

Intel Atom® processor x7433RE 1.5GHz CPU, 8GB DDR5 SO-DIMM, DC input 9~48 V DC, 1 x VGA, 1 x HDMI®, 1 x LAN, 4 x PoE, 2 x full RS- 232/422/485, 1 x RS-422/485, 8 x GPIO, 2 x USB 3.2, 2 x USB 2.0
