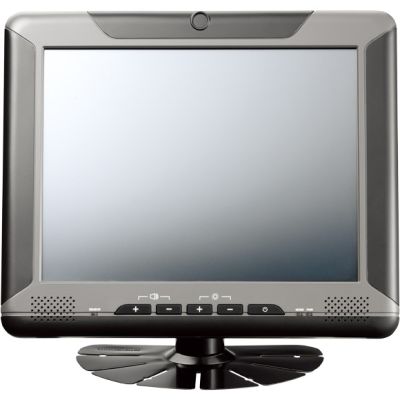

VMD2000 - 8" Vehicle Display with Touch Screen and LVDS Interface

In stock
SKU:
VMD2000
Brand: Nexcom
Enquire Now

Please fill in your details below, we will get back to you as soon as possible

8" SVGA Vehicle Mount Display with Touch Screen and LVDS Interface



·         8" SVGA TFT LCD monitor

·         Automatic/ Manual brightness control

·         Remote system power control

·         On screen control buttons

·         Support USB 2.0 and card reader

·         Sunlight readable solution with 800cd/m2 high brightness support

·         Front panel compliant with IP54

General Enclosure: Plastic PC + ABSMounting: Support VESA 75, panel and wall mountingPower Input: 12VDCPower Consumption: 15WIngress Protection: Front panel IP54Dimension: 207mm (W) x 173mm (H) x 36.7mm (D)
(8.15" x 6.81" x 1.44")
Weight (Net): 0.7Kg, 1.54Lb
LCD Panel 8-inch TFT LCD panel with LED backlight800 x 600 pixels (SVGA)Brightness: 500 cd/m² (typical)Optional high brightness for sunlight-readable with 800cd/m2
After touch screen is 640cd/m2
Contrast ratio: 500:1 (typical)
Touch Screen Sensor 4-wire resistant touchAnti-glare coating surfaceTransmission rate: 82 ± 3%
I/O Interface-Front On screen display buttons x 5
Power on/off
Brightness control (+/-)
Volume control (+/-)
Light sensor2 x LED indicators2 x Built-in speakers (1.2W)
I/O Interface-Lateral 1 x SD/ MMC/ MS card reader1 x USB type A Host1 x Line-out (automatic detection/ switch to external speaker)1 x Mic-in
I/O Interface-Bottom Remote System Power On/ Off Button1 x Mic-out1 x Line-in1 x LVDS Connector
(integrating LVDS, USB x 1 and 12Vdc x 1)
Optional Features Sunlight-Readable Display with High Brightness LCD (800 cd/m2)Support Panel and wall mount kit
Environment Operating temperature: -20°C to 60°CStorage temperature: -30°C to 70°CVibration (random): [email protected]~500 HzVibration
Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck
Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test
Shock
Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers= 20g
Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment= 75g
Standards/ Certifications CE approvalFCC Class B



We build to order
