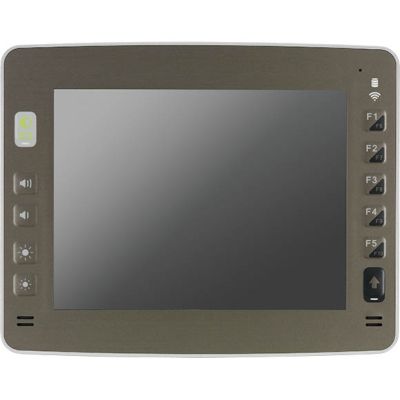

VMC3020 - 10" AIO Vehicle Computer
10.4" Rugged Vehicle Mount Computer with Intel Atom® x5-E3930 processor, Touchscreen and IP65
10.4" Rugged Vehicle Mount Computer with Intel Atom® x5-E3930 processor, Touchscreen and IP65
· 10.4" XGA TFT LCD monitor with 5-wire resistive touch
· Aluminum die-casting and fanless design
· Built-in Intel Atom® x5-E3930 processor, 1.8GHz
· Automatic/manual brightness control
· Touch with heater supported
· On screen F1 ~ F10 programmable function keys
· Powered USB and COM (5V/12V, 1.5A) for accessories
· Military standard for vibration and shock
· UPS Battery supported
· iButton and RFID for ID identification
· Wide range DC input from 9V~60V DC in
· Sunlight readable capability: 1,200nits LCD brightness
· Operating system: Windows and Linux
· CE/FCC/EMark
| LCD Panel | 10.4-inch TFT LCD panel with LED backlight 1024 x 768 pixels (XGA) Brightness: 1200 cd/m² (typical) Viewing angle: 140° (H):120°(V) Contrast ratio: 500:1 (typical) |
| Touch Screen Sensor | 5-wire resistant touch Anti-glare coating surface Transmission rate: 81 ± 3% |
| CPU & Chipset | Intel Atom® x5-E3930 processor dual core 1.8GHz |
| Memory | One 204-pin DDR3L 1600MHz SO-DIMM slot (default: 4GB) |
| Expandable Storage | 1 x CFast 1 x 2.5" SATA SSD bay |
| Expansion | 1 x half-size mini-PCIe socket (PCIe + USB) for WLAN option 1 x full-size mini-PCIe socket (USB) x 1 for WWAN option 1 x M.2 key-E (PCIe + SDIO + UART + USB) for WLAN option 1 x SIM slot |
| I/O Interface-Front | 5 x on screen display buttons Power on/off Volume control (+/-) Brightness control (+/-) Light sensor 4 x LED indicators (power/battery charging, WLAN, shift, storage) F1 ~ F10 programmable function keys 2 x Built-in 2W speakers |
| I/O Interface-Lateral | Right Side: 1 x CFast card slot System reset button USB 2.0 host type A connector Left Side: 1 x antenna for WWAN |
| I/O Interface-Bottom | 1 x Power Switch (ATX mode) Lockable power connector (power, ignition, ground) 2 x RS232 (full signals, RI, 0V, 5V/1.5A, 12V/1.5A) 1 x DB15 - 1 x Isolated CAN 2.0B - 1 x iButton - 1 x RFID (12V/1A. 5V/1A, 4pin) - 1 x Optional RS232 Tx/Rx (share with GPS UART) - 2 x GPI Sink type: 5VDC TTL (default) Source type: 3 ~ 28VDC - 2 x GPO Sink type: 5VDC TTL (default), max current: 20mA Source type: 3 ~ 28VDC, max current: 150mA 1 x Powered USB (5V/1.5A, 12V/1.5A) 1 x USB Type A (5V/1A) 1 x Mic-in, 1 x Line-out 1 x Antenna for GPS |
| I/O Interface-Top | 2 x Antenna for Wi-Fi |
| Mechanical | Cooling system: Fanless Enclosure: Aluminum die castig Mounting: VESA 75/100 & desktop mounting Ingress protection: front panel IP65 Dimension: 289.98mm(W) x 229.97mm(H) x 68.70mm(D) Weight: 3kg, 6.61lb |
| Power Management | 9V~60V DC in (UPS: 12V, 24V, 36V and 48V) Reverse protection/over voltage protection/under voltage protection Ignition On/Off control & programmable On/Off delay timing Wake up by SMS, RTC and ignition |
| Operating System | Windows 10 Linux: YOCTO (by request) |
| Environment | Operating temperatures: Ambient with air -30°C to 60°C Storage temperatures: -30°C to 70°C Relative humidity: 10% to 90% (non-condensing) Vibration Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4 Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24 Shock Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers= 20g Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment= 75g |
| Standards/Certifications | CE/FCC class B/E13 |
