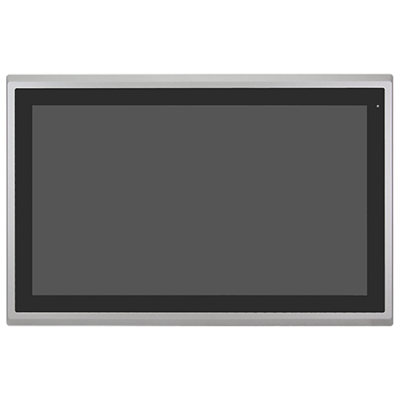

ViPAC-821P/R/G(H) 21.5” Intel Celeron N2930 Fanless Expandable Panel PC

In stock

SKU:

ViPAC-821

Aplex ViPAC-821P/R/G(H) 21.5” Celeron N2930 Fanless Expandable Panel PC IP66 Touchscreen

Key Features:

21.5” TFT LCD Panel PC
Intel Celeron N2930 Processor
Modular Concept and Fanless Design
Support PCT/RTW/AR Glass
Front Bezel IP66
Option WiFi/BT/Speaker
Support 2 x Expansion slot
DC 9~36V Power input, option AC power input

ViPAC-821R
21.5" FHD Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, resistive touch window, 9~36VDC power input with adaptor, Alu.die-casting front bezel.

ViPAC-821P
21.5" FHD Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, projected capacitive touch, 9~36VDC power input with adaptor, Alu.die-casting front bezel.

Enquire Now

Enquire about this product:

Name

Phone

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The HMI Controller Industrial Display Monitor, ViPAC-821P/R/G(H), is a versatile 21.5" Intel Celeron N2930 Fanless Expandable Panel PC designed for industrial applications. It features an onboard Intel Celeron N2930 Processor with a 2M Cache and 1.83GHz clock speed. The system supports up to 8GB of memory with 2 x 204-pin DDR3L SO-DIMM slots. It comes with a 2.5" SATA HDD space for easy-accessible storage and offers a wide-ranging DC power input from 9 to 36V, with the option for AC power input.

The display options include a 21.5" TFT-LCD with a standard resolution of 1920 x 1080 and a high-brightness option. The touch screen supports both Resistive Touch and Projected Capacitive Touch, with light transmission rates of over 80% and over 90%, respectively. The front bezel is rated IP66, providing protection against dust and water.

The panel PC supports expansion through various slots, including 1 x Full-size Mini PCIe on board, 1 x Half-size Mini PCIe on board, and a SIM slot for optional WiFi/BT/4G connectivity. It offers multiple I/O ports at the rear side, such as USB 3.0 type A ports, RJ45 GbE LAN ports, DB9 RS-232/422/485 ports, VGA, HDMI, Line-out/Mic-in, and more. The system is designed with a modular concept and a fanless design, ensuring reliable and efficient performance.

Key Features:

21.5” TFT LCD Panel PC
Intel Celeron N2930 Processor
Modular Concept and Fanless Design
Support PCT/RTW/AR Glass
Front Bezel IP66
Option WiFi/BT/Speaker
Support 2 x Expansion slot
DC 9~36V Power input, option AC power input

This product is listed in Industrial Automation

Specifications

System
CPU	Onboard Intel Celeron N2930 Processor (2M Cache,1.83GHz)
System Chipset	SoC
Memory	2 x 204-pin DDR3L SO-DIMM slot up to 8GB
IO Port
	4 x USB 3.0 type A
	2 x RJ45 GbE LAN
	1 x DB9 RS-232/422/485 default RS-232
	1 x DB9 RS-232
	1 x DB9 RS-422/485 default RS-485
	1 x DB15 VGA
Rear side I/O port	1 x HDMI with Cover
	1 x Line-out/Mic-in
	1 x 2 pin Terminal block for external power switch
	2 x LED indication for HDD/System
	1 x System LED indication at front
	1 x 3 pin TB Power connector
	1 x Power Switch on/off
	2 x 2W speaker at rear side
Option I/O	4 x USB 2.0 Type A via TB-5462 x DB9 COM port
	1 x 8-bit GPIO (3 in/out/VCC/GND)
Storage Space
HDD	1 x 2.5" SATA HDD Space (Easy Accessible Storage Design)
Expansion
	1 x Full-size Mini PCIe on board(PCIe/USB/SATA,SATA by default)
Expansion Slot
	1 x Half-size Mini PCIe on board (PCIe/USB, PCIe by default)
	1 x SIM slot for option(Option wifi/BT/4G and antenna at rear side)
	1 x PCI and 1 x PCIe x1 slot via TB-560P1E11 (default)
Display	Standard	High Brightness Optional
Display Type	21.5” TFT-LCD	21.5” TFT-LCD
Max. Resolution	1920 x 1080	1920 x 1080
Max. Color	16.7M	16.7M
Luminance (cd/m2)	250	1000
View Angle	178(H) / 178(V)	178(H) / 178(V)
Contrast	3000:1	3000:1
Backlight Lifetime	30,000 hrs	50,000 hrs
Option	Auto Dimming	Auto Dimming
Touch Screen	Resistive Touch	Projected Capacitive Touch
Interface	USB	USB
Light Transmission(%)	Over 80%	Over 90%
Power
Power Input	DC 9~36V Power input, option AC power input
Mechanical
Construction	Aluminum die-casting front bezel and steel chassis,Stainless front bezel (option)
Mounting	Panel Mount
IP Rating	Front Panel IP66
Dimensions	557.3 x 362.3 x 99.8 mm
Net Weight	8.3 kg
Environmental
Operating Temperature	0~50°C
Storage Temperature	-30~70°C
Humidity	10 to 95% @ 40°C, non- condensing
Certificate	CE / FCC Class A
Operating System Support	Windows embedded 7 Windows embedded 8.1 Windows 10 IoT Enterprise
ViPAC-821R	21.5" FHD Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, resistive touch window, 9~36VDC power input with adaptor, Alu.die-casting front bezel.
ViPAC-821P	21.5" FHD Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, projected capacitive touch, 9~36VDC power input with adaptor, Alu.die-casting front bezel.
