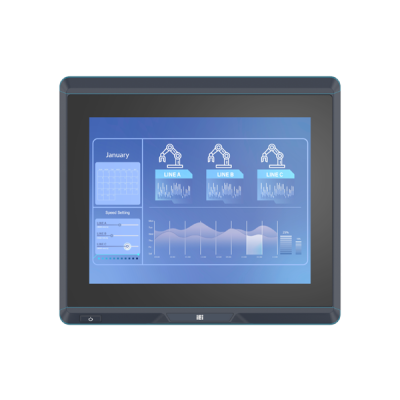

UPC-F12M1-RPLP 12.1” IP66 Fanless Panel PC
12.1” IP66 Fanless Panel PC with Intel Raptor Lake-P
Key Features:
-
12.1” 1024 x 768 600 nits LCD
-
Intel® Raptor Lake-P platform
-
Full body IP66 waterproof
-
Anti-glare & Anti-UV PCAP touch screen
-
Aluminum die-casting
-
DC-in supports ACC mode
-
Optional WiFi 6E and Bluetooth®5.2
The UPC-F12M1 series is specifically designed for demanding industries such as vehicle computing in mining, agriculture, and logistics. Equipped with a 12.1" TFT-LCD true flat design, powered by the Intel® Core™ i3-1315URE processor, and 8GB LPDDR4x memory, this rugged industrial PC offers comprehensive IP66 dust and waterproof protection with M12 connectors and meets MIL-STD-810H standards. It ensures reliable performance even in harsh environments, including bright sunlight, rain, snow, and rough terrain.
|
System |
|
|---|---|
|
CPU |
13th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Raptor Lake-P) |
|
Memory Ext. |
Dual channel 8GB LPDDR4x on board |
|
Storage |
1 x M.2 M key 2280 (PCIe Gen3 x4) |
|
Communication |
|
|
Wireless |
IEEE 802.11 a/b/g/n/ax, Bluetooth V5.2 (optional) |
|
Power |
|
|
Power Supply |
9 ~ 36V DC-in terminal block support ACC mode |
|
Environment |
|
|
Operating Temperature |
-20°C ~ 60°C |
|
Safety & EMC |
CE/FCC/UKCA |
|
Humidity |
10% ~ 95% @40°C, non-condensing |
|
Storage Temperature |
-20°C ~ 70°C |
|
IP Level |
Full IP66 |
|
Physical Characteristics |
|
|
Colour |
Black |
|
Mounting |
VESA 100mm x 100mm |
|
Dimensions (LxWxH) (mm) |
316 x 279 x 67 |
|
Net Weight |
5kg |
|
Construction |
Aluminum die-casting |
|
Expansion Slots |
|
|
Expansion Slots |
1 x M.2 B key 3042/3052/3080 (SATA & PCIe Gen3 x1 & USB 3.0) 1 x M.2 M key 2280 (PCIe Gen3 x4) |
|
LCD |
|
|
Size |
12.1” |
|
Resolution |
1024 x 768 (4:3) |
|
Brightness (cd/m2) |
600 cd/m² |
|
Contrast Ratio |
1000:1 |
|
LCD Color |
16.7M |
|
Viewing Angle (H-V) |
178°/178° |
|
Backlight MTBF |
50,000 hours |
|
Touch |
|
|
Touch Screen |
PCAP with USB interface (anti-UV/AR coating) |
|
Touch Controller |
ILI2520 |
|
I/O Interface |
|
|
I/O Interface |
1 x CAN-bus (8pin M12A MALE) |
|
1 x RS-232/422/485 (8pin M12A MALE) |
|
|
2 x USB 2.0 (8pin M12A MALE) |
|
|
1 x LAN (8pin M12X MALE / 2.5GbE) |
|
|
1 x DC Input Jack (5pin M12A MALE) |
|
|
1 x AT/ATX switch |
|
| UPC-F12M1-RPLP-i3/PC/8G-R10 | 12.1” 600cd/m² XGA fanless panel PC with Intel® Raptor Lake-P Core™ i3-1315URE Processor, TDP 15W, 8GB LPDDR4x RAM, PCAP touch, M12 I/O, R10 |
|---|
