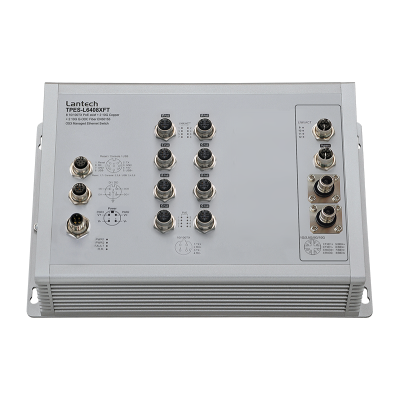

T(P)ES-L6408XFT OS3 Managed Ethernet Switch

In stock

SKU:

T(P)ES-L6408XFT

8 10/100TX + 2 10G Copper + 2 10G Fiber Q-ODC OM3 (with 8/10 PoE) EN50155 OS3 Managed Ethernet Switch

Key Features:

Redundant dual power input design
Miss-wiring avoidance, node failure protection, Loop protection
EN50155 verification with high ESD and inrush current prevention and polarity reverse protection
Able to feed up to 30W for each port, with PD detection, auto PD reboot, scheduling and galvanic isolation
DDoS security to protect switch and server
Optional smart bypass protection on dual 10G copper ports

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The Lantech T(P)ES-L6408XFT is a high performance OS3 Ethernet switch with 8 10/100TX + 2 1G/2.5G/5G/10G Copper r + 2 1G/10G Fiber Q-ODC OM3. PoE model has 8 or w/10 PoE (incl.8 10/100TX + 2 uplink 10GT copper) 802.3af/at ports which provides advanced security function for network aggregation deployment.

Rugged Design with Dual Power Inputs and Enhanced Protection

The T(P)ES-L6408XFT is designed with dual redundant power inputs supporting 16.8~137.5VDC (WVI), 9~36VDC (24V) and 16.8~56VDC (24TVI), providing flexibility for vehicle and rail power architectures. It complies with EN50155, EN455545-2, EN61373 and includes features such as:

High ESD protection
Inrush current limitation
Galvanic isolation to shield from transients
Miss-wiring avoidance
Node failure protection
Loop protection

Intelligent PoE with PD detection and Scheduling

With a PoE budget of up to 80W, this switch supports intelligent PoE management, including:

PD detection and auto-reboot
Scheduling based on user-defined timetables
Per-port power monitoring (voltage, current, power, temp.)
Galvanic isolation on both PoE and Ethernet for added safety

Cybersecurity and IEC 62443-4-1 Certification
To safeguard onboard networks, the T(P)ES-L6408XFT incorporates:

DDoS prevention
802.1X authentication
Dynamic ARP Inspection, IP Source Guard, and Port Security

Advanced Network Management with OS3 Platform

Built on the Lantech OS3 platform, the switch supports:

Layer 3 features: VLAN, IGMP, DHCP options, NAT, Port Forwarding, LACP
Layer 3 routing: OSPF, RIP v1/v2
Ring protection: G.8032/RSTP
JSON-based Open API for efficient device control without heavy CPU load

Read more about the OS3 platform here: https://www.lantechcom.tw/global/eng/download/datasheet/D-OS3_OS4.pdf

Versatile Features for Maintenance & Deployment

Auto-FEED Configuration: Instantly applies saved configurations to replacement switches
USB Port: Backup/restore configurations and firmware updates
Snapshot Feature: Gathers diagnostic data for root cause analysis
Enhanced environmental monitoring (voltage, current, temperature, etc.)
Bypass Relay (-BT model) for 24TVI models to ensure network continuity during power loss

This product is listed in Ethernet Switches

Specifications

Hardware Specifications

Standards	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3ak 10Gbase-T IEEE802.3x Flow Control and Back Pressure IEEE802.3ad Port trunk with LACP IEEE802.1d Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1s Multiple Spanning Tree IEEE802.3ad Link Aggregation Control Protocol (LACP) IEEE802.1AB Link Layer Discovery Protocol (LLDP) IEEE802.1X User Authentication (Radius) IEEE802.1p Class of Service IEEE802.1Q VLAN Tag IEEE802.3at/af Power over Ethernet
Switch Architecture	Back-plane (Switching Fabric): 81.6Gbps
Mac Address	16K MAC address table
Jumbo frame	10KB
Connectors	10/100TX: 8 x M12 4-pole D-coded with Auto MDI/MDI-X function 1G/2.5G/5G/10G Copper: 2x M12 8-pole X-coded 1G/10G FX: 2x ports Q-ODC OM3 with multi-mode/single-mode fiber Power Input connector: 1 x M12 4-pole Male A-coded Reset/Console/USB : 1 x M12 8-pole A-coded DIDO: 1 x M12 5-pole A-coded
Network Cable	10Base-T: 4-pair STP Cat3 cable 100Base-TX: 4-pair STP Cat3/5 cable 1000Base-T: 4-pair STP Cat5/5e cable; 2.5G Copper: 4-pair STP Cat5e cable 10G Copper: 4-pair STP Cat6/6A cable 1G/10G fiber: Multi-mode: 0 to 300 m, 850 nm (OM3 50/125 μm); Single-mode: 0 to 2 km, 1310 nm (9/125 μm)
LED	Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red); RM(Green) 10/100TX Ethernet port: Link/Activity (Green) 1G/2.5G/5G/10G port: speed (1G/2.5G/5G: Yellow; 10G: Orange) 1G/10G fiber: Link/Act (Orange) PoE: Link/Act (Green) (PoE model)
DI/DO	2 Digital Input (DI) : Level 0: -30~2V / Level 1: 10~30V Max. input current:8mA 2 Digital Output(DO): Open collector to 80 VDC, 50mA
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	-40°C ~ 70°C / -40°F ~ 158°F (85°C operation for 10min.)
Storage Temperature	-40°C~85°C / -40°F~185°F
Power Supply	Dual DC input 16.8~137.5VDC (WVI model) ; 9~36VDC (24V model) ; 16.8~56VDC (24TVI model) (PoE galvanic isolation for PoE models; Ethernet galvanic isolation for all models
PoE Budget (PoE model)	80W@24VDC Higher PoE budget can be applied upon request. **
PoE pin assignment (PoE model)	M12 port #1~#8 (-8 model) ; #9~#10 (-10 model) ; support IEEE 802.3at/af End-point ; Alternative A mode
Power Consumption	max. 37.8W exclude PoE load
Case Dimension	IP54/IP67 model: Aluminum case 304mm(W)x195mm(H)x96.2mm(D)
Weight	3.45kgs
Installation	Wall Mount Design
EMI & EMS	FCC Part 15 Class A, IEC/EN61000-6-2 CE EN55032 Class A CE EN55024 CE EN61000-4-2 (ESD) Level 3 CE EN61000-4-3 (RS) Level 3 CE EN61000-4-4 (EFT) Level 3 CE EN61000-4-5 ED3 (Surge) Level 3 CE EN61000-4-6 (CS) Level 3 CE EN61000-4-8 (Magnetic field) Level 3 BS EN61000-4-2, BS EN61000-4-3, BS EN61000-4-4, BS EN61000-4-5, BS EN61000-4-6, BS EN61000-4-8, BS EN55032, BS EN55024
Verifications	EN50155/EN50121-3-2/EN50121-4; EN45545-1, EN 45545-2 Fire & Smoke verification
Stability Testing	EN61373 (Shock and Vibration)
Vehicle Certificate	E13 marking (UN ECE R10) (24V model)
MTBF	TBC (standards: IEC 62380)
Warranty	5 years
Bypass***	One pair bypass module on 10GT ports to pass to next switch in case of power failure and CPU fail

Downloads

Datasheet

Ordering Information

P/N	Model name	Description
8361-52204	TPES-L6408XFT-8-QMM-54-24V	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-52214	TPES-L6408XFT-8-QSM-54-24V	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-52224	TPES-L6408XFT-10-QMM-54-24V	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-52234	TPES-L6408XFT-10-QSM-54-24V	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-52244	TES-L6408XFT-QMM-54-24V	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-52254	TES-L6408XFT-QSM-54-24V	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-52207	TPES-L6408XFT-8-QMM-54-24TVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-52217	TPES-L6408XFT-8-QSM-54-24TVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-52227	TPES-L6408XFT-10-QMM-54-24TVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-52237	TPES-L6408XFT-10-QSM-54-24TVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input IP54 housing w/ PoE galvanic isolation
8361-52247	TES-L6408XFT-QMM-54-24TVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-52257	TES-L6408XFT-QSM-54-24TVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-522	TPES-L6408XFT-8-QMM-54-WVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-5221	TPES-L6408XFT-8-QSM-54-WVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-5222	TPES-L6408XFT-10-QMM-54-WVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-5223	TPES-L6408XFT-10-QSM-54-WVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-5224	TES-L6408XFT-QMM-54-WVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-5225	TES-L6408XFT-QSM-54-WVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-52205	TPES-L6408XFT-8-QMM-67-24V	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-52215	TPES-L6408XFT-8-QSM-67-24V	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-52225	TPES-L6408XFT-10-QMM-67-24V	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-52235	TPES-L6408XFT-10-QSM-67-24V	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-52245	TES-L6408XFT-QMM-67-24V	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-52255	TES-L6408XFT-QSM-67-24V	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-52208	TPES-L6408XFT-8-QMM-67-24TVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-52218	TPES-L6408XFT-8-QSM-67-24TVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-52228	TPES-L6408XFT-10-QMM-67-24TVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-52238	TPES-L6408XFT-10-QSM-67-24TVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-52246	TES-L6408XFT-QMM-67-24TVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-52256	TES-L6408XFT-QSM-67-24TVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-52206	TPES-L6408XFT-8-QMM-67-WVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-52216	TPES-L6408XFT-8-QSM-67-WVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-52226	TPES-L6408XFT-10-QMM-67-WVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-52236	TPES-L6408XFT-10-QSM-67-WVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-52246	TES-L6408XFT-QMM-67-WVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-52256	TES-L6408XFT-QSM-67-WVI	8 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation

OPTIONAL ACCESSORIES - Connector

Model name	Description
ECONM12-04A(F)-C-180	4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply
ECONM12-08A(M)-180	8 pin M12 (Male) A-coded 180 degree crimp type connector for reset/console/USB
ECONM12-05A(M)-C-180	5 pin M12 (Male) A-coded 180 degree crimp type connector for DI/DO
ECONM12-08X(M)-SPEEDCON	8 pin M12 (Male) X-coded 180 degree crimp type connector for data, Ethernet CAT6A (10G), shielded, SPEEDCON
ECONM12-04D(M)-C-180	4 pin M12 (Male) D-coded 180 degree crimp type connector for data

OPTIONAL ACCESSORIES - Cable

Model name	Description
ECONM12-4P(F)1.5M CABLE	4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm
ECONM12-08M2-CONSOLE	8 pin M12 (Male) A-coded 180 degree to RS232 cable for console, 150cm
ECABM12X83MSTP	8 pin M12 (Male) X-coded 180 degree RJ45 STP cable for data, shielded, 300cm
ECAB124030MJS	4 pin M12 (Male) D-coded 180 degree RJ45 STP cable for data, 300cm
ECABMO02-QOP2-3.0-MM-OM3	Q-ODC 2 plug/LC multi-mode fiber, MM-OM3, 300cm
ECABMO02-QOP2-3.0-SM-OS2	Q-ODC 2 plug/LC single-mode fiber, SM-OS2, 300cm

OPTIONAL ACCESSORIES - Others

Model name	Description
M12 to USB interface adapter	8 pin M12 (Male) A-coded 180 degree M12 to USB 2.0 interface adapter, 8cm
USB 2.0 Ethernet Adapter	USB 2.0 to RJ45 Ethernet Adapter
ECONM12-08(M) TO DB9+USB2.0-1.5M CABLE	8 pin M12 (Male) A-coded 180 degree M12 to USB2.0 to DB9 (Female) cable, 150cm
