T(P)ES-L6216XF OS3 Managed Ethernet Switch

In stock
SKU:
T(P)ES-L6216XF

16 10/100TX + 2 1G/10G Q-ODC Fiber (with 8/16 PoE) EN50155 OS3 Managed Ethernet Switch

Key Features:

  • Redundant dual power input design
  • Miss-wiring avoidance, node failure protection, Loop protection
  • EN50155 verification with high ESD and inrush current prevention and polarity reverse protection
  • PoE budget up to 30W for port with PD detection, auto PD reboot, scheduling and galvanic isolation
  • DDoS security to protect switch and server

Enquire Now
Enquire Now

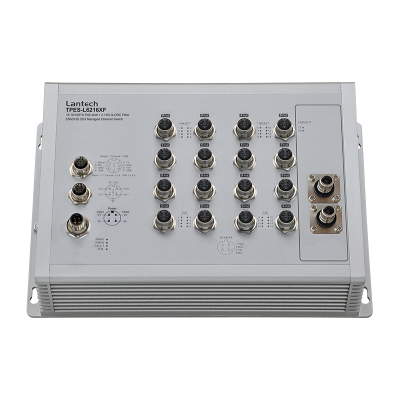

main product photo
We build to order

The Lantech T(P)ES-L6216XF is a high performance OS3 Ethernet switch with 16 10/100TX + 2 1G/10G SR/LR Fiber Q-ODC OM3. PoE model has 8/16 802.3af/at ports which provides advanced security function for network aggregation deployment.

Rugged Design with Dual Power Inputs and Enhanced Protection

The T(P)ES-L6216XF is designed with dual redundant power inputs supporting 16.8~137.5VDC (WVI), 9~36VDC (24V) and 16.8~56VDC (24TVI), providing flexibility for vehicle and rail power architectures. It complies with EN50155, EN455545-2, EN61373 and includes features such as:

  • High ESD protection
  • Inrush current limitation
  • Galvanic isolation to shield from transients
  • Miss-wiring avoidance
  • Node failure protection
  • Loop protection

Intelligent PoE with PD detection and Scheduling

With a PoE budget of up to 80W, this switch supports intelligent PoE management, including:

  • PD detection and auto-reboot
  • Scheduling based on user-defined timetables
  • Per-port power monitoring (voltage, current, power, temp.)
  • Galvanic isolation on both PoE and Ethernet for added safety

Cybersecurity and IEC 62443-4-1 Certification
To safeguard onboard networks, the T(P)ES-L6216XF incorporates:

  • DDoS prevention
  • 802.1X authentication
  • Dynamic ARP Inspection, IP Source Guard, and Port Security

Advanced Network Management with OS3 Platform

Built on the Lantech OS3 platform, the switch supports:

  • Layer 3 features: VLAN, IGMP, DHCP options, NAT, Port Forwarding, LACP
  • Layer 3 routing: OSPF, RIP v1/v2
  • Ring protection: G.8032/RSTP
  • JSON-based Open API for efficient device control without heavy CPU load

Read more about the OS3 platform here: https://www.lantechcom.tw/global/eng/download/datasheet/D-OS3_OS4.pdf

Versatile Features for Maintenance & Deployment

  • Auto-FEED Configuration: Instantly applies saved configurations to replacement switches
  • USB Port: Backup/restore configurations and firmware updates
  • Snapshot Feature: Gathers diagnostic data for root cause analysis
  • Enhanced environmental monitoring (voltage, current, temperature, etc.)
  • Bypass Relay (-BT model) for 24TVI models to ensure network continuity during power loss




This product is listed in Ethernet Switches
Specifications

Hardware Specifications

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3an 10Gbase-T
IEEE802.3ae 10Gbase-SR/LR
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 43.2Gbps

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100TX: 16 x M12 4-pole D-coded with Auto MDI/MDI-X function
1G/10G FX: 2x ports Q-ODC OM3 with multi-mode/single-mode fiber
Power Input connector: 1 x M12 4-pole Male A-coded
Reset/Console/USB : 1 x M12 8-pole A-coded
DIDO: 1 x M12 5-pole A-coded

Network Cable

10Base-T: 4-pair STP Cat3 cable
100Base-TX: 4-pair STP Cat3/5 cable
1000Base-T: 4-pair STP Cat5/5e cable;
2.5G Copper: 4-pair STP Cat5e cable
10G Copper: 4-pair STP Cat6/6A cable

1G/10G fiber:
Multi-mode: 0 to 300 m, 850 nm (OM3 50/125 μm); Single-mode: 0 to 2 km, 1310 nm (9/125 μm)

LED

Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red); RM(Green)
10/100TX Ethernet port: Link/Activity (Green)
1G/10G fiber: Link/Act (Orange)
PoE: Link/Act (Green) (PoE model)

DI/DO

2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 80 VDC, 50mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-40°C ~ 70°C / -40°F ~ 158°F (85°C operation for 10min.)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Dual DC input
16.8~137.5VDC (WVI model) ;
9~36VDC (24V model) ;
16.8~56VDC (24TVI model)

PoE Budget (PoE model)

80W@24VDC (standard model)
Higher PoE budget can be applied upon request. **

PoE pin assignment (PoE model)

M12 port #1~#8/16 (-8/-16 model) ; #19~#20 (-10 model) ; support IEEE 802.3at/af End-point ; Alternative A mode

Power Consumption

max. 32.1W exclude PoE load

Case Dimension

IP54/IP67 model: Aluminum case
304mm(W)x195mm(H)x96.2mm(D) (standard model)

Weight

3.45kgs

Installation

Wall Mount Design

EMI & EMS

FCC Part 15 Class A,
IEC/EN61000-6-2
CE EN55032 Class A
CE EN55024
CE EN61000-4-2 (ESD) Level 3
CE EN61000-4-3 (RS) Level 3
CE EN61000-4-4 (EFT) Level 3
CE EN61000-4-5 ED3 (Surge) Level 3
CE EN61000-4-6 (CS) Level 3
CE EN61000-4-8 (Magnetic field) Level 3
BS EN61000-4-2, BS EN61000-4-3,
BS EN61000-4-4, BS EN61000-4-5,
BS EN61000-4-6, BS EN61000-4-8,
BS EN55032, BS EN55024

Verifications

EN50155/EN50121-3-2/EN50121-4/IEC61373;
EN45545-1, EN 45545-2 Fire & Smoke verification

Stability Testing

EN61373 (Shock and Vibration)

Vehicle Certificate

E13 marking (UN ECE R10) (24V model)

MTBF

TBD (standards: IEC 62380)

Warranty

5 years
Downloads
pdf
Datasheet
Ordering Information

P/N

Model name

Description
8361-4666 TPES-L6216XF-8-QMM-54-24V 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-4667 TPES-L6216XF-8-QSM-54-24V 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-4668 TPES-L6216XF-16-QMM-54-24V 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-4669 TPES-L6216XF-16-QSM-54-24V 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-46645 TES-L6216XF-QMM-54-24V 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-46655 TES-L6216XF-QSM-54-24V 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-46661 TPES-L6216XF-8-QMM-54-24TVI 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-46671 TPES-L6216XF-8-QSM-54-24TVI 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-46681 TPES-L6216XF-16-QMM-54-24TVI 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-46691 TPES-L6216XF-16-QSM-54-24TVI 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-46641 TES-L6216XF-QMM-54-24TVI 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-46651 TES-L6216XF-QSM-54-24TVI 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-466 TPES-L6216XF-8-QMM-54-WVI 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-4661 TPES-L6216XF-8-QSM-54-WVI 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-4662 TPES-L6216XF-16-QMM-54-WVI 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-4663 TPES-L6216XF-16-QSM-54-WVI 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-4664 TES-L6216XF-QMM-54-WVI 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-4665 TES-L6216XF-QSM-54-WVI 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-46665 TPES-L6216XF-8-QMM-67-24V 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-46675 TPES-L6216XF-8-QSM-67-24V 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-46685 TPES-L6216XF-16-QMM-67-24V 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-46695 TPES-L6216XF-16-QSM-67-24V 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-46645 TES-L6216XF-QMM-67-24V 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-46655 TES-L6216XF-QSM-67-24V 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-46662 TPES-L6216XF-8-QMM-67-24TVI 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-46672 TPES-L6216XF-8-QSM-67-24TVI 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-46682 TPES-L6216XF-16-QMM-67-24TVI 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-46692 TPES-L6216XF-16-QSM-67-24TVI 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-46647 TES-L6216XF-QMM-67-24TVI 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-46657 TES-L6216XF-QSM-67-24TVI 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-46605 TPES-L6216XF-8-QMM-67-WVI 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-46615 TPES-L6216XF-8-QSM-67-WVI 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-46625 TPES-L6216XF-16-QMM-67-WVI 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-46635 TPES-L6216XF-16-QSM-67-WVI 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-46646 TES-L6216XF-QMM-67-WVI 16 10/100TX + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-46656 TES-L6216XF-QSM-67-WVI 16 10/100TX + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation

OPTIONAL ACCESSORIES - Connector

Model name

Description
ECONM12-04A(F)-C-180 4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply
ECONM12-08A(M)-180 8 pin M12 (Male) A-coded 180 degree crimp type connector for reset/console/USB
ECONM12-05A(M)-C-180 5 pin M12 (Male) A-coded 180 degree crimp type connector for DI/DO
ECONM12-08X(M)-SPEEDCON 8 pin M12 (Male) X-coded 180 degree crimp type connector for data, Ethernet CAT6A (10G), shielded, SPEEDCON
ECONM12-04D(M)-C-180 4 pin M12 (Male) D-coded 180 degree crimp type connector for data

OPTIONAL ACCESSORIES - Cable

Model name

Description
ECONM12-4P(F)1.5M CABLE 4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm
ECONM12-08M2-CONSOLE 8 pin M12 (Male) A-coded 180 degree to RS232 cable for console, 150cm
ECABM12X83MSTP 8 pin M12 (Male) X-coded 180 degree RJ45 STP cable for data, shielded, 300cm
ECAB124030MJS 4 pin M12 (Male) D-coded 180 degree RJ45 STP cable for data, 300cm
ECABMO02-QOP2-3.0-MM-OM3 Q-ODC 2 plug/LC multi-mode fiber, MM-OM3, 300cm
ECABMO02-QOP2-3.0-SM-OS2 Q-ODC 2 plug/LC single-mode fiber, SM-OS2, 300cm

OPTIONAL ACCESSORIES - Others

Model name

Description
M12 to USB interface adapter 8 pin M12 (Male) A-coded 180 degree M12 to USB 2.0 interface adapter, 8cm
USB 2.0 Ethernet Adapter USB 2.0 to RJ45 Ethernet Adapter
ECONM12-08(M) TO DB9+USB2.0-1.5M CABLE 8 pin M12 (Male) A-coded 180 degree M12 to USB2.0 to DB9 (Female) cable, 150cm
