T(P)ES-L5416MGT OS3 Managed Ethernet Switch

In stock
SKU:
T(P)ES-L5416MGT

16 10/100TX + 4 1G/2.5G Copper (w/8/10/16 PoE) EN50155 OS3 Managed Ethernet Switch

Key Features:

  • Redundant dual power input design
  • Miss-wiring avoidance, node failure protection, Loop protection
  • EN50155 verification with high ESD and inrush current prevention and polarity reverse protection
  • Able to feed up to 30W for each port, with PD detection, auto PD reboot, scheduling and galvanic isolation
  • DDoS security to protect switch and server
  • Optional smart bypass protection on dual 2.5G copper ports

Enquire Now
Enquire Now

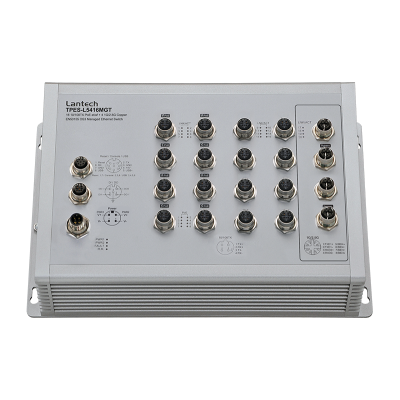

main product photo
We build to order

The Lantech T(P)ES-L5416MGT is a high performance OS3 Ethernet switch with 16 10/100TX + 4 1G/2.5G Copper. PoE model has 8/10/16 PoE 802.3af/at Ports which provides advanced security function for network aggregation deployment.

Rugged Design with Dual Power Inputs and Enhanced Protection

The T(P)ES-L5416MGT is designed with dual redundant power inputs supporting 16.8~137.5VDC (WVI), 9~36VDC (24V) and 16.8~56VDC (24TVI), providing flexibility for vehicle and rail power architectures. It complies with EN50155, EN455545-2, EN61373 and includes features such as:

  • High ESD protection
  • Inrush current limitation
  • Galvanic isolation to shield from transients
  • Miss-wiring avoidance
  • Node failure protection
  • Loop protection

Intelligent PoE with PD detection and Scheduling

With a PoE budget of up to 80W, this switch supports intelligent PoE management, including:

  • PD detection and auto-reboot
  • Scheduling based on user-defined timetables
  • Per-port power monitoring (voltage, current, power, temp.)
  • Galvanic isolation on both PoE and Ethernet for added safety

Cybersecurity and IEC 62443-4-1 Certification
To safeguard onboard networks, the T(P)ES-L5416MGT incorporates:

  • DDoS prevention
  • 802.1X authentication
  • Dynamic ARP Inspection, IP Source Guard, and Port Security

Advanced Network Management with OS3 Platform

Built on the Lantech OS3 platform, the switch supports:

  • Layer 3 features: VLAN, IGMP, DHCP options, NAT, Port Forwarding, LACP
  • Layer 3 routing: OSPF, RIP v1/v2
  • Ring protection: G.8032/RSTP
  • JSON-based Open API for efficient device control without heavy CPU load

Read more about the OS3 platform here: https://www.lantechcom.tw/global/eng/download/datasheet/D-OS3_OS4.pdf

Versatile Features for Maintenance & Deployment

  • Auto-FEED Configuration: Instantly applies saved configurations to replacement switches
  • USB Port: Backup/restore configurations and firmware updates
  • Snapshot Feature: Gathers diagnostic data for root cause analysis
  • Enhanced environmental monitoring (voltage, current, temperature, etc.)
  • Bypass Relay (-BT model) for 24TVI models to ensure network continuity during power loss

This product is listed in Ethernet Switches
Specifications

Hardware Specifications

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 23.2 Gbps

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100TX: 16 x M12 4-pole D-coded with Auto MDI/MDI function
1G/2.5G Copper: 4 x M12 8-pole X-coded with
Auto MDI/MDI function
Power Input connector: 1 x M12 4-pole A-coded
Reset/Console/USB: 1 x M12 8-pole A-coded
DIDO: 1 x M12 5-pole A-coded

Network Cable

10Base-T: 2-pair STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair STP Cat. 5/ 5E/ 6 cable; EIA/TIA-568 100-ohm (100m)
1000Base-T: 4-pair STP Cat5E/6 cable

LED

Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red); RM(Green)
10/100T Ethernet port: Link/Activity (Green)
1G/2.5G copper: Link/Act (Yellow)
PoE: Link/Act (Green) (PoE model)

DI/DO

2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 80 VDC, 50mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-40°C ~ 70°C / -40°F ~ 158°F (85°C operation for 10min.)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Dual DC input
16.8~137.5VDC (WVI model) ;
9~36VDC (24V model) ;
16.8~56VDC (24TVI model)
(PoE galvanic isolation for PoE models; Ethernet galvanic isolation for all models

PoE Budget (PoE model)

80W@24VDC
Higher PoE budget can be applied upon request. **

PoE pin assignment (PoE model)

M12 port #1~#8 (-8 model) ;
#1~#16 (-16 model) ;
#1~#8 and #17~#18 (-10 model) ;
support IEEE 802.3at/af End-point, Alternative A mode
End-point. Per port provides up to 30W

Power Consumption

max. 39.5W (exclude PoE load)

Case Dimension

IP54/IP67 model: Aluminum case
304mm(W)x195mm(H)x89.5mm(D)

Weight

3.45kgs

Installation

Wall Mount Design

EMI & EMS

FCC Part 15 Class A,
IEC/EN61000-6-2
CE EN55032 Class A
CE EN55024
CE EN61000-4-2 (ESD) Level 3
CE EN61000-4-3 (RS) Level 3
CE EN61000-4-4 (EFT) Level 3
CE EN61000-4-5 ED3 (Surge) Level 3
CE EN61000-4-6 (CS) Level 3
CE EN61000-4-8 (Magnetic field) Level 3
BS EN61000-4-2, BS EN61000-4-3,
BS EN61000-4-4, BS EN61000-4-5,
BS EN61000-4-6, BS EN61000-4-8,
BS EN55032, BS EN55024

Verifications

EN50155/EN50121-3-2/EN50121-4;
EN45545-1, EN 45545-2 Fire & Smoke verification

Stability Testing

EN61373 (Shock and Vibration)

Vehicle Certificate

E13 marking (UN ECE R10) (24V model)

MTBF

478,546 hrs (IEC 62380 standards)

Warranty

5 years

Bypass**

Up to two pairs bypass module on 1G/2.5G Copper ports to pass to next switch in case of power failure and CPU fail; -10 model only support one pair bypass
Downloads
pdf
Datasheet
Ordering Information

P/N

Model name

Description
8361-6275 TPES-L5416MGT-8-67-24V 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62755 TPES-L5416MGT-8-54-24V 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-6276 TPES-L5416MGT-10-67-24V 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/10 PoE 802.3at/af incl. 2 1G/2.5G copper EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62765 TPES-L5416MGT-10-54-24V 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/10 PoE 802.3at/af incl. 2 1G/2.5G copper EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-6279 TPES-L5416MGT-16-67-24V 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62775 TPES-L5416MGT-16-54-24V 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-6278 TES-L5416MGT-67-24V 16 10/100TX + 4 1G/2.5G Copper M12 X-coded EN50155 OS3 Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-62785 TES-L5416MGT-54-24V 16 10/100TX + 4 1G/2.5G Copper M12 X-coded EN50155 OS3 Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-62756 TPES-L5416MGT-8-67-24TVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62757 TPES-L5416MGT-8-54-24TVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62766 TPES-L5416MGT-10-67-24TVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/10 PoE 802.3at/af incl. 2 1G/2.5G copper EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62767 TPES-L5416MGT-10-54-24TVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/10 PoE 802.3at/af incl. 2 1G/2.5G copper EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62796 TPES-L5416MGT-16-67-24TVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62776 TPES-L5416MGT-16-54-24TVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62786 TES-L5416MGT-67-24TVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded EN50155 OS3 Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-62787 TES-L5416MGT-54-24TVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded EN50155 OS3 Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-47074 TPES-L5416MGT-8-67-WVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-4707 TPES-L5416MGT-8-54-WVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62704 TPES-L5416MGT-10-67-WVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/10 PoE 802.3at/af incl. 2 1G/2.5G copper EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-627 TPES-L5416MGT-10-54-WVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/10 PoE 802.3at/af incl. 2 1G/2.5G copper EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62714 TPES-L5416MGT-16-67-WVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-6271 TPES-L5416MGT-16-54-WVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62734 TES-L5416MGT-67-WVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded EN50155 OS3 Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-6273 TES-L5416MGT-54-WVI 16 10/100TX + 4 1G/2.5G Copper M12 X-coded EN50155 OS3 Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation

OPTIONAL ACCESSORIES - Connector

Model name

Description
ECONM12-04A(F)-C-180 4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply
ECONM12-08A(M)-180 8 pin M12 (Male) A-coded 180 degree crimp type connector for reset/console/USB
ECONM12-05A(M)-C-180 5 pin M12 (Male) A-coded 180 degree crimp type connector for DI/DO
ECONM12-08X(M)-SPEEDCON 8 pin M12 (Male) X-coded 180 degree crimp type connector for data, Ethernet CAT6A (10G), shielded, SPEEDCON
ECONM12-04D(M)-C-180 4 pin M12 (Male) D-coded 180 degree crimp type connector for data

OPTIONAL ACCESSORIES - Cable

Model name

Description
ECONM12-4P(F)1.5M CABLE 4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm
ECONM12-08M2-CONSOLE 8 pin M12 (Male) A-coded 180 degree to RS232 cable for console, 150cm
ECABM12X83MSTP 8 pin M12 (Male) X-coded 180 degree RJ45 STP cable for data, shielded, 300cm
ECAB124030MJS 4 pin M12 (Male) D-coded 180 degree RJ45 STP cable for data, 300cm

OPTIONAL ACCESSORIES - Others

Model name

Description
M12 to USB interface adapter 8 pin M12 (Male) A-coded 180 degree M12 to USB 2.0 interface adapter, 8cm
USB 2.0 Ethernet Adapter USB 2.0 to RJ45 Ethernet Adapter
ECONM12-08(M) TO DB9+USB2.0-1.5M CABLE 8 pin M12 (Male) A-coded 180 degree M12 to USB2.0 to DB9 (Female) cable, 150cm
