SHK[X]4-7-49[X] 4X4 MiMo 4G/5G Reef Sharkee Antenna
4X4 MiMo 4G/5G Reef Sharkee Antenna
Key Features:
- Sleek sharkfin design
- 4×4 MiMo 698-960/1427-4900MHz
- Up to 4×4 MiMo WiFi 6e (optional)
- GPS/GNSS L1/L5 or L1 only 30dB / 26dB LNA (optional)
![SHK[X]4-7-49[X] 4X4 MiMo 4G/5G Reef Sharkee Antenna](https://www.tekdis.com.au/media/amasty/amlabel/Copy_of_Recommended_for_New.png "SHK[X]4-7-49[X] 4X4 MiMo 4G/5G Reef Sharkee Antenna")

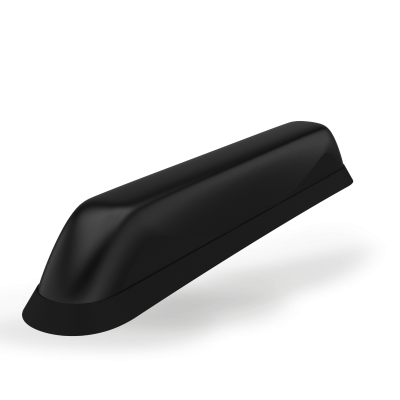

The SHK[X]4-7-49[X] MiMo Reef Sharkee® antenna is designed to be a discrete one-size-fits-all solution for mobile applications. The robust low-profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module. This version of the product does not have a whip position.
The sleek sharkfin design has low visual impact and at only 52mm (2″) high the antenna can comply with certain state laws regarding light-bar obscuration on police vehicles.
The product is supplied with low-loss flame retardant pigtail cables approved to UN ECE R118 and a variety of extension cables are available for different applications.
The SHK[X]4-7-49[X] can be installed on conductive or non-conductive panels.
|
ELECTRICAL DATA |
|
|---|---|
|
Pattern |
Omnidirectional |
|
Max Input Power(W) |
5 |
|
Typical VSWR |
<2.5:1 |
|
Frequency Range | Gain |
Check the part number table |
|
Cellular LTE Elements |
4 x 4 MIMO |
|
WIFI Elements |
2 x 2 MIMO; 4 x 4 MIMO; No; 3 x 3 MIMO |
|
UHF Elements |
No |
|
GPS DATA |
|
|
GPS Frequency Range |
1164-1189MHz/1559-1612MHZ; 1559-1612MHz |
|
LNA GAIN (dB) |
30dB / 26dB; 26dB |
|
Number of GPS Elements |
1 Module; No |
|
MECHANICAL DATA |
|
|
Colour |
Black |
|
Length |
365 (mm) | 14.37 (in) |
|
Width |
60 (mm) | 2.36 (in) |
|
Height |
max: 52 (mm) | 2.05 (in) |
|
Operating Temperature |
-40°/ +85°C (-40.0°/ +185.0°F) |
|
CABLE DATA |
|
|
Cable Length – LTE |
0.3 (m) | 0.98 (ft) |
|
Cable length – GPS |
0.3 (m) | 0.98 (ft) |
|
Cable Length – WIFI |
0.3 (m) | 0.98 (ft) |
|
Cable Type (LTE) |
CS30 |
|
Cable Type (GPS) |
RG174 |
|
Cable Type (WIFI) |
CS30 |
|
TERMINATION DATA |
|
|
Connector (WIFI) |
SMA (f) |
|
Connector (GPS) |
SMA (m); FME (f) |
|
Connector (LTE) |
SMA (m) |
|
MOUNTING DATA |
|
|
Mounting Type Fixed |
Panel |
|
Mounting Methods |
Panel |
|
APPROVALS DATA |
|
|
IP Rating |
IP69K |
|
TECHNOLOGY DATA |
|
|
Technology |
GPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G; 2G/3G/4G; CBRS; GNSS; WIFI 6E |
