SCM187-4R8EI-184EVK SMARC v2.1 Mini Quad 1.6 GHz SoC
Axiomtek SCM187-4R8EI-184EVK SMARC v2.1 SoM Evaluation Kit Mini Quad 1.6 GHz SoC 4GB RAM 8GB eMMC CANBus
Key Features:
- NXP i.MX 8M Mini Quad A53 Core processor
- Cortex-M4 for real-time control
- Dual CANBus
- Dual-channel 24-bit LVDS
- GbE LAN
- Audio
- Micro SD Socket
- 12V-24V Wide Voltage
- Yocto 4.0

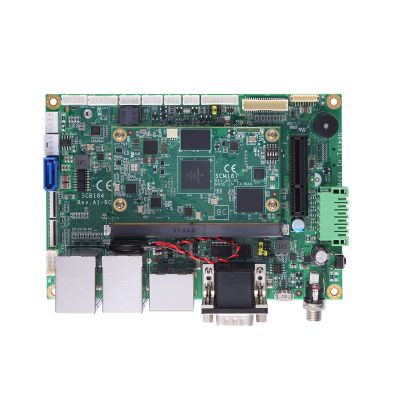

The SCM187-4R8EI-184EVK is an evaluation kit for the SMARC v2.1 SoM based on the NXP i.MX 8M Mini 1.6GHz SoC. It offers 4GB LPDDR4 system memory and 8GB eMMC storage. The kit features connectivity options such as RS-232 and RS-485 ports, USB 2.0 ports, GbE LAN ports, and a dual-channel 24-bit LVDS display interface.
It includes CANBus, I2C, SPI, and GPIO interfaces, as well as storage options with an onboard eMMC and micro SD slot. The kit supports expansion with a PCIe x4 slot and offers optional TPM 2.0 security. It operates on 12V-24V DC-in, has an operating temperature range of -20°C to +70°C, and comes in a compact form factor of approximately 146 x 102 mm.
Key Features:
- NXP i.MX 8M Mini Quad A53 Core processor
- Cortex-M4 for real-time control
- Dual CANBus
- Dual-channel 24-bit LVDS
- GbE LAN
- Audio
- Micro SD Socket
- 12V-24V Wide Voltage
- Yocto 4.0
|
Core System |
||
|
CPU |
NXP i.MX 8M Mini 1.6GHz SoC with Quad A53 |
|
|
System Memory |
LPDDR4 4GB |
|
|
Operating System |
Yocto 4.0, Linux Kernel 5.15.32 |
|
|
Storage |
1 x Micro SD slot 1 x 8GB eMMC |
|
|
Internal I/O and Features |
||
|
PCIe* |
1 x PCIe x4 slot (SCM187 supports PCIe Gen2 x1) |
|
|
USB* |
2 x USB 2.0 (not supported on SCM187) |
|
|
Audio |
1 x Line In/ Line Out |
|
|
CANBus |
2 x CANBus |
|
|
I2C |
2 x I2C Header |
|
|
QSPI |
1 x QSPI Header |
|
|
SPI |
1 x SPI Header |
|
|
Graphics |
1 x Dual-channel 24-bit LVDS |
|
|
LTE/5G* |
1 x SIM card slot (not supported on SCM187) 1 x M.2 Key B 3052 slot for 5G Module (not supported on SCM187) |
|
|
SATA* |
1 x SATA for SATA III (not supported on SCM187) 1 x SATA Power (not supported on SCM187) |
|
|
Fan |
1 x Fan control |
|
|
Storage |
1 x 8GB eMMC |
|
|
RTC |
1 x RTC-Battery (CR2032) |
|
|
Security* |
1 x TPM 2.0 (optional, none in default) |
|
|
* The connected SMARC module must also support the features for the connector to function. Refer to the SMARC module’s datasheets for information about supported features. |
||
|
External I/O |
||
|
Ethernet* |
2 x GbE LAN (SCM187 supports 1 x GbE LAN) |
|
|
USB* |
4 x USB 2.0 Type A (SCM187 supports USB 2.0) |
|
|
Graphics* |
1 x HDMI (not supported on SCM187) 1 x DisplayPort (not supported on SCM187) |
|
|
COM |
1 x DB9 for RS-232 1 x DB9 for RS-232/485 |
|
|
OS Flash |
1 x OS Flash |
|
|
GPIO |
10 x GPIO |
|
|
Power |
1 x Lockable DC jack (12V-24V) |
|
|
Reset |
1 x Reset bu on |
|
|
Storage |
1 x Micro SD slot |
|
|
* The connected SMARC module must also support the features for the connector to function. Refer to the SMARC module’s datasheets for information about supported features. |
||
|
Mechanical and Environmental |
||
|
Power Input |
12V-24V DC-in |
|
|
Dimensions |
146 x 102 mm (approx. 5.75" x 4.02") |
|
|
Operating Temperature |
-20°C to +70°C (-4°F to +158°F ) |
|
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F ) |
|
|
Operating Humidity |
10% to 95%, non-condensing |
|
|
Storage Humidity |
10% to 95%, non-condensing |
|
