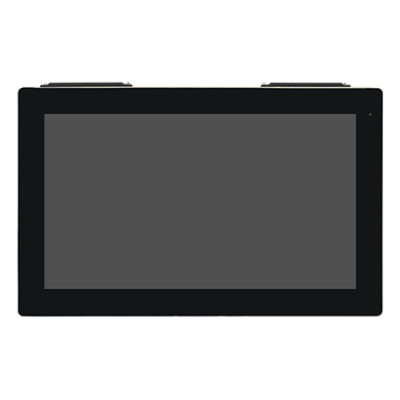

PhanTAM-916CP(H) 15.6” IP69K Slim Design Stainless Steel Panel PC
Aplex PhanTAM-916CP(H) 15.6” IP69K Slim Design Stainless Steel Panel PC
Key Features:
- 15.6" Stainless Steel Panel PC
- 11th Gen. Intel Core i3/i5 BGA type Processor
- True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option) - IP66/IP69K Rated with M12 Connectors
- Ultra Slim Front Frame Design
- Special Hygienic Bolts on Rear Case
- Waterproof Wireless Antenna Covers to Solve the Bend Damage and Easy to Clean
- Support Ergonomic Versatile Mounting: VESA Mount 100 x 100 / Floor Stand / Swing ARM
- H Variant Optional 1000 Nit (cd/m2) Luminance Screen
PhanTAM- 916CP
15.6" WXGA IP66/IP69K Stainless Steel Panel PC Intel 11th Gen. Projected Capacitive Touch, 9~36V DC Power Input
PhanTAM- 916CPH
15.6" WXGA IP66/IP69K Stainless Steel Panel PC Intel 11th Gen. Projected Capacitive Touch, 9~36V DC Power Input 1000 nits
The PhanTAM916CP is a 15.6" WXGA stainless steel panel PC designed to meet IP66/IP69K standards for water and dust resistance. The PhanTAM916CPH comes with a higher brightness screen capable of reaching up to 1000 nits (cd/m2) of luminance. Both are equipped with an Intel 11th Gen. Core i Processor, providing powerful performance. The panel PC also includes two SO-DIMM DDR4 slots for memory expansion.
Each has a projected capacitive touch screen for smooth and responsive interactions. The device supports a 9~36V DC power input with an adapter, ensuring reliable and flexible power supply. Two optional blank M12 connectors with waterproof covers, allow you to select two from the following connectivity options: 2 x USB 2.0, 1 x USB 3.2 Gen.1, 1 x HDMI, 1 x LAN, 1 x COM, and 1 x CAN.
Key Features:
- 15.6" Stainless Steel Panel PC
- 11th Gen. Intel Core i3/i5 BGA type Processor
- True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option) - IP66/IP69K Rated with M12 Connectors
- Ultra Slim Front Frame Design
- Special Hygienic Bolts on Rear Case
- Waterproof Wireless Antenna Covers to Solve the Bend Damage and Easy to Clean
- Support Ergonomic Versatile Mounting: VESA Mount 100 x 100 / Floor Stand / Swing ARM
- H Variant Optional Nit 1000 (cd/m2) Luminance Screen
|
System |
|
|
Onboard 11th Gen. Intel Core i3/i5 Processor |
|
|
CPU |
Core i5-1145G7E (Quad Core, 8 MB cache, 1.50 GHz) |
|
Core i3-1115G4E (Dual Core, 6 MB cache, 2.20 GHz) |
|
|
System Chipset |
SoC |
|
Memory |
2 x 260-pin SO-DIMM up to 64GB DDR4 3200MHz |
|
TPM |
TPM 2.0 |
|
IO Port |
|
|
USB |
1 x M12 8-pin for 2 x USB 2.0 with waterproof cover |
|
Serial / Parallel |
1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover |
|
LAN |
1 x M12 8-pin for LAN with waterproof cover |
|
Power Connector |
1 x M12 3-pin for DC power with waterproof cover1 x Power switch on the rear |
|
2 x optional blank M12 connector with waterproof cover for |
|
|
selecting two from the following options: |
|
|
2 x USB 2.0 |
|
|
Option |
1 x USB 3.2 Gen.11 x HDMI |
|
1 x LAN |
|
|
1 x COM |
|
|
1 x CAN |
|
|
Storage Space |
|
|
M.2 |
1 x M-Key 2280 (PCIe x4) for SSD |
|
Expansion |
|
|
1 x Full size mPCIe/mSATA (mPCIe as default, select by BIOS) |
|
|
Expansion slot |
1 x NANO-SIM |
|
1 x M.2 E-key 2230 (PCIe+USB) for optional WIFI/BT module |
|
|
RFID module |
RFID module design on the front side (for option) |
|
Display |
Standard |
High Brightness Optional |
|
Display Type |
15.6" TFT-LCD |
15.6" TFT-LCD |
|
Max. Resolution |
1366 x 768 / 1920 x 1080 |
1366 x 768 / 1920 x 1080 |
|
Max. Color |
16.7M / 16.2M |
16.7M / 16.2M |
|
Luminance (cd/m2) |
400/450 |
1000 |
|
View Angle |
170(H) /160(V) 170(H) /170(V) |
160(H) /160(V) 170(H) /170(V) |
|
Contrast |
500:1 / 800:1 |
800:1 |
|
Backlight Lifetime |
50,000 hrs |
50,000 hrs |
|
Touch Screen |
|
|
Type |
Projected Capacitive Touch |
|
Interface |
USB |
|
Light Transmission(%) |
90% |
|
Power |
|
|
Power Input |
DC 9~36V |
|
Power Consumption |
PhanTAM-921CP: 36W |
|
Mechanical |
|
|
Construction |
304 Stainless Steel Chassis (default), 316 Stainless Steel Chassis (optional) |
|
Mounting |
VESA Mount 100 x 100, Floor Stand / Swing ARM (optional) |
|
IP Rating |
Total IP66/IP69K |
|
Dimensions |
404.4 x 225.4 x 64.9 mm |
|
Net Weight |
5.1 kg |
|
Environmental |
|
|
Operating Temperature |
0~50°C (WT1: -20~60°C for optional) |
|
Storage Temperature |
-30~70°C |
|
Humidity |
10 to 90% @ 40°C, non-condensing |
|
Certificate |
CE/FCC Class A |
|
Operating System Support |
Windows 10 IoT ENT LTSB, Windows 11 |
|
Ordering Information |
|
|
PhanTAM- 916CP |
15.6" WXGA IP66/IP69K stainless steel panel pc, Intel 11th Gen. Core i Processor,2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter |
|
PhanTAM- 916CPH |
15.6" WXGA IP66/IP69K stainless steel panel pc, Intel 11th Gen. Core i Processor,2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter, 1000 nits |
