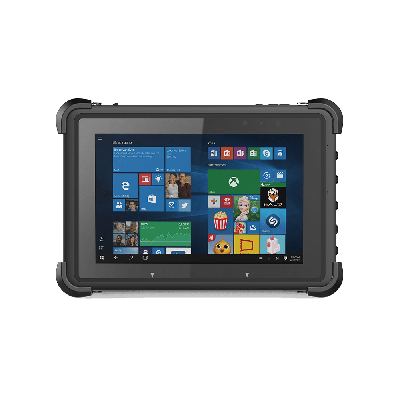

ND51/ND52, 10.1" Intel Atom CPU Rugged Tablet

In stock
SKU:
ND51/ND52/ND53

10.1" Rugged Tablet supported by Windows and Android


Downloads:

Enquire Now
Enquire about this product



·         MlL-STD 81OG tested, 5 ft. / 1.5m drop proof.

·         IP65, one-meter tumble test.

·         Hot swap battery, integrated 10800mAh/ 3.7V battery pack.

·         Windows® 10 loT Enterprise.

·         Firmware TPM 2.0.

·         10/100 Ethernet port.

·         Optional finger print authentication support for biometric security system.

·         Optional vehicle dock, office dock, battery charger.

·         Optional briefcase handle, stylus, hand strap.

·         Optional 4G LTE multi carrier mobile broadband.

·         Optional RFID/NFC/2D Honeywell barcode readers for data acquisition.

·         Optional Intel® RealSense 3D camera to create smart service of Industrial 4.0.


This product is listed in Mobile Computing, Industrial Tablets, Industrial Automation, Mining, Transport
  • Software
  •  Windows®10 loT Enterprise
  • Durability
  •  MIL-STD-810G (Multiple 5'/1.5m Drops) 26 times all corners and sides with single tablet while operating
     IP65
     500 times x 1 m tumble test
     Steel ball drop test, 25 mm diameter rounded end steel weight of 250 gm from 50cm. w/ screen protector
     Glass screen protector
     Operating Temperature: -10°C ~ 50°C
  • CPU
  •  Intel® Atom TM X5-Z8550 Processor
  • Storage & Memory
  •  LPDDR3 4GB on board, MAX support 8G
     64GB or 128GB eMMC
  • Display
  •  10.1" WUXGA 1200x1920 IPS 470 nits
  • Audio
  •  1 Digital microphone
     2 integrated speaker
  • Input
  •  10-point multi-touch and capacitive stylus, support glove mode and wet-touch mode
     4 Physical buttons (power, vol+, vol-, barcode scanner key)
  • Cameras
  •  2MP front camera
     8MP rear camera, Auto Focus, Flash
    Optional RealSense 3D Camera
  • Wireless
  •  GPS (onboard)
     Optional Sierra EM7455 (North America/EMEA]
     Wi-Fi 802.11 a/b/g/n/AC
     Bluetooth® 4.1
  • Interface
  •  Docking connector
     Full size USB 3.0 x1
     Full size USB 2.0 x1
     RJ45 10/100 Ethernet Port
     Replaceable DC jack
     Micro HDMI
     3.5mm Audio jack
     SIM Card Reader
     Micro SDXC Card Reader
     Reset hole
  • Power Supply
  •  Backup Battery / Hot swappable external battery
     Battery: 3.7V, 10800 mAh / 40Wh
     Battery operation: up to 8.5 hours
  • Security
  •  Optional Integrated Fingerprint reader
     Trusted Platform Module [ TPM 2.0 ]
     Optional NFC/ RFID
  • Dimensions & Weight
  •  13.72" x 7.56" x 0.86" [283.4mm x 192.0mm x 21.9mm]
     2.64 lbs [1200g]
  • Collaboration
  •  Optional 1D/2D Barcode Reader
     9 Axis MEMS sensor (Accelerometer, eCompass, Gyroscope)
     Ambient Light Sensor
     Proximity Sensor
  • Accessories
  •  AC Adapter 65W (19V / 3.42A)
     Hand strap with stylus holder
     Optional Capacitive stylus pen
     Optional Vehicle Dock
     Optional Office Dock
     Optional Battery Chargers
