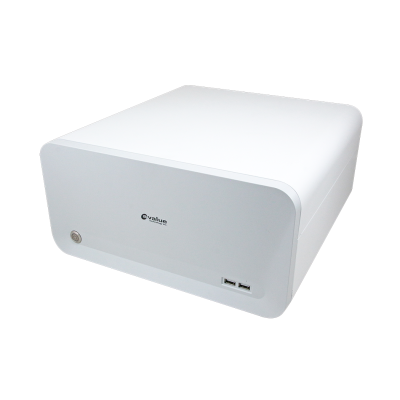

MAB-T600-B1 Medical AI Box PC with Intel 12/13th Gen Core
MAB-T600-B1 GPU card Medical AI Box PC with Intel 12/13th Gen Core I Processors
Key Features:
- 12/13th Generation Intel® Core™ i3/i5/i7/i9 Processors
- Intel® R680E PCH
- 4-Memory Socket, Max. Up to 128GB DDR5 4400MHz with ECC Support
- 4-DP++, 2-2.5 Gigabit Ethernet
- 6 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 2 Type-C at Rear, 2-USB at Front
- 2-Storage, 2-2.5” Drive Bay, Optional 2-3.5” Drive Bay
- 1 x Gen 5 PCIe x16, 2 x Gen 4 PCIe x4, 1 x Gen 3 PCIe x4
The Avalue MAB-T600-B1 is a state-of-the-art medical AI box PC designed to meet the demanding requirements of contemporary healthcare environments. Equipped with 12th and 13th Generation Intel® Core™ processors, this system offers the robust performance necessary for complex medical applications, including image processing and big data analysis.
Key Features:
- High-Performance Processing: Supports Intel® Core™ i3/i5/i7/i9 processors, accommodating up to 16 cores and 24 threads, ensuring efficient handling of intensive computational tasks.
- Ample Memory Capacity: Features four DIMM slots supporting up to 128GB of DDR5 4400MHz memory with ECC support, enhancing data integrity and system reliability.
- Versatile Expansion Options: Includes multiple PCIe slots: one Gen 5 PCIe x16, two Gen 4 PCIe x4, and one Gen 3 PCIe x4, allowing integration of various expansion cards such as high-performance GPUs and capture cards.
- Comprehensive Connectivity: Offers a range of I/O ports, including four DisplayPort++ outputs, two 2.5 Gigabit Ethernet ports, six USB 3.2 Gen 2 ports, and a USB 3.2 Gen 2 Type-C port, facilitating seamless connections with medical devices and peripherals.
- Flexible Storage Solutions: Provides two 2.5” drive bays with an option for two additional 3.5” drive bays, catering to extensive data storage requirements inherent in medical applications.
- Medical-Grade Design: Constructed with IPX1-grade protection and compliant with medical safety standards, the MAB-T600-B1 is built to withstand the stringent conditions of healthcare settings, ensuring durability and reliability.
Designed with a focus on high-performance computing and expandability, the Avalue MAB-T600-B1 is an ideal solution for healthcare professionals seeking a reliable platform for advanced medical imaging, AI applications, and data-intensive tasks.
Product Specifications
System Information
| Component | Specification |
|---|---|
| Processor | LGA 1700 socket supports 12th Gen Alder Lake / 13th Gen Raptor Lake Intel® Core™ i9/i7/i5/i3, Pentium®, Celeron® (up to 16 Cores, 24 Threads, Hybrid) |
| Platform Controller Hub | Intel® R680E PCH |
| System Memory | 4 x DIMM slots, Dual Channel DDR5 up to 4400MHz (UDIMM), up to 128GB, ECC supported |
| BIOS | 256Mb SPI socket type |
| Watchdog Timer | H/W reset, 5 |
| H/W Status Monitor | CPU temperature, voltage monitoring, CPU fan speed control |
| RAID | Supports RAID 0, 1, 5, 10 |
| TPM | Onboard TPM 2.0 support |
| iAMT | Intel® Active Management Technology 16 |
| SBC | RX680R |
Expansion
| Component | Specification |
|---|---|
| M.2 Slots | - 1 x M-Key 2242/2280/22110 NVMe (Gen 4 PCIe x4 + SATA III) - 1 x M-Key 2242/2280/22110 NVMe (Gen 3 PCIe x4 + SATA III) - 1 x E-Key 2230 (PCIe x1 + USB 2.0, CNVi support) |
| PCIe Slots | - 1 x Gen 5 PCIe x16 - 2 x Gen 4 PCIe x4 (x16 physical yellow) - 1 x Gen 3 PCIe x4 (open ended) |
Storage
| Component | Specification |
|---|---|
| Drive Bays | 2 x 2.5” SATAIII HDD/SSD (Optional: 2 x 3.5” SATAIII HDD/SSD) |
Display
| Component | Specification |
|---|---|
| Graphics | Intel® Integrated UHD Graphics with Xe Architecture (CPU dependent) |
| Display Ports | 4 x Dual Mode DP 1.4a (Max. 3840 x 2160 @60Hz) |
| Multi-Display | Supports 4 independent displays |
Audio
| Component | Specification |
|---|---|
| Codec | Realtek HD Audio |
Power Requirements
| Component | Specification |
|---|---|
| Power Supply | 500W medical 1U ATX PSU |
| Power Mode | AT/ATX (default: ATX) |
Ethernet
| Component | Specification |
|---|---|
| LAN1 & LAN2 | Intel® I225-LM / I226-LM 2.5 GbE Controllers |
Software Support
| Component | Specification |
|---|---|
| OS | Windows 10, Windows 11, Linux |
Certification
| Standard | Description |
|---|---|
| ANSI / CAN / IEC / EN / BS | Multiple certifications including medical (60601 series), safety (62368), and risk management (ISO 14971) |
| FCC / ICES | 47CFR FCC Part 15, ICES-003 Issue 7 |
External I/O
| Port Type | Specification |
|---|---|
| USB | - 2 x USB 2.0 (front) - 6 x USB 3.2 Gen 2x1 - 1 x USB 3.2 Gen 2x2 Type-C |
| LAN | 2 x RJ45 |
| Audio | Line-out, Mic-in |
| Display | 4 x DP++ |
Mechanical & Environmental
|
Property |
Specification |
|---|---|
|
Operating Temp. |
0°C ~ 40°C (32°F ~ 104°F) |
|
Storage Temp. |
-30°C ~ 70°C (-22°F ~ 158°F) |
|
Humidity |
40°C @ 95% RH, non-condensing |
|
Dimensions (WxLxH) |
330 x 344 x 160 mm |
|
Weight |
7 kg |
|
Vibration Test |
0.5 Grms, IEC 60068-2-64, 5~500Hz, 0.5hr/axis |
|
Shock Test |
10 Grms, IEC 60068-2-27, half sine, 11ms |
|
Drop Test |
One corner, three edges, six faces (ISTA 2A, IEC-60068-2-32) |
|
IP Rating |
IPX1 |
|
Color |
White |
|
Construction |
Metal + Plastic |
Ordering Information
MAB-T600-B1-1R STD Chassis Kit with RX680R MB & PSU & CPU Fan
RCC-GPU-T1000-01R GPU NVIDIA T1000 8GB graphic card
RCC-GPU-RTXADA-01R NVIDIA RTX2000 ADA
RCC-GPU-RTXADA-02R NVIDIA RTX4000 ADA
RCC-CAP-PCIE-01R SC710N2-L HDMI Capture Card
RCC-CAP-PCIE-02R SC400N4 HDMI Capture Card
RCC-CAP-PCIE-04R SC400N2-L HDMI Capture Card
RCC-CAP-PCIE-05R SC410N4 HDMI Capture Card
RCC-LAN-PCIE-01R Intel 82574 LAN Card
RCC-LAN-PCIE-02R Intel I350AM2 LAN Card
RCC-POE-PCIE-01R Intel I210 PoE Card
RCC-POE-PCIE-02R Intel I350 PoE Card
RCC-WIFI-M2BT-01R Intel WIFI module with kits
RCC-WIFI-PCIE-01R WiFI set ENL-5400PCI
