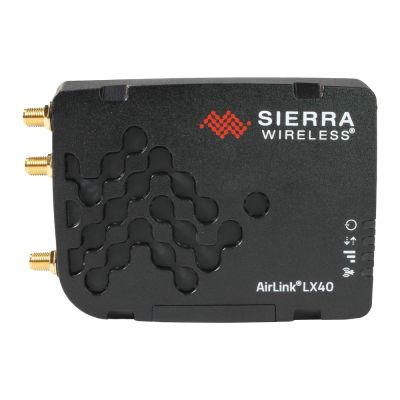

AirLink LX40 CAT 4 LTE Router (1104183)

$565.00
In stock
SKU:
LX40

Choose Option:

Please select your option

The AirLink LX40 is a small LTE router that provides "out-of-the-box" LTE and Wi-Fi connectivity and is easy to set up. In fixed, protected environments, the LX40 supports security, digital signage, and IoT applications.


Enquire Now
Enquire about this product:

The AirLink LX40 is a small LTE router that provides "out-of-the-box" LTE and Wi-Fi connectivity and is easy to set up. In fixed, protected environments, the LX40 supports security, digital signage, and IoT applications.

The LX40 offers purpose-built, secure, managed LTE networking for applications such as cameras, security, POS terminals, and smart lockers. The LX40 is also ideal for connecting industrial, remote data logging, and sensing equipment in secure (indoor) locations, and it enables IoT data processing at the edge.

Compatible Technologies:

  • ALEOS Application Framework
  • M2M cloud: AirVantage Ready certified (LX40)

Key Features:

  • Most compact LTE router in its class supporting 150Mbps/50Mbps (DL/UL)
  • Power-over-Ethernet— Powered Device capability, ideal for fixed low-power applications
  • Supports edge processing and IoT applications with ALEOS Application Framework (AAF)
  • Remote, secure network management in the cloud or in the enterprise
  • Includes the first year of network management and support with AirLink Complete

This product is listed in 5G/LTE Gateways, Digital Signage, Industrial Automation, Transport

North America
EMEA
Australia & New Zealand
CELLULAR
Peak D/L
Up to 150 Mbps, Cat-4 (WP7610)
Up to 150 Mbps, Cat-4 (WP7607)
Up to 150 Mbps, Cat-4 (WP7609)
Peak U/L
Up to 50 Mbps
Up to 50 Mbps
Up to 50 Mbps
4G LTE
Frequency Bands
B1, B4, B5, B12, B13, B14, B17, B66
B1, B3, B7, B8, B20, B28
B1, B3, B5, B7, B8, B28
3G WCDMA/HSPA+
Frequency Bands
B2, B4, B5
B1, B8
B1, B5, B8
2G GSM/GPRS
Frequency Bands
900, 1800
Approvals
Regulatory
FCC, IC, PTCRB
GCF, CE
GCF, RCM
Carrier
AT&T, Verizon, T-Mobile

Part Numbers
Part Numbers
1104579, 1104573 (WiFi)
1104181, 1104182 (Wi-Fi)
1104183, 1104184 (Wi-Fi)
HOST INTERFACES

1 Gigabit RJ-45 Ethernet Port (POE)
USB 2.0 Micro-B Connector
2 SMA antenna connectors (cellular, diversity)
1 RP SMA antenna connector (Wi-Fi)
SECURITY

Remote Authentication (LDAP, RADIUS, TACACS+) DMZ
Inbound and Outbound Port filtering
Inbound and Outbound Trusted IP
MAC Address Filtering
PCI compatible
Secure Firmware Update
WI-FI (OPTIONAL)

Dual Band 2.4/5GHz Wi-Fi
802.11 b/g/n/ac (Wave2 Client Mode)
Support for 10 clients, WPA2 Enterprise
Output power 16dBm per channel
Access Point or Client Mode (Wi-Fi as WAN)
Single SSID Support
Captive Portal
LAN (ETHERNET/USB)

DHCP Server
IP Passthrough
VLAN
Host Interface Watchdog
PPPoE
ENVIRONMENTAL
Operating Temperature
-20°C to +65°C / -4°F to +149°F (+60°C / +140°F when using PoE)
Storage Temperature
-40°C to +85°C / -40°F to +185°F
Humidity
90% RH @ 60°C

Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
IP21 rated ingress protection
POWER
Input/Operating Voltage
7 to 36 VDC
Power Modes
Low voltage disconnect to prevent battery drain
Built-in protection against voltage transients
Power-over-Ethernet (PoE) powered device
Ignition Sense with time delay shutdown
INPUT/OUTPUT

Configurable I/O pin on power connector
  • Digital Inputs: ON Voltage: 2.7 to 36 VDC
  • Configurable Pull-ups for dry contact input
  • Digital Open Collector Output > sinking 500 mA
  • Analog Inputs: 0.5-36VDC (range selectable)
NETWORK AND ROUTING

Network Address Translation (NAT) Reliable Static Route
Port Forwarding Dynamic DNS
Policy Routing Verizon PNTM
NEMO/DMNR IPV6 Gateway
VRRP
VPN

IPsec, GRE, and OpenVPN Client
Up to 5 concurrent tunnels
Split Tunnel
Dead Peer Detection (DPD)
ROUTER MANAGEMENT INTERFACES

Local web user interface
AT Command Line Interface (Telnet/SSH)
SNMP
SMS Commands
APPLICATION FRAMEWORK

ALEOS Application Framework (AAF)
LUA Scripting Language
EVENTS ENGINE

Custom event triggers and reports
Configurable interface, no programming
Event Types
Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
Report Types
RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
Event Actions
Drive Relay Output
INDUSTRY CERTIFICATIONS
Safety
IECEE Certification Bodies Scheme (CB Scheme), UL 60950
Vehicle Usage
E-Mark (UN ECE Regulation 10.04), ISO7637-2, SAE J1455 (Shock, Vibration, Electrical)
Environments
RoHS2, REACH, WEEE
Public Safety
FirstNet®
SUPPORT AND WARRANTY

1 year standard warranty with up to 5 years extended warranty with current AirLink Complete subscription. Unrestricted critical firmware updates.
ACCESSORIES
In The Box
LX40, DC Power Cable and Quick Start Guide
Other Accessories (sold separately)
  • 2000579 AC Adapter, 12VDC
  • 6001221 DIN Rail Bracket
  • 6001110 Cellular Paddle Antenna
  • 6001111 Wi-Fi 2.4/5Hz Paddle Antenna
For antenna options visit: sierrawireless.com/antennas
CONSTRUCTION

Polycarbonate housings that meet MIL-810/IP21 environmental standards.
DIMENSIONS

103 mm (111 mm including connectors) x 79 mm x 25 mm 4.1 in (4.4 in including connectors) x 3.1 in x 1.0 in
Weight: 250g

*For carrier specific band support please refer to the hardware user guide.
