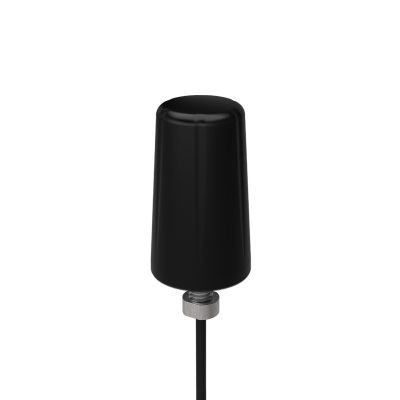

LPBSC-6-60 IP68 4G/5G Low Profile Antenna
Omnidirectional antenna covering 617-960/1427-6000MHz
Key Features:
- Low-profile wideband antenna
- 2G/3G/4G/5G antenna solution covering global bands
- 2m cable length with SMA (m)
- Designed for bracket or cabinet/enclosure installation
- Integrated double shielded coaxial cable
- IP68 rated (5m/7 days)
The LPBSC-6-60-[X] is an omnidirectional broadband antenna that operates across a wide frequency range of 617–960 MHz and 1427–6000 MHz. It is specifically engineered for deployment in harsh, flood-prone environments, making it ideal for applications such as sewer monitoring and water metering.
The antenna supports wall, mast, or panel mounting, either using a customer-supplied bracket or directly onto a device or enclosure. Its exposed metal components are constructed from 316 stainless steel, offering excellent resistance to corrosion.
Thanks to its omnidirectional radiation pattern, the antenna can be easily installed in any orientation without the need for directional alignment.
The LPBSC-6-60-[X] comes with an integrated ultra-low-loss FR CS29 coaxial cable in various lengths. The cable is terminated with a specialised SMA plug designed to prevent water ingress by sealing the connection and stopping moisture from wicking up the cable during submersion.
When properly installed with the SMA plug fully connected and mounted on a bracket, the antenna meets IP68 protection standards (submersible up to 5 meters for 7 days).
|
ELECTRICAL DATA |
|
|---|---|
|
Max Input Power(W) |
30 |
|
Typical VSWR |
<3:1 |
|
Frequency Range | Gain |
617 – 960MHz | ; 1427 – 6000MHz | |
|
Cellular LTE Elements |
SiSo |
|
WIFI Elements |
No |
|
GPS DATA |
|
|
Number of GPS Elements |
No |
|
MECHANICAL DATA |
|
|
Colour |
Black |
|
Height |
82 (mm) | 3.23 (in) |
|
Diameter |
48 (mm) | 1.89 (in) |
|
Operating Temperature |
-40°/ +85°C (-40.0°/ +185.0°F) |
|
CABLE DATA |
|
|
Cable Type (LTE) |
FR CS29 |
|
TERMINATION DATA |
|
|
Connector (LTE) |
SMA (m) |
|
MOUNTING DATA |
|
|
Mounting Type Fixed |
Panel |
|
Mounting Methods |
Panel |
|
APPROVALS DATA |
|
|
IP Rating |
IP68 |
|
TECHNOLOGY DATA |
|
|
Technology |
4G/5G; 5G; 868-923MHz; Band 71 600MHz ready; CBRS |
LPBSC-6-60-2SPIP
IP68 Rated 4G/5G Low Profile Antenna 617-960 / 1427-6000 2m SMA Plug
