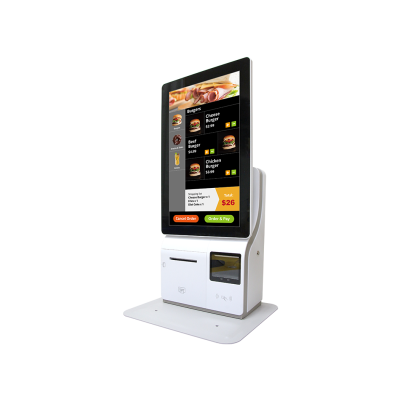

ISS-15K5 15.6" Rockchip Touch Fanless Desktop Kiosk

In stock
SKU:
ISS-15K5

15.6" Rockchip RK3568 Multi-Touch Fanless Desktop self order kiosk

Key Features:

  • 15.6-inch screen, IPS LCD 1080p Resolution
  • Screen is covered with white tempered glass, high permeability, anti-scratch
  • Built-in 80mm thermal printer, printing speed 250mm/s (Max)
  • Built-in 1D/2D scanner
  • Built-in NFC Card reader
  • Reserved rich interface for peripherals such as a cash drawer

Enquire Now
Enquire Now

The Avalue ISS-15K5 is a sleek and modern 15.6-inch self-service kiosk designed to streamline operations and improve customer engagement in retail, hospitality, and healthcare environments. Built around the efficient Rockchip RK3568 Quad-core Cortex-A55 processor, the ISS-15K5 delivers responsive performance for a wide range of interactive applications.

Its 15.6-inch Full HD IPS display offers crisp, vibrant visuals, while the projected capacitive multi-touch panel ensures smooth and accurate touch interaction. The touch screen is protected by durable anti-scratch tempered glass, giving the device a seamless and professional look suitable for any customer-facing setting.

The ISS-15K5 supports various self-service functions, including self-checkout, order entry, product browsing, digital signage, and check-in systems. Automating repetitive tasks helps reduce labour costs, minimise human error, and improve overall service efficiency. Whether deployed in a retail store, quick-service restaurant, or hospital reception area, the ISS-15K5 enhances the user experience while offering businesses a reliable and scalable self-service solution.

Engineered for continuous operation and easy integration, the ISS-15K5 is a dependable choice for companies seeking to modernise their customer interaction points.




System Information
  • Processor: Rockchip RK3568 Quad-core Cortex-A55 up to 2.0GHz
  • System Memory: Onboard 4GB RAM
  • Speaker: 4Ω 3W Speaker
Storage
  • Solid State Drive: Onboard 32GB eMMC
Power Requirement
  • DC Input: +24V DC input
  • DC Input Connector: Mini Din 4-pin DC Jack
  • Power Mode: ATX
Software Support
  • OS: Android 11
Certification
  • Certification: InformationCE/FCC/VCCI/BSMI
External I/O
  • USB Port: 4 x USB
  • LAN Port: 1 x 10/100M by RJ-45
  • Switch: 1 x Power Button, 1 x Printer Door Button
  • DC in Connector: +24V DC in, 4 pin
  • Others: 1 x RJ11 for COM, 1 x RJ12 for Cashdrawer
Peripheral
  • Thermal Printer: Automatic paper cutting (full cut /half cut), printing paper width: 79.5±0.5mm, printing
    width: 72mm, paper roll specification: outer diameter--ф80mm (max), printing speed:
    250mm/s (Max), printing density: 8 dots/mm, print dots: 576dots/line
  • NFC reader: Support agreement:ISO14443A
    Support card :Mifare(1K/4K);NXP S50,NXP S70,CPU card
    Interface: USB
    working frequency :13.56MHZ
  • 2D scanner: 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 (ASCII full code),
    Code 32, Trioptic Code 39, Interleaved Code 25, Industry 25 Code, Matrix 25, Codabar
    (NW7), 128, UCC/EAN 128 (GS1-128), ISBT128, 93, 11 (USD-8), MSI/Plessey, UK/Plessey,
    China Post code, GS1 DataBar (formerly: RSS) series
    2D: PDF417, MicroPDF4
Panel
  • LCD Size: 15.6", 16:9
  • LCD Control Board: LCD Built-in
  • B/L Inverter/Converter: LCD Built-in
  • Resolution: 1920 x 1080
  • Touch Screen: 10points G+G Capacitive touch screen
  • Touch Controller: Touch Built-in
Wireless Communication
  • WLAN: 2.4G,802.11b/g/n
  • Bluetooth: BT4.2
Mechanical & Environmental
  • Operating Temp.: 0°C ~ 40°C (32°F ~ 104°F)
  • Storage Temp.: -10°C ~ 60°C (14°F ~ 140°F)
  • Operating Humidity: 40°C @ 95% Relative Humidity, Non-condensing
  • Dimension (W x L x H): 300 x 250 x 599.9mm
  • Weight: 6 Kg
  • IP Rating: Front IP65
  • Power Mode: ATX
  • System Fan: Fanless
  • Construction - Front: Plastic + ABS
  • Construction - Rear: Plastic + ABS
Component
  • Adapter: AC/DC 96W adapter 24V/4A

ISS-15K5

15.6" Rockchip Touch Fanless Desktop Kiosk
