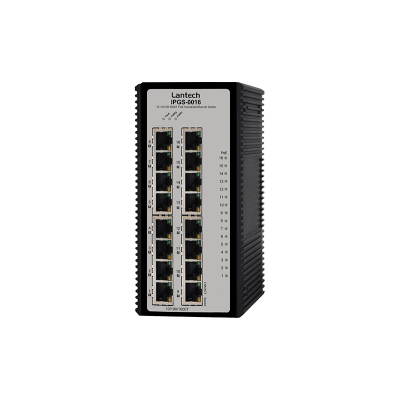

16 10/100/1000T PoE at/af Industrial Unmanaged Ethernet Switch

Key Features:

Support IEEE802.3at/af up to 30W per port
Max PoE budget 240W at 48V, 100W at 24V, 80W at 12V input
Galvanic isolation protection for dual input.
Relay alarm output for power fail and alarm
IP30 metal housing with DIN rail and Wall-mount** design
Provides EFT and ESD protection

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The Lantech IPGS-0016 is a high performance 16 10/100/1000T industrial Ethernet switch with w/16 PoE 802.3af/at ports. The unmanaged PoE Ethernet switch is equipped with P.S.E capacity. It is designed for data communication within vehicles, to facilitate data transfer and Ethernet connectivity as well as expandability. The IPGS-0016-24V accepts dual power input of 9~36VDC and is compliant with ISO 7637-2 which protects switch from being damaged by high voltage that could be found at vehicle cranky start.

Hardened Industrial Design with Dual Power Inputs and Enhanced Protection

The unit provides ±2000V EFT and ±6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet. It has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, Wireless backhaul, Semi-conductor factory and assembly lines. The unit is also designed with dual redundant power inputs supporting 44~56VDC (48V model) or 9~36VDC (24V model). Other features include:

±2000 VDC EFT and ±6000 VDC ESD protection
Widened temperature range of -40°C~75°C / -40°F~167°F (-E model)
Galvanic isolation to shield from transients

PoE Functionality

This switch supports a PoE budget of up to 240W at 48V input, 100W at 24V input and 80W at 12V input and includes the following PoE aspects:

10/100/1000T: 16 x ports RJ-45 with Auto MDI/MDI-X function
Power & P-Fail connector: 1 x 6-pole terminal block
Up to 30W per port
Compliant with 802.3 af/at standard

Other Notable Features

Relay alarm output for power fail and alarm
Back-plane (Switching Fabric): 32Gbps
Optional E-marking* certificate for vehicle application with ISO 7637-2 compliance (-24V model)
IP30 metal housing with DIN rail and Wall-mount** design

This product is listed in Ethernet Switches

Specifications

Hardware Specifications

Standards	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX IEEE802.3x Flow Control and Back Pressure IEEE802.3af/at Power over Ethernet
Switch Architecture	Back-plane (Switching Fabric): 32Gbps
Transfer Rate	14,880pps for Ethernet port 148,800pps for Fast Ethernet port
Mac Address	16K MAC address table
Connectors	10/100/1000T: 16 x ports RJ-45 with Auto MDI/MDI-X function Power & P-Fail connector: 1 x 6-pole terminal block
Network Cable	10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m)
LED	Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red); Ethernet port: Link/Activity (Green)
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	-20°C~60°C / -4°F~140°F (Standard model) -40°C~75°C / -40°F~167°F(-E model)
Storage Temperature	-40°C~85°C / -40°F~185°F
Power Supply	Dual 9~36VDC (24V model) Dual 44~56VDC (48V model)
PoE Budget	240W at 48V input (50-56VDC input is recommended for 802.3at 30W applications); 100W at 24V input; 80W at 12V input Higher PoE budget can be applied upon request. **
PoE pin assignment	RJ-45 port # 1~#16 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W. (-14 model RJ-45 port # 1~#14 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W) Positive (VCC+): RJ-45 pin 1,2 Negative (VCC-): RJ-45 pin 3,6
Power Consumption	15W exclude PoE loads
Galvanic Isolation	Between power input and system/case ground Between Ethernet port and system/case ground Between power input and Ethernet port
Case Dimension	Metal case IP-30 74 (W) x 105 (D) x 152 (H) mm
Weight	900g
Installation	DIN Rail and Wall Mount** Design
Relay Alarm	Provides one relay output for power fail and alarm. Alarm Relay current carry ability: 1A @ DC24V
EMI & EMS	FCC Class A, CE EN55011, CE EN55032, CE EN55024, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8, CE EN61000-6-2, CE EN61000-6-4
Safety	IEC/BS EN IEC 62368-1 2020/A11:2020
Vehicle Certificate	E-Marking with E13 granted approval (-24V model)
MTBF	908,270 hrs (standards: IEC 62380)
Warranty	5 years
