IPES-3016 L2+ Industrial Managed Ethernet Switch

In stock

SKU:

IPES-3016

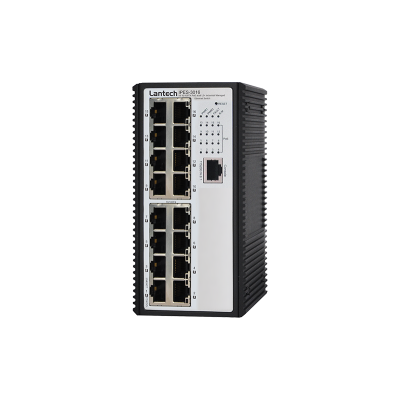

16 10/100TX L2+ PoE at/af Industrial Managed Ethernet Switch

Key Features:

Support IEEE802.3at/af up to 30W per port
Max PoE budget 240W at 48V, 100W at 24V, 80W at 12V input
Enhanced G.8032 ring protection
PoE management incl. Detection and Scheduling
Miss-wiring avoidance & node failure protection
Dual power input with EFT and ESD protection

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The Lantech IPES-3016 is a high performance L2+ (Gigabit uplink) switch with 16 10/100TX w/16 PoE 802.3af/at Injectors which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports train ring, enhanced mode, multiple VLAN model with easy configuration. The comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, TACACS+*, SSH/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ** are supported and also required in large network. It also supports Cisco Discovery Protocol (CDP) for Ciscoworks to detect the switch info and show on L2 map topology.

Hardened Industrial Design with Dual Power Inputs and Enhanced Protection

Lantech IPES-3016 features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines. The unit is also designed with dual redundant power inputs supporting 44~56VDC (48V model) or 9~36VDC (24V model). It provides high EFT and ESD protection and has an optional widened temperature range of -40°C~75°C (-40°F~167°F) included in the -E model.

Advanced PoE Management

With a PoE budget of up to 240W, the switch supports intelligent PoE management which includes:

PoE detection and scheduling
Scheduling based on user-defined timetables
Per-port power monitoring (voltage, current, power, temp.)
Compliant with 802.3 af/at standard

Network features

This devices supports a wide range of network features, including:

LACP link aggregation
DHCP server & DHCP Option82
IGMP v3/router port
DHCP Snooping
PPort based DHCP distribution
Mac based DHCP server
SSH v2/SSL, HTTPS, INGRESS ACL L2/L3

Versatile Features for Maintenance & Deployment

Bandwidth Control: Ingress packet filter and egress rate limit as well as broadcast/multicast packet filter control.
Miss-wiring avoidance: Disables ring automatically when the pre-set ring configuration has failed or looped due to miss-wiring.
Node failure protection: Ensures the switches in a ring to survive after power breakout is back.
Loop protection: prevents the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.
Configuration backup and restoration: Supports editable configuration file for system quick installation.

User Friendly GUI, Auto Topology Drawing and Optional Environmental Monitoring

The user-friendly UI, innovative auto topology drawing and topology demo makes the switch much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line. It supports environmental monitoring for actual input voltage, current, ambient temperature and total power load.

This product is listed in Ethernet Switches

Specifications

Hardware Specifications

Standards	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX IEEE802.3x Flow Control and Back Pressure IEEE802.3ad Port trunk with LACP IEEE802.1d Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1s Multiple Spanning Tree IEEE802.3ad Link Aggregation Control Protocol (LACP) IEEE802.1AB Link Layer Discovery Protocol (LLDP) IEEE802.1X User Authentication (Radius) IEEE802.1p Class of Service IEEE802.1Q VLAN Tag IEEE802.3at/af Power over Ethernet
Switch Architecture	Back-plane (Switching Fabric): 3.2Gbps
Transfer Rate	14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Fiber Ethernet port
Packet Buffer	8Mbits
Mac Address	16K MAC address table
Jumbo frame	10KB
Connectors	10/100TX: 16 x ports RJ-45 PoE with Auto MDI/MDI-X function RS-232 connector: RJ-45 type Power connector: 1 x 6-pole terminal block DIDO : 1 x 6-pole terminal block
Network Cable	10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m)
LED	Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red) Ethernet port: Link/Activity (Green), Speed (Green); R.M. indicator (Green)
DI/DO	2 Digital Input (DI) : Level 0: -30~2V / Level 1: 10~30V Max. input current:8mA 2 Digital Output(DO): Open collector to 40 VDC, 200mA
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	-20°C~60°C / -4°F~140°F (Standard model) -40°C~75°C / -40°F~167°F(-E model)
Storage Temperature	-40°C~85°C / -40°F~185°F
Power Supply	44~56VDC (48V model) 9~36VDC (24V model)
PoE Budget	240W for 44~56V input(48V model) (50-56VDC input is recommended for 802.3at 30W applications) 100W for 9~36VDC at 24V input(24V model) Higher PoE budget can be applied upon request. **
PoE pin assignment	RJ-45 port # 1~ # 16 support IEEE 802.3at/af End-point. Per port provides up to 30W Positive (VCC+): RJ-45 pin 1,2. Negative (VCC-): RJ-45 pin 3,6.
Power Consumption	10W
Case Dimension	Metal case. IP-30, 74 (W) x 135 (D) x 152 (H) mm (48V model) 74 (W) x 165 (D) x 152 (H) mm (24V model)
Weight	1000g (48V model) 1250g (24V model)
Installation	DIN Rail and Wall Mount** Design
EMI & EMS	FCC Class A, CE EN55032, CE EN55024, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8, CE EN61000-6-2
Vehicle Certificate	E13 marking (24V model)
MTBF	615,724 hours (48V model) 548,636 hours (24V model) (standards: IEC62380)
Warranty	5 years

Downloads

Datasheet

Ordering Information

ORDERING INFORMATION

P/N	Model name	Description
8351-032	IPES-3016-48V	16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; 44~56VDC power input
8351-0321	IPES-3016-48V-E	16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; 44~56VDC power input
8351-0322	IPES-3016-48V-M	16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Environmental monitoring; 44~56VDC power input
8351-0323	IPES-3016-48V-M-E	16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Environmental monitoring; 44~56VDC power input
8351-033	IPES-3016-24V	16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; 9~36VDC power input
8351-0331	IPES-3016-24V-E	16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; 9~36VDC power input
8351-0332	IPES-3016-24V-M	16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Environmental monitoring; 9~36VDC power input
8351-0333	IPES-3016-24V-M-E	16 10/100TX PoE at/af up to 30W L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Environmental monitoring; 9~36VDC power input

OPTIONAL ACCESSORIES - DIN Rail Power

Model name	Description
NDR-480 Series	480W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-240 Series	240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-120 Series	120W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)
NDR-75 Series	75W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)

OPTIONAL ACCESSORIES - Wall Mount Bracket

Model name	Description
MBAK19003	Wall mount bracket for 74(W) x 105 (D) x 152 (H) mm / 96 (W) x 105 (D) x 152 (H) mm Industrial switches
