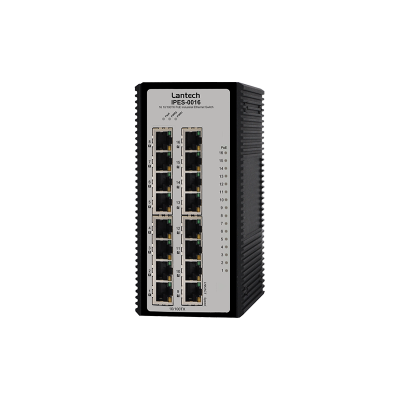

IPES-0016 Industrial Unmanaged Ethernet Switch
16 10/100TX PoE at/af Industrial Unmanaged Ethernet Switch
Key Features:
- ISO7637-2 compliance (24V model)
- Support IEEE802.3at/af up to 30W per port
- Max PoE budget 240W at 48V, 100W at 24V
- Galvanic isolation protection for dual input.
- Relay alarm output for power fail and alarm
- IP30 metal housing with DIN rail and Wall-mount** design
- Provides EFT and ESD protection
The Lantech IPES-0016 is a high performance switch with 16 10/100TX w/16 PoE 802.3af/at ports. It provides the option of a 24V model (9~36V DC supply) or a 48V model (45~56V DC supply), each making use of dual power input and a sturdy design for industrial application. The E-marking* certificate makes it the most suitable switch for bus, carriage, other vehicles application as well as for industrial areas.
PoE Functionality
With a Max PoE budget of 240W at 48V and 100W at 24V, the switch supports supports IEEE802.3at/af standard which can feed HI-power up to 30W at each PoE port for big power consumption devices like PTZ IP camera, High power wireless AP etc. It also incorperates efficient PoE configuration when ignition off, which supports optional PoE feeding OFF timer (1/5/10mins or default by 60mins) at ignition off mode to prevent car battery drain-out. (- IGN model)
Hardened Industrial Design with Dual Power Inputs and Enhanced Protection
Lantech IPES-0016 features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines. The unit is also designed with dual power inputs supporting 44~56VDC (48V model) or 9~36VDC (24V model). Other features include:
- High EFT and ESD protection
- Galvanic isolation to shielf from transients
- Optional E-marking certificate for vehicle application and use within industrial areas.
- Widened temperature range of -40°C~75°C / -40°F~167°F (-E model)
- Relay alarm output for power fail and alarm
Hardware Specifications
|
Standards |
IEEE802.3 10Base-T Ethernet |
|
Switch Architecture |
Back-plane (Switching Fabric): 3.2Gbps |
|
Transfer Rate |
14,880pps for Ethernet port |
|
Mac Address |
16K MAC address table |
|
Connectors |
10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function |
|
Network Cable |
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable |
|
LED |
Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red); |
|
Operating Humidity |
5% ~ 95% (Non-condensing) |
|
Operating Temperature |
-20°C~60°C / -4°F~140°F (Standard model) |
|
Storage Temperature |
-40°C~85°C / -40°F~185°F |
|
Power Supply |
Dual 9~36VDC (24V model) |
|
PoE Budget |
240W at 48V input (50-56VDC input is recommended for 802.3at 30W applications); 100W at 24V input; 80W at 12V input |
|
PoE pin assignment |
RJ-45 port # 1~#16 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W (-14 Model: RJ-45 port # 1~#14 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W) |
|
Power Consumption |
13W exclude PoE loads |
|
Galvanic Isolation |
Between power input and case ground |
|
Case Dimension |
Metal case IP-30 |
|
Weight |
900g |
|
Installation |
DIN Rail and Wall Mount** Design |
|
Relay Alarm |
Provides one relay output for power fail and alarm. |
|
EMI & EMS |
FCC Class A, CE EN55011, |
|
Safety |
IEC/BS EN IEC 62368-1 2020/A11:2020 |
|
Vehicle Certificate |
E-Marking* with E13 granted approval (-24V model) |
|
MTBF |
927,784 hrs (standards: IEC 62380) |
|
Warranty |
5 years |
ORDERING INFORMATION
|
P/N |
Model name |
Description |
|---|---|---|
| 8351-128 | IPES-0016-24V | 16 10/100TX Industrial Ethernet Switch w/16 PoE at/af up to 30W, dual 9~36VDC input; compliant with ISO7637-2; -20°C to 60°C |
| 8351-1281 | IPES-0016-14-24V | 16 10/100TX Industrial Ethernet Switch w/14 PoE at/af up to 30W, dual 9~36VDC input; compliant with ISO7637-2; -20°C to 60°C |
| 8351-1282 | IPES-0016-48V | 16 10/100TX Industrial Ethernet Switch w/16 PoE at/af up to 30W, dual 44~56VDC input; -20°C to 60°C |
| 8351-1283 | IPES-0016-14-48V | 16 10/100TX Industrial Ethernet Switch w/14 PoE at/af up to 30W, dual 44~56VDC input; -20°C to 60°C |
| 8351-129 | IPES-0016-24V-E | 16 10/100TX Industrial Ethernet Switch w/16 PoE at/af up to 30W, dual 9~36VDC input; compliant with ISO7637-2; -40°C to 75°C |
| 8351-1291 | IPES-0016-14-24V-E | 16 10/100TX Industrial Ethernet Switch w/14 PoE at/af up to 30W, dual 9~36VDC input; compliant with ISO7637-2; -40°C to 75°C |
| 8351-1292 | IPES-0016-48V-E | 16 10/100TX Industrial Ethernet Switch w/16 PoE at/af up to 30W, dual 44~56VDC input; -40°C to 75°C |
| 8351-1293 | IPES-0016-14-48V-E | 16 10/100TX Industrial Ethernet Switch w/14 PoE at/af up to 30W, dual 44~56VDC input; -40°C to 75°C |
OPTIONAL ACCESSORIES - DIN Rail Power
|
Model name |
Description |
|---|---|
| NDR-480 Series | 480W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C) |
| NDR-240 Series | 240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C) |
| NDR-120 Series | 120W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet) |
| NDR-75 Series | 75W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet) |
