IP Single Lens Global Shutter LPR Camera

In stock
SKU:
GPCL-080A4GN, GPCL-160A4GN, GPCL-250A4GN
Brand: GPI Korea
Enquire Now

Please fill in your details below, we will get back to you as soon as possible

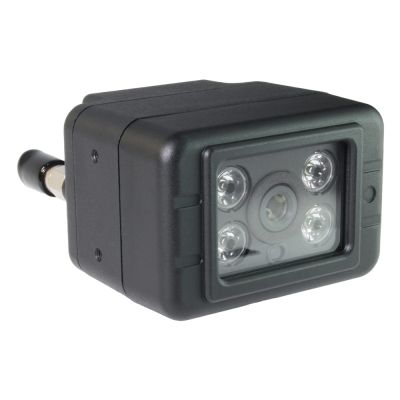

The GPCL-xxxA4GN POE Fixed Single Lens LPR Global Shutter camera is suitable for law enforcement, parking and other authorities to track and capture license plates. Rated IP68 and nitrogen-filled to operate and withstand the harshest conditions the high power LED detect virtually all kinds of reflective and non-reflective license plates.
IP-based using OnVif for effective interoperability. Power-over Ethernet (POE) interface allows a single wire
connection for both data Transfer and power transmission. The Global Shutter supports to capture the number plate without distortion while high speed. Optional strobe out can synchronize with the external LED to support a range of applications for the LPR camera.

Available in 8mm, 16mm and 25mm lens configurations.

Image Sensor
3MP 1/1.8” Sony IMX265
Global Shutter CMOS Sensor
Lens 8mm, 16mm or 25mm Lens
755nm 4 x Power IR LED
Number of
Effective Pixels
2064(H) x 1554(V)
approx. 3.18 M pixels
Streaming Quadruple Streaming
Compression H.265, H.264, M-JPEG, JPEG
Resolution
30fps @ 2048x1536, 1920x1080,
1280x1024, 1280x720
Max. Frame Rate 30fps, 25fps
Bit Rate Control VBR, CBR (H.264 only, 32K~12Mbps)
Frequency Control 60hz, 50hz
Privacy Masking 8 privacy zone
Motion Detection On (144 block selection), Off
Day & Night Support TDN (Auto, B&W, Off)
White Balance Auto, Manual
Image Adjustment Hue, Saturation, Brightness, Contrast
Sharpness Level 0~255
Auto Gain Control Level 1~500
Shutter Speed Auto, Manual (1/30~1/24000)
Sense-up Level 0~5
Flip Vertical (On, Off), Horizontal (On, Off)
NETWORK
LAN 10/100-base-T (auto sensing)
Protocol
HTTP,
RTP/RTSP(Uni/Multicast),
TCP/IP(v4/v6), UDP, FTP,
Telnet, HTTPS, RARP, PPPoE,
SNMP, PAP, CHAP, DHCP,
NTP, SMTP client, uPnP & etc
Standard ONVIF (Profile S)
Viewer
Browsers (Microsoft Internet
Explorer), VLC
Security
IP Filtering, HTTPS, Encrypted
& Basic Authentication,
Management White List
OPERATION ENVIRONMENTS
Operating Humidity 0~80% (non-condensing)
Operating
Temperature
-10℃~+70℃
PoE Support
IR LED Strobe-Out A5GN model
Optional [Active High (TTL 3.3
V)]
Power PoE
Power Consumption Max 4.8W

We build to order
