IES-3416DSFP Dual Speed SFP L2+ Industrial Managed Ethernet Switch

In stock
SKU:
IES-3416DSFP

16 10/100TX + 4 Dual Speed SFP Industrial Managed Ethernet Switch

Key Features:

  • Enhanced G.8032 ring protection
  • Miss-wiring avoidance & node failure protection
  • User friendly UI, including auto topology drawing and Complete CLI
  • Optional Environmental Monitoring
  • IP30 metal housing with DIN rail and Wall-mount** design
  • E-marking certificate for vehicle application (24V model)
  • N-key configurator** for upgrading, auto back up /editable restoration without computer

Enquire Now
Enquire Now

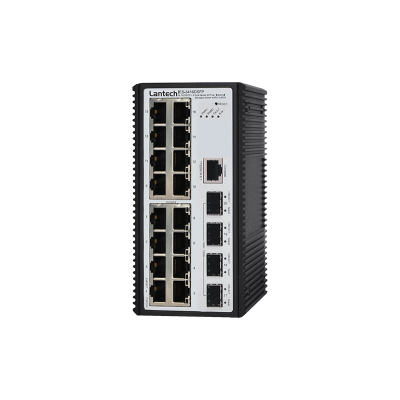

main product photo
We build to order

The Lantech IES-3416DSFP is a high performance L2+ (Gigabit uplink) switch with 16 10/100TX + 4 100/1000M SFP which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports train ring, enhanced mode, multiple VLAN model with easy configuration. The comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, TACACS+**, SSH v2/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ are supported and also required in large network. It also supports Cisco Discovery Protocol (CDP) for Ciscoworks to detect the switch info and show on L2 map topology.

Hardened Industrial Design with Dual Power Inputs and Enhanced Protection

Lantech IES-3416DSFP features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines. The unit is also designed with dual power inputs supporting 9~60VDC (standard model), 9~36VDC (24V model), or 90~305VAC/120~430VDC (HV model). Other features include:

  • High EFT and ESD protection
  • Widened temperature range of -40°C~75°C / -40°F~167°F (-E model)
  • Galvanic isolation to shield from transients

Network features

This devices supports a wide range of network features, including:

  • LACP link aggregation
  • DHCP server & DHCP Option82
  • IGMP v3/router port
  • DHCP Snooping
  • PPort based DHCP distribution
  • Mac based DHCP server
  • SSH v2/SSL, HTTPS, INGRESS ACL L2/L3

Versatile Features for Maintenance & Deployment

  • Miss-wiring avoidance: Disables ring automatically when the pre-set ring configuration has failed or looped due to miss-wiring.
  • Node failure protection: Ensures the switches in a ring to survive after power breakout is back.
  • Loop protection: prevents the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.
  • Configuration backup and restoration: Supports editable configuration file for system quick installation.

User Friendly GUI, Auto Topology Drawing and Optional Environmental Monitoring

The user-friendly UI, innovative auto topology drawing and topology demo makes the switch much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line. It supports environmental monitoring for actual input voltage, current, ambient temperature and total power load.




This product is listed in Ethernet Switches
Specifications

Hardware Specifications

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag

Switch Architecture

Back-plane (Switching Fabric): 11.2Gbps

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Fiber Ethernet port

Packet Buffer

8Mbits

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100TX: 16 x ports RJ-45 with Auto MDI/MDI-X function
Mini-GBIC: 4 x 100/1000 SFP socket with DDM
RS-232 connector: RJ-45 type
Power connector: 1 x 6-pole terminal block
DIDO : 1 x 6-pole terminal block

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

Optical Cable

1.25Gbps:
Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)
Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)
125Mbps:
Multi mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm)
Single mode: 0 to 30 km, 1310 nm (62.5/125 μm)
WDM 1.25Gbps:
Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
WDM 125Mbps:
Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); 0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)

LED

Per unit: Power 1 (Green),
Power 2 (Green), FAULT (Red)
Ethernet port: Link/Activity (Green),
Speed (Green);
Mini-GBIC: Link/Activity (Green)
R.M. indicator (Green)

DI/DO

2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Standard model: Dual 9~60VDC
24V model: Dual 9~36VDC
HV model: Single 90~305VAC/120~430VDC

Power Consumption

10W

Case Dimension

Metal case. IP-30,
Standard/24V model: 74 (W) x 135 (D) x 152 (H) mm
HV model: 74 (W) x 165 (D) x 152 (H) mm

Weight

1000g

Installation

DIN Rail and Wall Mount** Design

EMI & EMS

FCC Class A,
CE EN55032, CE EN55024,
CE EN61000-4-2, CE EN61000-4-3,
CE EN61000-4-4, CE EN61000-4-5,
CE EN61000-4-6, CE EN61000-4-8,
CE EN61000-6-2

Vehicle Certificate

E13 marking (24V model)

MTBF

615,724 hours

Warranty

5 years
Downloads
pdf
Datasheet
Ordering Information

ORDERING INFORMATION

P/N

Model name

Description
8350-657 IES-3416DSFP 16 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet Switch; 9~60VDC; -20°C to 60°C
8350-658 IES-3416DSFP-E 16 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet Switch; 9~60VDC; -40°C to 75°C
8350-659 IES-3416DSFP-M 16 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet Switch; 9~60VDC; -20°C to 60°C; w/ Environmental monitoring
8350-654 IES-3416DSFP-M-E 16 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet Switch; 9~60VDC; -40°C to 75°C; w/ Environmental monitoring
8350-652
 IES-3416DSFP-24V 16 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet Switch; 9~36VDC; -20°C to 60°C
8350-6521
 IES-3416DSFP-24V-E 16 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet Switch; 9~36VDC; -40°C to 75°C
8350-6522
 IES-3416DSFP-24V-M 16 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet Switch; 9~36VDC; -20°C to 60°C; w/ Environmental monitoring
8350-6523
 IES-3416DSFP-24V-M-E 16 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet Switch; 9~36VDC; -40°C to 75°C; w/ Environmental monitoring
8350-6571 IES-3416DSFP-HV 16 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet Switch; Single 90~305VAC/120~430VDC; -20°C to 60°C
8350-6572 IES-3416DSFP-HV-E 16 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet Switch; Single 90~305VAC/120~430VDCC; -40°C to 75°C
8350-6573 IES-3416DSFP-M-HV 16 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet Switch; Single 90~305VAC/120~430VDC; -20°C to 60°C; w/ Environmental monitoring
8350-6574 IES-3416DSFP-M-HV-E 16 10/100TX + 4 Dual Speed SFP L2+ Industrial Managed Ethernet Switch; Single 90~305VAC/120~430VDC; -40°C to 75°C; w/ Environmental monitoring
8850-100 N-key Configurator RJ45 connector dongle for firmware upgrade, auto/editable configuration backup and restoration; -20°C to 60°

OPTIONAL ACCESSORIES - DIN Rail Power

Model name

Description
MDR-40 Series 40W Single Output Industrial Din Rail Power; 85-264VAC / 120-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 4% per degree from 60°C ~ 70°C)
MDR-20 Series 20W Single Output Industrial Din Rail Power; 85-264VAC / 120-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)

OPTIONAL ACCESSORIES - Mini GBIC (SFP)

P/N

Description

P/N

Description
8330-162-V1 MINI GBIC 1000SX (LC/0.5KM) Transceiver 8330-186-V1 1.25Gbps BiDi SFP 20KM Transceiver (WDM 1310)
8330-163-V1 MINI GBIC 1000SX2 (LC/2KM) Transceiver 8330-187-V1 LTSFP-1000BX-20KM Transceiver (WDM 1550)
8330-165-V1 MINI GBIC 1000LX (LC/10KM) Transceiver 8330-180-V1 LTSFP-1000BX-40KM Transceiver (WDM 1310)
8340-0591-V1 MINI GBIC 1000LHX (LC/40KM) Transceiver 8330-182-V1 LTSFP-1000BX-40KM Transceiver (WDM 1550)
8330-166-V1 MINI GBIC 1000XD (LC/50KM) Transceiver 8330-181-V1 LTSFP-1000BX-60KM Transceiver (WDM 1310)
8330-169-V1 MINI GBIC 1000XD (LC/60KM) Transceiver 8330-183-V1 LTSFP-1000BX-60KM Transceiver (WDM 1550)
8330-167-V1 MINI GBIC 1000ZX (LC/80KM) Transceiver 8330-184-V1 LTSFP-1000BX-80KM Transceiver (WDM 1490)
8330-170-V1 MINI GBIC 1000EZX (120KM) Transceiver 8330-185-V1 LTSFP-1000BX-80KM Transceiver (WDM 1550)
8330-168-V1 MINI GBIC 10/100/1000T (100m) Transceiver 8330-071-V1 125Mbps BiDi SFP 2KM (WDM 1310) Transceiver
8330-060-V1 100Base FX 2KM, Multi-mode, LC Transceiver 8330-072-V1 125Mbps BiDi SFP 2KM (WDM 1550) Transceiver
8330-065-V1 100Base FX 5KM, Multi-mode, LC Transceiver 8330-069-V1 125Mbps BiDi SFP 20KM (WDM 1310) Transceiver
8330-061-V1 100Base LX 30KM, Single-mode, LC Transceiver 8330-068-V1 125Mbps BiDi SFP 20KM (WDM 1550) Transceiver
8330-059-V1 100Base LX 60KM, Single-mode, LC Transceiver 8330-080-V1 125Mbps BiDi SFP 40KM (WDM 1310) Transceiver
8330-197-V1 1.25Gbps BiDi SFP 0.5KM Transceiver (WDM 1310) 8330-082-V1 125Mbps BiDi SFP 40KM (WDM 1550) Transceiver
8330-198-V1 1.25Gbps BiDi SFP 0.5KM Transceiver (WDM 1550) 8330-081-V1 125Mbps BiDi SFP 60KM (WDM 1310) Transceiver
8330-195-V1 1.25Gbps BiDi SFP 2KM Transceiver (WDM 1310) 8330-083-V1 125Mbps BiDi SFP 60KM (WDM 1550) Transceiver
8330-196-V1 1.25Gbps BiDi SFP 2KM Transceiver (WDM 1550) 8330-084-V1 125Mbps BiDi SFP 80KM (WDM 1310) Transceiver
8330-188-V1 1.25Gbps BiDi SFP 10KM Transceiver (WDM 1310) 8330-085-V1 125Mbps BiDi SFP 80KM (WDM 1550) Transceiver
8330-189-V1 1.25Gbps BiDi SFP 10KM Transceiver (WDM 1550) 8330-191-V1 Dual Speed SFP 100M/1000M-LX 10KM Transceiver

OPTIONAL ACCESSORIES - Wall Mount Bracket

Model name

Description
MBAK19003 Wall mount bracket for 74(W) x 105 (D) x 152 (H) mm / 96 (W) x 105 (D) x 152 (H) mm Industrial switches
MBAK19004 19” Rack Mounting Kit for 74x105x152mm/74x135x152mm Industrial Ethernet Switch
