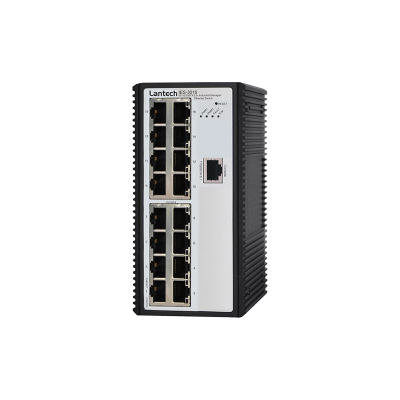

IES-3016 L2+ Industrial Managed Ethernet Switch
16 10/100TX L2+ Industrial Managed Ethernet Switch
Key Features:
- Enhanced G.8032 ring protection
- Miss-wiring avoidance & node failure protection
- User friendly UI, including auto topology drawing and Complete CLI
- Optional Environmental Monitoring
- IP30 metal housing with DIN rail and Wall-mount** design
- E-marking certificate for vehicle application (24V model)
The Lantech IES-3016 is a high performance L2+ (Gigabit uplink) switch with 16 10/100TX which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms in single ring while also supports train ring, enhanced mode, multiple VLAN model with easy configuration. The comprehensive QoS, QoS by VLAN, advanced security including INGRESS/EGRESS ACL L2/L3, TACACS+*, SSH/SSL, Mac based DHCP server, DHCP Option 82, DHCP server, IGMPv1/v2/v3/router port, QinQ** are supported and also required in large network. It also supports Cisco Discovery Protocol (CDP) for Ciscoworks to detect the switch info and show on L2 map topology.
Hardened Industrial Design with Dual Power Inputs and Enhanced Protection
Lantech IES-3016 features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, substation, steel automation, aviation, mining and process control. It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines. The unit is also designed with dual redundant power inputs supporting 44~56VDC (48V model) or 9~36VDC (24V model). Other features include:
- High EFT and ESD protection
- Widened temperature range of -40°C~75°C / -40°F~167°F (-E model)
- Galvanic isolation to shield from transients
Network features
This devices supports a wide range of network features, including:
- LACP link aggregation
- DHCP server & DHCP Option82
- IGMP v3/router port
- DHCP Snooping
- PPort based DHCP distribution
- Mac based DHCP server
- SSH v2/SSL, HTTPS, INGRESS ACL L2/L3
Versatile Features for Maintenance & Deployment
- Bandwidth Control: Ingress packet filter and egress rate limit as well as broadcast/multicast packet filter control.
- Miss-wiring avoidance: Disables ring automatically when the pre-set ring configuration has failed or looped due to miss-wiring.
- Node failure protection: Ensures the switches in a ring to survive after power breakout is back.
- Loop protection: prevents the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.
- Configuration backup and restoration: Supports editable configuration file for system quick installation.
User Friendly GUI, Auto Topology Drawing and Optional Environmental Monitoring
The user-friendly UI, innovative auto topology drawing and topology demo makes the switch much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line. It supports environmental monitoring for actual input voltage, current, ambient temperature and total power load.
Hardware Specifications
|
Standards |
IEEE802.3 10Base-T Ethernet |
|
Switch Architecture |
Back-plane (Switching Fabric): 3.2Gbps |
|
Transfer Rate |
14,880pps for Ethernet port |
|
Packet Buffer |
8Mbits |
|
Mac Address |
16K MAC address table |
|
Jumbo frame |
10KB |
|
Connectors |
10/100TX: 16 x ports RJ-45 with Auto MDI/MDI-X function |
|
Network Cable |
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable |
|
LED |
Per unit: Power 1 (Green), |
|
DI/DO |
2 Digital Input (DI) : |
|
Operating Humidity |
5% ~ 95% (Non-condensing) |
|
Operating Temperature |
-20°C~60°C / -4°F~140°F (Standard model) |
|
Storage Temperature |
-40°C~85°C / -40°F~185°F |
|
Power Supply |
Standard model: Dual 9~60VDC |
|
Power Consumption |
10W |
|
Case Dimension |
Metal case. IP-30, |
|
Weight |
1000g (48V model) |
|
Installation |
DIN Rail and Wall Mount** Design |
|
Relay Alarm |
Provides one relay output for power fail and alarm. |
|
EMI & EMS |
FCC Class A, |
|
Vehicle Certificate |
E13 marking (24V model) |
|
MTBF |
TBC (IEC62830 standards) |
|
Warranty |
5 years |
ORDERING INFORMATION
|
P/N |
Model name |
Description |
|---|---|---|
| 8350-6601 | IES-3016 | 16 10/100TX L2+ Industrial Managed Ethernet Switch; 9~60VDC; -20°C to 60°C |
| 8350-6602 | IES-3016-E | 16 10/100TX L2+ Industrial Managed Ethernet Switch; 9~60VDC; -40°C to 75°C |
| 8350-6603 | IES-3016-M | 16 10/100TX L2+ Industrial Managed Ethernet Switch; 9~60VDC; -20°C to 60°C; w/ Environmental monitoring |
| 8350-6604 | IES-3016-M-E | 16 10/100TX L2+ Industrial Managed Ethernet Switch; 9~60VDC; -40°C to 75°C; w/ Environmental monitoring |
8350-6611 |
IES-3016-24V | 16 10/100TX L2+ Industrial Managed Ethernet Switch; 9~36VDC; -20°C to 60°C |
| 8350-6612 |
IES-3016-24V-E | 16 10/100TX L2+ Industrial Managed Ethernet Switch; 9~36VDC; -40°C to 75°C |
| 8350-6613 |
IES-3016-24V-M | 16 10/100TX L2+ Industrial Managed Ethernet Switch; 9~36VDC; -20°C to 60°C; w/ Environmental monitoring |
| 8350-6614 |
IES-3016-24V-M-E | 16 10/100TX L2+ Industrial Managed Ethernet Switch; 9~36VDC; -40°C to 75°C; w/ Environmental monitoring |
| 8850-100 | N-key Configurator | RJ45 connector dongle for firmware upgrade, auto/editable configuration backup and restoration; -20°C to 60° |
OPTIONAL ACCESSORIES - DIN Rail Power
|
Model name |
Description |
|---|---|
| MDR-40 Series | 40W Single Output Industrial Din Rail Power; 85-264VAC / 120-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 4% per degree from 60°C ~ 70°C) |
| MDR-20 Series | 20W Single Output Industrial Din Rail Power; 85-264VAC / 120-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C) |
OPTIONAL ACCESSORIES - Wall Mount Bracket
|
Model name |
Description |
|---|---|
| MBAK19003 | Wall mount bracket for 74(W) x 105 (D) x 152 (H) mm / 96 (W) x 105 (D) x 152 (H) mm Industrial switches |
| MBAK19004 | 19” Rack Mounting Kit for 74x105x152mm/74x135x152mm Industrial Ethernet Switch |
