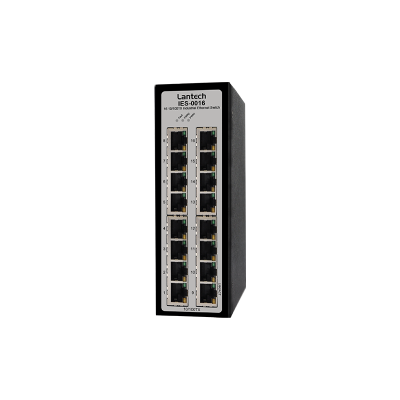

IES-0016 Industrial Unmanaged Ethernet Switch

In stock

SKU:

IES-0016

16 10/100TX PoE Industrial Unmanaged Ethernet Switch

Key Features:

ISO7637-2 compliance
E-marking certificate for vehicle application (-24V model)
Galvanic isolation protection for dual input.
Relay alarm output for power fail and alarm
IP30 metal housing with DIN rail and Wall-mount** design
Provides EFT and ESD protection

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications

Hardware Specifications

Standards	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX IEEE802.3x Flow Control and Back Pressure
Switch Architecture	Back-plane (Switching Fabric): 3.2Gbps
Transfer Rate	14,880pps for Ethernet port 148,800pps for Fast Ethernet port
Mac Address	16K MAC address table
Connectors	10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function Power & P-Fail connector: 1 x 6-pole terminal block
Network Cable	10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m)
LED	Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red); Ethernet port: Link/Activity (Green)
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	-20°C~60°C / -4°F~140°F (Standard model) -40°C~75°C / -40°F~167°F(-E model)
Storage Temperature	-40°C~85°C / -40°F~185°F
Power Supply	9V~36VDC
Power Consumption	4.5W
Galvanic Isolation	Between power input and case ground Between Ethernet port and case ground Between power input and Ethernet port
Case Dimension	Metal case. IP-30 49 (W) x 105 (D) x 152 (H) mm
Weight	900g
Installation	DIN Rail and Wall Mount** Design
Relay Alarm	Provides one relay output for power fail and alarm. Alarm Relay current carry ability: 1A @ DC24V
EMI & EMS	FCC Class A, CE EN55011, CE EN55032, CE EN55024, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8, CE EN61000-6-2, CE EN61000-6-4
Safety	IEC/BS EN IEC 62368-1 2020/A11:2020
Vehicle Certificate	E-Marking with E13 granted approval (-24V model)
MTBF	1,950,865hrs (standards: IEC 62380)
Warranty	5 years

Downloads

Datasheet

Ordering Information

ORDERING INFORMATION

P/N	Model name	Description
8351-116	IES-0016-24V	16 10/100TX Industrial Ethernet Switch, dual 9V~36VDC input; compliant with ISO7637-2; -20°C to 60°C
8351-117	IES-0016-24V-E	16 10/100TX Industrial Ethernet Switch, dual 9V~36VDC input; compliant with ISO7637-2; -40°C to 75°C

OPTIONAL ACCESSORIES - DIN Rail Power

Model name	Description
MDR-40 Series	40W Single Output Industrial Din Rail Power; 85-264VAC / 120-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 4% per degree from 60°C ~ 70°C)
MDR-20 Series	20W Single Output Industrial Din Rail Power; 85-264VAC / 120-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
