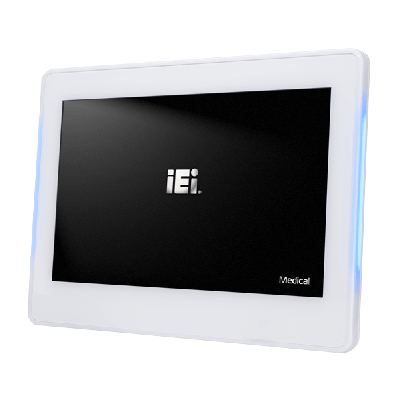

IASO-W10B-N6210 10.1" Medical Panel PC with Celeron N6210
Medical Panel PC with Intel® Celeron® N6210 processor
Key Features:
- Intel® Celeron® Processor N6210
- Programmable LED light bar on both sides
- 10-point PCAP touch with optical bonding
- IEEE 802.3 PoE (optional)
- RFID (NFC) reader (optional)
IEI helps to combine the data obtained at home with the medical records at the hospital so that medical personnels can observe the patient’s measurement information thoroughly. The data can also be digitalized to help data integration and tracking. In addition to synchronizing with the data in the hospital, if the patient is hospitalized, the data can also be saved in the system. These data can be kept intact and effectively used as an evaluation basis for diagnosis and treatment.
Bright and simple outlook with programmable LED lights on both sides. Each light bar has 10 programmable RGB LEDs with IEC62471 certification. The colorful light and display can be adjusted according to use conditions. It can be used to detect the status light signal, or to warn the ward aisle. The front frame is made of translucent material to make the frame light and thin.
IEC60601-1-8: General requirements, tests and guidance for alarm systems in medical electrical equipment and medical electrical systems.
ANSI Z535.1-2017: A standard that describes the color codes that can be used on accident prevention signs, labels, and tags. This also includes the marking and location of first aid equipment, fire extinguishers, trip/slip hazards, and other potential hazards or safety equipment.
Hardware Spec.
|
Form factor |
|
|---|---|
|
Form factor |
|
|
System |
|
|
Cooling method / System Fan |
Fanless |
|
CPU |
Intel® Celeron® N6210 (Elkhart Lake, 6.5W TDP) |
|
SSD |
1 x M.2 2242 M key (PCIe/SATA signal) |
|
Communication |
|
|
Bluetooth |
BT v5.0 (M.2 2230 A-E key) |
|
Wi-Fi |
IEEE 802.11ax 2T2R module (Wi-Fi 6E) |
|
I/O Interface |
|
|
Ethernet |
1 x Intel® I225 Ethernet Controller |
|
Audio |
AMP 1W + 1W (internal speaker) |
|
RAM |
1 x DDR4 SO-DIMM slot |
|
Power |
|
|
Input |
12V DC jack Class 5 (IEEE802.3bt) PD device w/ full loading taken on I/O |
|
Power adapter |
65W medical grade power adapter |
|
Environment |
|
|
Operating Temperature |
-20°C – 40°C |
|
Operating Vibration |
1G |
|
Operating Shock |
Operating shock: 5G peak acceleration (11ms duration) Non-operating shock: 15G peak acceleration (11ms duration) |
|
Safety & EMC |
CE, FCC Class B Part18 EN 60601-1: 2006/A1:2013 (Edition 3.1) EN 60601-1-2: 2015 (Edition 4.0) |
|
Humidity |
10% – 95% (non-condensing) |
|
Storage Temperature |
-20°C – 60°C |
|
IP Level |
Front: IP65 |
|
Physical Characteristics |
|
|
Mounting |
Wall, Stand and Arm; VESA 75 compliant |
|
Dimensions (LxWxH) (mm) |
261 x 196.4 x 40 |
|
Net Weight |
1.49 kg |
|
Construction |
Rear cover: ABS+PC plastic (ENH2900) |
|
Construction Front Panel |
Front: PC |
|
LCD |
|
|
Size |
10.1＂ (16:10) |
|
Resolution |
1280 x 800 |
|
Brightness (cd/m2) |
400 |
|
Contrast Ratio |
800:1 |
|
LCD Color |
16.7M (RGB 6-bit + Hi-FRC) |
|
Pixel Pitch (mm) |
0.1695 x 0.1695 |
|
Viewing Angle (H-V) |
178˚/178˚ |
|
Backlight MTBF |
30,000 (LED backlight) |
|
Touch |
|
|
Touch Screen |
Projected capacitive type with 10-point multi-touch and optical bonding |
|
Touch Controller |
EETI |
|
Other Features |
|
|
Audio |
AMP 1W + 1W (internal speaker) |
|
LED Light Bar |
2 x LED light bar |
|
Microphone |
1 x Digital microphone |
|
I/O Interface |
|
|
I/O Interface |
1 x AT/ATX Switch |
|
1 x Audio(jack (TRRS)) |
|
|
1 x HDMI™(output) |
|
|
1 x LAN(2.5GbE supporting PoE (with 1.5kV isolation)) |
|
|
1 x Reset Button |
|
|
1 x RS-232 |
|
|
2 x USB 3.2 Gen1x1(5Gb/s) |
|
| IASO-W10B-N6210/4G-R10 | 10.1" 400cd/m² medical panel PC with Intel® Elkhart Lake TDP 6.5W Celeron® N6210, one 4GB DDR4 RAM,Wi-Fi 6E module, PCAP touchscreen |
|---|---|
| IASO-W10B-N6210/4G/PoE-R10 | 10.1" 400cd/m² medical panel PC with Intel® Elkhart Lake TDP 6.5W Celeron® N6210, one 4GB DDR4 RAM,Wi-Fi 6E module, PCAP touchscreen, IEEE802.3 PoE |
