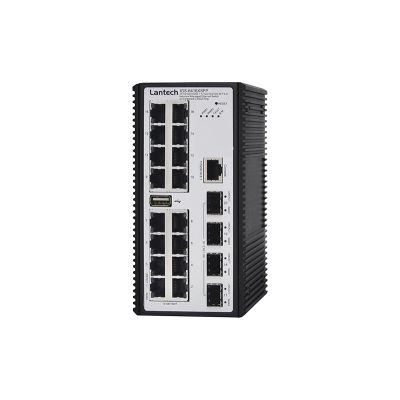

I(P)GS-6416XSFP SFP+ L2+ Industrial Managed Ethernet Switch

In stock

SKU:

I(P)GS-6416XSFP

16 10/100/1000T PoE at/af + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch

Key Features:

Support IEEE802.3at/af up to 30W per port
Max PoE budget 240W at 48V, 80W at 24V
Lantech OS3 Platform
PoE management incl. Detection and Scheduling
Miss-wiring avoidance & node failure protection
Enhanced Environmental monitoring

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The Lantech I(P)GS-6416XSFP is a high performance L2+ (All Gigabit) Ethernet switch with 16 100/1000T + 4 1G/2.5G/10G auto sensing SFP+ (w/16 PoE 802.3af/at Ports) which provides advanced security function for network aggregation deployment.

Hardened Industrial Design with Dual Power Inputs and Enhanced Protection

The unit is designed with dual redundant power inputs supporting 44~56VDC (48V model), 9~36VDC (24VI model) or 16.8~56VDC input (24TVI model), providing flexibility for vehicle and rail power architectures. It includes features such as:

High EFT and ESD protection
Compliance with IEC60068-2-31 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
Widened temperature range of -40°C~75°C / -40°F~167°F (-E model)
Galvanic isolation to shield from transients

Advanced PoE Management

With a PoE budget of up to 240W, the switch supports intelligent PoE management which includes:

PoE detection and scheduling
Scheduling based on user-defined timetables
Per-port power monitoring (voltage, current, power, temp.)
Compliant with 802.3 af/at standard

Cybersecurity and IEC 62443 Compliance*
*The optional IEC 62443 cybersecurity package includes over 90 protections, such as vulnerability assessments, encryption, root of trust, secure boot, and tamper detection. To safeguard onboard networks, it incorporates other features such as:

DDoS prevention
802.1X authentication
Dynamic ARP Inspection
IP Source Guard
Port Security

OS3 Platform with L2 Management and Optional L3 & Communication Protocols

Built on the Lantech OS3 platform, the switch supports:

Layer 2+ features: VLAN, IGMP, DHCP options, NAT, Port Forwarding, LACP
Layer 3 routing: OSPF, RIP v1/v2
Ring protection: G.8032/RSTP
JSON-based Open API for efficient device control without heavy CPU load

Versatile Features for Maintenance & Deployment

Auto-FEED Configuration: Instantly applies saved configurations to replacement switches
USB Port: The USB port can import/export the configuration from/to USB dongle and also to upgrade firmware from USB dongle.
Snapshot Feature: Gathers diagnostic data for root cause analysis
Miss-wiring avoidance: Disables ring automatically when the pre-set ring configuration has failed or looped due to miss-wiring.
Node failure protection: Ensures the switches in a ring to survive after power breakout is back.
Loop protection: prevents the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.

User Friendly GUI, Auto Topology Drawing and Enhanced Environmental Monitoring

The user-friendly UI, innovative auto topology drawing and topology demo makes the switch much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line. It supports enhanced environmental monitoring for actual input voltage, current, ambient temperature and total power load.

This product is listed in Ethernet Switches

Specifications

Hardware Specifications

Standards	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z Gigabit fiber IEEE802.3x Flow Control and Back Pressure IEEE802.3ad Port trunk with LACP IEEE802.1d Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1s Multiple Spanning Tree IEEE802.3ad Link Aggregation Control Protocol (LACP) IEEE802.1AB Link Layer Discovery Protocol (LLDP) IEEE802.1X User Authentication (Radius) IEEE802.1p Class of Service IEEE802.1Q VLAN Tag IEEE802.3at/af Power over Ethernet
Switch Architecture	Back-plane (Switching Fabric): 112Gbps
Mac Address	16K MAC address table
Jumbo frame	10KB
Connectors	10/100/1000T: 16 x ports RJ-45 with Auto MDI/MDI-X function Mini-GBIC: 4 x 1G/2.5G/10G SFP+ auto-sensing socket with DDMI RS-232 connector: RJ-45 type USB x 1 Power connector: 1 x 6-pole terminal block DIDO: 1 x 6-pole terminal block
Network Cable	100Base-TX: 2-pair STP Cat. 5/ 5E/ 6 cable; EIA/TIA-568 100-ohm (100m) 1000Base-T: 4-pair STP Cat5E/6 cable; 10GBaseT:4-pair STP Cat6/6A/7 cable
Optical Cable	1Gbps: Multi-mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm) Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm) 2.5Gbps Multi-mode: 0 to 300 m, 850 nm (50/125 μm); Single mode: 0 to 2 km/ 15 km/ 40 km, 1310 nm (9/125 μm); 0 to 40 km/ 80 km/ 100km, 1550 nm (9/125 μm) WDM 1Gbps: Single-mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm) WDM 2.5Gbps Single-mode: 0 to 5 km/ 20 km/ 40 km/ 60 km, 1310 /1550nm (9/125 μm); 0 to 80 km, 1490/1550 nm (9/125 μm) 10Gbps Multi-mode: 0 to 300 m, 850 nm (OM3 50/125 μm); Single mode: 0 to 10 km/ 20 km, 1310 nm (9/125 μm); 0 to 40 km/ 80km/ 100 km, 1550 nm (9/125 μm) WDM 10Gbps Single-mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1270/1330 nm (9/125 μm); 0 to 80km, 1490/1550 nm (9/125 μm)
LED	Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red); RM(Green) Ethernet port: Link/Activity (Green), Speed (Green); 10G (Amber) PoE: Link/Act (Green, PoE model); Mini-GBIC: Link/Activity (Green)
DI/DO	2 Digital Input (DI): Level 0: -30~2V / Level 1: 10~30V Max. input current:8mA 2 Digital Output (DO): Open collector to 40 VDC, 200mA
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	-20°C~60°C / -4°F~140°F (Standard model) -40°C~75°C / -40°F~167°F(-E model)
Storage Temperature	-40°C~85°C / -40°F~185°F
Power Supply	IPGS-6416XSFP Dual DC input, 44~56VDC(48V model); Dual DC input, 9~36VDC with PoE and Ethernet galvanic isolation (24VI model) Dual DC input, 16.8~56VDC with PoE and Ethernet galvanic isolation (24TVI model) IGS-6416XSFP Dual DC input, 9~36VDC with galvanic isolation (24VI model); Dual DC input, 16.8~56VDC with galvanic isolation (24TVI model)
PoE Budget	240W @48VDC (48V model) (50-56VDC input is recommended for 802.3at 30W applications) 80W @24VDC (24VI/24TVI model) Higher PoE budget can be applied upon request. **
PoE pin assignment	RJ-45 port # 1~#16 support IEEE 802.3at/af End-point, Alternative A mode. Positive (VCC+): RJ-45 pin 1,2 Negative (VCC-): RJ-45 pin 3,6
Power Consumption	Max. 27W (full load w/o PoE)
Case Dimension	Metal case. IP-30, IPGS-6416XSFP 95.84 (W) x 135 (D) x 152 (H) mm IGS-6416XSFP 74 (W) x 135 (D) x 152 (H) mm
Weight	1400g (IGS-6416XSFP, 24VI/24TVI model) 1950g (IPGS-6416XSFP, 24VI/24TVI model) 1800g (IPGS-6416XSFP, 48V model)
Installation	DIN Rail and Wall Mount** Design
EMI & EMS	EN 55011:2016 FCC Class A, CE EN55035:2017/A11:2020, CE EN55032:2015/A11:2020, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8, CE EN61000-6-2
Safety	EN IEC 62368-1
Stability Testing	IEC60068-2-31 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
Vehicle Certificate	E24 marking (24VI model)
MTBF	586,082.5 Hrs. (IEC 62380 standards)
Warranty	5 years

Downloads

Datasheet

Ordering Information

ORDERING INFORMATION

P/N	Model name	Description
8350-864	IPGS-6416XSFP-16-48V	16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 44~56VDC input w/Ethernet galvanic isolation; PoE budget 240W
8350-865	IPGS-6416XSFP-16-48V-E	16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 44~56VDC input w/Ethernet galvanic isolation; PoE budget 240W
8350-86622	IPGS-6416XSFP-16-24VI	16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 9~36VDC input, PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (E-Marking Certified)
8350-86634	IPGS-6416XSFP-16-24VI-E	16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 9~36VDC input, PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (E-Marking Certified)
8350-86623	IPGS-6416XSFP-16-24TVI	16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input, PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (EN50155 Compliance)
8350-86633	IPGS-6416XSFP-16-24TVI-E	16 10/100/1000T PoE at/af up to 30W + 4 1G/2.5G/10G SFP+ L2+ Industrial PoE Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input, PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (EN50155 Compliance)
8350-86812	IGS-6416XSFP-24VI	16 10/100/1000T + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 9~36VDC input w/ Ethernet galvanic isolation (E-Marking Certified)
8350-86912	IGS-6416XSFP-24VI-E	16 10/100/1000T + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 9~36VDC input w/ Ethernet galvanic isolation (E-Marking Certified)
8350-86811	IGS-6416XSFP-24TVI	16 10/100/1000T + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input w/ Ethernet galvanic isolation (EN50155 Compliance)
8350-86911	IGS-6416XSFP-24TVI-E	16 10/100/1000T + 4 1G/2.5G/10G SFP+ L2+ Industrial Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input w/ Ethernet galvanic isolation (EN50155 Compliance)

OPTIONAL ACCESSORIES - Software package

Please refer to Lantech OS3/OS4 platform https://www.lantechcom.com.au/software-OS3_OS4.html

OPTIONAL ACCESSORIES - 48~54VDC DIN Rail Power for 802.3at Applications

Model name	Description
NDR-240 Series	240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)

OPTIONAL ACCESSORIES - Mini GBIC (SFP)

P/N	Description	P/N	Description
8330-162-V1	MINI GBIC 1000SX (LC/0.5km) Transceiver	8330-183-V1	LTSFP-1000BX-60KM Transceiver (WDM 1550)
8330-163-V1	MINI GBIC 1000SX2 (LC/2km) Transceiver	8330-184-V1	LTSFP-1000BX-80KM Transceiver (WDM 1490)
8330-165-V1	MINI GBIC 1000LX (LC/10km) Transceiver	8330-185-V1	LTSFP-1000BX-80KM Transceiver (WDM 1550)
8340-0591-V1	MINI GBIC 1000LHX (LC/40km) Transceiver	8330-262D-V1	MINI GBIC 2.5G 850nm VCSEL (LC/0.3km) Transceiver
8330-166-V1	MINI GBIC 1000XD (LC/50km) Transceiver	8330-263D-V1	MINI GBIC 2.5G 1310nm FP (LC/2km) Transceiver
8330-169-V1	MINI GBIC 1000XD (LC/60km) Transceiver	8330-265D-V1	MINI GBIC 2.5G 1310nm DFB (LC/15km) Transceiver
8330-167-V1	MINI GBIC 1000ZX (LC/80km) Transceiver	8330-193D-V1	10G Base SFP+ SR, Multi-mode (LC/300m) Transceiver
8330-170-V1	MINI GBIC 1000EZX (120km) Transceiver	8330-194D-V1	10G Base SFP+ LR, Single-mode (LC/10km) Transceiver
8330-168-V1	MINI GBIC 1000T (100m) Transceiver	8330-209D-V1	10G Base SFP+ , Single-mode(10km) Transceiver (WDM 1270)
8330-188-V1	LTSFP-1000BX-10KM Transceiver (WDM 1310)	8330-210D-V1	10G Base SFP+ , Single-mode(10km) Transceiver (WDM 1330)
8330-189-V1	LTSFP-1000BX-10KM Transceiver (WDM 1550)	8330-200D-V1	10G Base SFP+ , Single-mode(20km) Transceiver (WDM 1270)
8330-186-V1	LTSFP-1000BX-20KM Transceiver (WDM 1310)	8330-201D-V1	10G Base SFP+ , Single-mode(20km) Transceiver (WDM 1330)
8330-187-V1	LTSFP-1000BX-20KM Transceiver (WDM 1550)	8330-202D-V1	10G Base SFP+ , Single-mode(40km) Transceiver (WDM 1270)
8330-180-V1	LTSFP-1000BX-40KM Transceiver (WDM 1310)	8330-203D-V1	10G Base SFP+ , Single-mode(40km) Transceiver (WDM 1330)
8330-182-V1	LTSFP-1000BX-40KM Transceiver (WDM 1550)	8330-206-V1	10G/5G/2.5G/1000Base-T SFP, 3.3V,30m (10G) 50m (2.5G/5G) 100m (1G); -10~70°C
8330-181-V1	LTSFP-1000BX-60KM Transceiver (WDM 1310)	All SFP ended with D are with Diagnostic function
