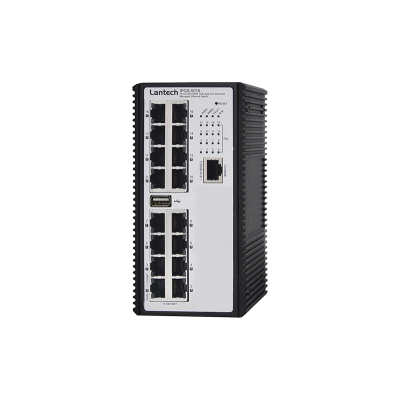

I(P)GS-5016 L2+ Industrial Managed Ethernet Switch
16 10/100/1000T L2+ PoE at/af Industrial Managed Ethernet Switch
Key Features:
- Support IEEE802.3at/af up to 30W per port
- Max PoE budget 240W at 48V, 80W at 24V
- Lantech OS3 Platform
- PoE management incl. Detection and Scheduling
- Miss-wiring avoidance & node failure protection
- Enhanced Environmental monitoring
The Lantech I(P)GS-5016 is a high performance L2+ (All Gigabit) Ethernet switch with 16 10/100/1000T (w/16 PoE 802.3af/at) Ports which provides advanced security function for network aggregation deployment.
Hardened Industrial Design with Dual Power Inputs and Enhanced Protection
The unit is designed with dual redundant power inputs supporting 44~56VDC (48V model), 9~36VDC (24VI model) or 16.8~56VDC input (24TVI model), providing flexibility for vehicle and rail power architectures. It includes features such as:
- High EFT and ESD protection
- Compliance with IEC60068-2-31 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
- Widened temperature range of -40°C~75°C / -40°F~167°F (-E model)
- Galvanic isolation to shield from transients
Advanced PoE Management
With a PoE budget of up to 240W, the switch supports intelligent PoE management which includes:
- PoE detection and scheduling
- Scheduling based on user-defined timetables
- Per-port power monitoring (voltage, current, power, temp.)
- Compliant with 802.3 af/at standard
Cybersecurity and IEC 62443 Compliance*
*The optional IEC 62443 cybersecurity package includes over 90 protections, such as vulnerability assessments, encryption, root of trust, secure boot, and tamper detection. To safeguard onboard networks, it incorporates other features such as:
- DDoS prevention
- 802.1X authentication
- Dynamic ARP Inspection
- IP Source Guard
- Port Security
OS3 Platform with L2 Management and Optional L3 & Communication Protocols
Built on the Lantech OS3 platform, the switch supports:
- Layer 2+ features: VLAN, IGMP, DHCP options, NAT, Port Forwarding, LACP
- Layer 3 routing: OSPF, RIP v1/v2
- Ring protection: G.8032/RSTP
- JSON-based Open API for efficient device control without heavy CPU load
Versatile Features for Maintenance & Deployment
- Auto-FEED Configuration: Instantly applies saved configurations to replacement switches
- USB Port: The USB port can import/export the configuration from/to USB dongle and also to upgrade firmware from USB dongle.
- Snapshot Feature: Gathers diagnostic data for root cause analysis
- Miss-wiring avoidance: Disables ring automatically when the pre-set ring configuration has failed or looped due to miss-wiring.
- Node failure protection: Ensures the switches in a ring to survive after power breakout is back.
- Loop protection: prevents the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.
User Friendly GUI, Auto Topology Drawing and Enhanced Environmental Monitoring
The user-friendly UI, innovative auto topology drawing and topology demo makes the switch much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line. It supports enhanced environmental monitoring for actual input voltage, current, ambient temperature and total power load.
Hardware Specifications
|
Standards |
IEEE802.3 10Base-T Ethernet |
|
Switch Architecture |
Back-plane (Switching Fabric): 32Gbps |
|
Transfer Rate |
14,880pps for Ethernet port |
|
Mac Address |
16K MAC address table |
|
Jumbo frame |
10KB |
|
Connectors |
10/100/1000T: 16 x ports RJ-45 with Auto MDI/MDI-X function |
|
Network Cable |
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable |
|
Optical Cable |
1Gbps: |
|
LED |
Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red); RM(Green) |
|
DI/DO |
2 Digital Input (DI): |
|
Operating Humidity |
5% ~ 95% (Non-condensing) |
|
Operating Temperature |
-20°C~60°C / -4°F~140°F (Standard model) |
|
Storage Temperature |
-40°C~85°C / -40°F~185°F |
|
Power Supply |
IPGS-5016 |
|
PoE Budget |
240W @48VDC (48V model) |
|
PoE pin assignment |
RJ-45 port # 1~#16 support IEEE 802.3at/af End-point, Alternative A mode. |
|
Power Consumption |
17W |
|
Case Dimension |
Metal case. IP-30, |
|
Weight |
1950g (IPGS-5016, 24VI/24TVI) |
|
Installation |
DIN Rail and Wall Mount** Design |
|
EMI & EMS |
EN 55011:2016 |
|
Railway compliance |
EN50155:2017, EN50121-3-2:2015, |
|
Safety |
EN IEC 62368-1 |
|
Stability Testing |
IEC60068-2-31 (Free fall), |
|
Vehicle Certificate |
E24 marking (24VI model) |
|
MTBF |
586,057 hours (standards: IEC 62380) |
|
Warranty |
5 years |
|
CPU Clock |
1.6Ghz |
|
RAM |
512MB |
|
NAND flash |
512MB |
ORDERING INFORMATION
|
P/N |
Model name |
Description |
|---|---|---|
| 8350-895 | IPGS-5016-48V | 16 10/100/1000T PoE at/af up to 30W L2+ Industrial Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 44~56VDC input w/Ethernet galvanic isolation; PoE budget 240W |
| 8350-8951 | IPGS-5016-48V-E | 16 10/100/1000T PoE at/af up to 30W L2+ Industrial Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 44~56VDC input w/Ethernet galvanic isolation; PoE budget 240W |
8350-8958 |
IPGS-5016-24VI | 16 10/100/1000T PoE at/af up to 30W L2+ Industrial Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 9~36VDC input; PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (E-Marking Certified) |
| 8350-89581 |
IPGS-5016-24VI-E | 16 10/100/1000T PoE at/af up to 30W L2+ Industrial Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 9~36VDC input; PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (E-Marking Certified) |
8350-8959 |
IPGS-5016-24TVI | 16 10/100/1000T PoE at/af up to 30W L2+ Industrial Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input; PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (EN50155 Compliance) |
| 8350-89591 |
IPGS-5016-24TVI-E | 16 10/100/1000T PoE at/af up to 30W L2+ Industrial Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input; PoE budget 80W at 24V w/ PoE & Ethernet galvanic isolation (EN50155 Compliance) |
| 8350-8946 |
IGS-5016-24VI | 16 10/100/1000T L2+ Industrial Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 9~36VDC input w/ Ethernet galvanic isolation (E-Marking Certified) |
| 8350-89462 |
IGS-5016-24VI-E | 16 10/100/1000T L2+ Industrial Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 9~36VDC input w/ Ethernet galvanic isolation (E-Marking Certified) |
| 8350-89461 |
IGS-5016-24TVI | 16 10/100/1000T L2+ Industrial Managed Ethernet Switch; -20°C to 60°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input w/ Ethernet galvanic isolation (EN50155 Compliance) |
| 8350-89471 |
IGS-5016-24TVI-E | 16 10/100/1000T L2+ Industrial Managed Ethernet Switch; -40°C to 75°C; Enhanced Environmental Monitoring; dual 16.8~56VDC input w/ Ethernet galvanic isolation (EN50155 Compliance) |
OPTIONAL ACCESSORIES - Software package
Please refer to Lantech OS3/OS4 platform https://www.lantechcom.com.au/software-OS3_OS4.html
OPTIONAL ACCESSORIES - 48~54VDC DIN Rail Power for 802.3at Applications
|
Model name |
Description |
|---|---|
| NDR-480 Series | 480W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C) |
| NDR-240 Series | 240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C) |
| NDR-120 Series | 120W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet) |
