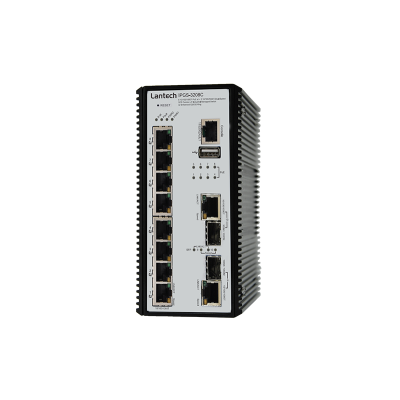

I(P)GS-3208C Dual Speed SFP L2+ Industrial Managed Ethernet Switch

In stock

SKU:

I(P)GS-3208C

8 + 2 10/100/1000T Dual Speed SFP Combo L2+ PoE at/af Industrial Managed Ethernet Switch

Key Features:

Support IEEE802.3at/af up to 30W per port
Max PoE budget 240W at 48V, 120W at 24V, 80W at 12V input
Enhanced G.8032 ring protection
PoE management incl. Detection and Scheduling
Miss-wiring avoidance & node failure protection
Optional Environmental monitoring

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The Lantech I(P)GS-3208C is a high performance L2+ all Gigabit switch with 8 10/100/1000T + 2 x 10/100/1000T/Dual Speed 100/1000M SFP combo (w/8 PoE 802.3af/at ports) which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 enhanced ring recovery less than 20ms for single ring, comprehensive QoS, VLAN, GVRP, advanced security SSH v2/SSL, INGRESS ACL L2/L3, IGMPv1/v2/v3/router port, DHCP server/relay, jumbo frame which are important features required in mid and large network. It also supports Cisco Discovery Protocol (CDP) and LLDP for Ciscoworks to detect the switch info and to be shown on L2 map topology.

Hardened Industrial Design with Dual Power Inputs and Enhanced Protection

The unit is designed with dual redundant power inputs supporting 44~56VDC (48V model), 9~36VDC (24V model) or 9.5~56/60VDC input (12V model) and includes features such as:

High EFT and ESD protection
Compliance with IEC60068-2-31 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
Widened temperature range of -40°C~75°C / -40°F~167°F (-E model)
Galvanic isolation to shield from transients

Advanced PoE Management

With a PoE budget of up to 240W, the switch supports intelligent PoE management which includes:

PoE detection and scheduling
Scheduling based on user-defined timetables
Per-port power monitoring (voltage, current, power, temp.)
Compliant with 802.3 af/at standard

Network features

This devices supports a wide range of network features, including:

LACP link aggregation
DHCP server & DHCP Option82
IGMP v3/router port
DHCP Snooping
PPort based DHCP distribution
Mac based DHCP server
SSH v2/SSL, HTTPS, INGRESS ACL L2/L3

OS3 Platform with L2 Management and Optional L3 & Communication Protocols

Built on the Lantech OS3 platform, the switch supports:

Layer 2+ features: VLAN, IGMP, DHCP options, NAT, Port Forwarding, LACP
Layer 3 routing: OSPF, RIP v1/v2
Ring protection: G.8032/RSTP
JSON-based Open API for efficient device control without heavy CPU load

Versatile Features for Maintenance & Deployment

Auto-FEED Configuration: Instantly applies saved configurations to replacement switches
USB Port: The USB port can import/export the configuration from/to USB dongle and also to upgrade firmware from USB dongle.
Snapshot Feature: Gathers diagnostic data for root cause analysis
Miss-wiring avoidance: Disables ring automatically when the pre-set ring configuration has failed or looped due to miss-wiring.
Node failure protection: Ensures the switches in a ring to survive after power breakout is back.
Loop protection: prevents the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.

User Friendly GUI, Auto Topology Drawing and Optional Environmental Monitoring

The user-friendly UI, innovative auto topology drawing and topology demo makes the switch much easier to get hands-on. The complete CLI enables professional engineer to configure setting by command line. It supports environmental monitoring for actual input voltage, current, ambient temperature and total power load.

This product is listed in Ethernet Switches

Specifications

Hardware Specifications

Standards	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T Ethernet IEEE802.3z Gigabit fiber IEEE802.3x Flow Control and Back Pressure IEEE802.3ad Port trunk with LACP IEEE802.1d Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1s Multiple Spanning Tree IEEE802.3ad Link Aggregation Control Protocol (LACP) IEEE802.1AB Link Layer Discovery Protocol (LLDP) IEEE802.1X User Authentication (Radius) IEEE802.1p Class of Service IEEE802.1Q VLAN Tag IEEE802.3at/af Power over Ethernet
Switch Architecture	Back-plane (Switching Fabric): 20Gbps
Transfer Rate	14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Fiber / Gigabit Ethernet port
Mac Address	16K MAC address table
Jumbo frame	10KB
Connectors	10/100/1000T: 8 x ports RJ-45 with Auto MDI/MDI-X function 10/100/1000T/SFP Combo port: 2 x 10/100/1000T/Dual Speed 100/1000M SFP combo RS-232 connector: RJ-45 type; USB x 1 Power & Relay connector: 1 x 6-pole terminal block DI/DO connector: 1 x 6-pole terminal block
Network Cable	10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m)
Optical Cable	1.25Gbps: Multi-mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm) Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm) 125Mbps: Multi-mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm) Single mode: 0 to 30 km, 1310 nm (62.5/125 μm) WDM 1.25Gbps: Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm) WDM 125Mbps: Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); 0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
LED	Per unit: Power 1 (Green), Power 2 (Green), Fault (Red), RM(Green) Ethernet port: Link/Activity (Green), Speed (Amber); PoE : Link/Act (Green); Mini-GBIC: Link/Activity (Green)
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	-20°C~60°C / -4°F~140°F (Standard model) -40°C~75°C / -40°F~167°F(-E model)
Storage Temperature	-40°C~85°C / -40°F~185°F
Power Supply	Non-PoE model: 9.5~60VDC (12V model) 9~36VDC (24V model) PoE model: 9.5~56VDC (12V model) 9~36VDC (24V model) 44~56VDC (48V model) (All model with Ethernet galvanic isolation)
PoE Budget	80W at 12V input; 120W at 24V input(12V model) 100W at 24V input (24V model) 240W at 48V input (48V model) (50-56VDC input is recommended for 802.3at 30W applications) Higher PoE budget can be applied upon request. **
PoE pin assignment	RJ-45 port # 1~ # 8 support IEEE 802.3at/af End-point. Per port provides up to 30W Positive (VCC+): RJ-45 pin 1,2. Negative (VCC-): RJ-45 pin 3,6.
Power Consumption	10W
Case Dimension	IP-30, 74 (W) x 114 (D) x 152 (H) mm
Weight	900g
Installation	DIN Rail and Wall Mount** Design
EMI & EMS	EN 55011:2016 FCC Part 15 Class A IEC/EN61000-6-2 CE EN55032 Class A CE EN55024: CE EN61000-4-2 (ESD) Level 3 CE EN61000-4-3 (RS) Level 3 CE EN61000-4-4 (EFT) Level 3 CE EN61000-4-5 ED3 (Surge) Level 3 CE EN61000-4-6 (CS) Level 3 CE EN61000-4-8 (Magnetic field) Level 3
Safety	EN62368 (LVD)
Stability Testing	IEC60068-2-31 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
Vehicle Certificate	E13 marking (24V model)
MTBF	66,587 (Hrs) Standards: IEC 62380
Warranty	5 years

Downloads

Datasheet.pdf

Ordering Information

ORDERING INFORMATION

P/N	Model name	Description
8350-982	IPGS-3208C-48V	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo w/8 PoE Mode A 802.3at/af 30W L2+ Industrial PoE Managed Ethernet Switch; dual 44~56VDC input; -20°C to 60°C
8350-983	IPGS-3208C-48V-E	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo w/8 PoE Mode A 802.3at/af 30W L2+ Industrial PoE Managed Ethernet Switch; dual 44~56VDC input; -40°C to 75°C
8350-9824	IPGS-3208C-24V	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo w/8 PoE Mode A 802.3at/af 30W L2+ Industrial PoE Managed Ethernet Switch; dual 9~36VDC input; -20°C to 60°C
8350-9834	IPGS-3208C-24V-E	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo w/8 PoE Mode A 802.3at/af 30W L2+ Industrial PoE Managed Ethernet Switch; dual 9~36VDC input; -40°C to 75°C
8350-984	IPGS-3208C-12V	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo w/8 PoE Mode A 802.3at/af 30W L2+ Industrial PoE Managed Ethernet Switch; dual 9.5V~56VDC input; -20°C to 60°C
8350-985	IPGS-3208C-12V-E	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo w/8 PoE Mode A 802.3at/af 30W L2+ Industrial PoE Managed Ethernet Switch; dual 9.5V~56VDC input; -40°C to 75°C
8350-9822	IPGS-3208C-M-48V	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo w/8 PoE Mode A 802.3at/af 30W L2+ Industrial PoE Managed Ethernet Switch; dual 44~56VDC input; -20°C to 60°C; Environmental monitoring
8350-9823	IPGS-3208C-M-48V-E	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo w/8 PoE Mode A 802.3at/af 30W L2+ Industrial PoE Managed Ethernet Switch; dual 44~56VDC input; -40°C to 75°C; Environmental monitoring
8350-9825	IPGS-3208C-M-24V	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo w/8 PoE Mode A 802.3at/af 30W L2+ Industrial PoE Managed Ethernet Switch; dual 9~36VDC input; -20°C to 60°C; Environmental monitoring
8350-9835	IPGS-3208C-M-24V-E	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo w/8 PoE Mode A 802.3at/af 30W L2+ Industrial PoE Managed Ethernet Switch; dual 9~36VDC input; -40°C to 75°C; Environmental monitoring
8350-9842	IPGS-3208C-M-12V	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo w/8 PoE Mode A 802.3at/af 30W L2+ Industrial PoE Managed Ethernet Switch; dual 9.5V~56VDC input; -20°C to 60°C; Environmental monitoring
8350-9843	IPGS-3208C-M-12V-E	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo w/8 PoE Mode A 802.3at/af 30W L2+ Industrial PoE Managed Ethernet Switch; dual 9.5V~56VDC input; -40°C to 75°C; Environmental monitoring
8351-011	IGS-3208C-12V	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo L2+ Industrial Managed Ethernet Switch, dual 9.5V~60VDC input w/ isolation, -20°C to 60°C
8351-012	IGS-3208C-12V-E	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo L2+ Industrial Managed Ethernet Switch, dual 9.5V~60VDC input w/ isolation, -40°C to 75°C
8351-0111	IGS-3208C-12V-M	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo L2+ Industrial Managed Ethernet Switch, dual 9.5V~60VDC input w/ isolation, -20°C to 60°C; Environmental monitoring
8351-0112	IGS-3208C-12V-M-E	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo L2+ Industrial Managed Ethernet Switch, dual 9.5V~60VDC input w/ isolation, -40°C to 75°C; Environmental monitoring
8351-0113	IGS-3208C-24V	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo L2+ Industrial Managed Ethernet Switch, dual 9~36VDC input w/ isolation, -20°C to 60°C
8351-0114	IGS-3208C-24V-E	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo L2+ Industrial Managed Ethernet Switch, dual 9~36VDC input w/ isolation, -40°C to 75°C
8351-0115	IGS-3208C-24V-M	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo L2+ Industrial Managed Ethernet Switch, dual 9~36VDC input w/ isolation, -20°C to 60°C; Environmental monitoring
8351-0116	IGS-3208C-24V-M-E	8 10/100/1000T + 2 10/100/1000T/Dual Speed SFP combo L2+ Industrial Managed Ethernet Switch, dual 9~36VDC input w/ isolation, -40°C to 75°C; Environmental monitoring

OPTIONAL ACCESSORIES - DIN Rail Power

Model name	Description
NDR-480 Series	480W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-240 Series	240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-120 Series	120W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)
NDR-75 Series	75W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)

OPTIONAL ACCESSORIES - Mini GBIC (SFP)

P/N	Description	P/N	Description
8330-162-V1	MINI GBIC 1000SX (LC/0.5KM) Transceiver	8330-186-V1	1.25Gbps BiDi SFP 20KM Transceiver (WDM 1310)
8330-163-V1	MINI GBIC 1000SX2 (LC/2KM) Transceiver	8330-187-V1	LTSFP-1000BX-20KM Transceiver (WDM 1550)
8330-165-V1	MINI GBIC 1000LX (LC/10KM) Transceiver	8330-180-V1	LTSFP-1000BX-40KM Transceiver (WDM 1310)
8340-0591-V1	MINI GBIC 1000LHX (LC/40KM) Transceiver	8330-182-V1	LTSFP-1000BX-40KM Transceiver (WDM 1550)
8330-166-V1	MINI GBIC 1000XD (LC/50KM) Transceiver	8330-181-V1	LTSFP-1000BX-60KM Transceiver (WDM 1310)
8330-169-V1	MINI GBIC 1000XD (LC/60KM) Transceiver	8330-183-V1	LTSFP-1000BX-60KM Transceiver (WDM 1550)
8330-167-V1	MINI GBIC 1000ZX (LC/80KM) Transceiver	8330-184-V1	LTSFP-1000BX-80KM Transceiver (WDM 1490)
8330-170-V1	MINI GBIC 1000EZX (120KM) Transceiver	8330-185-V1	LTSFP-1000BX-80KM Transceiver (WDM 1550)
8330-168-V1	MINI GBIC 10/100/1000T (100m) Transceiver	8330-071-V1	125Mbps BiDi SFP 2KM (WDM 1310) Transceiver
8330-060-V1	100Base FX 2KM, Multi-mode, LC Transceiver	8330-072-V1	125Mbps BiDi SFP 2KM (WDM 1550) Transceiver
8330-065-V1	100Base FX 5KM, Multi-mode, LC Transceiver	8330-069-V1	125Mbps BiDi SFP 20KM (WDM 1310) Transceiver
8330-061-V1	100Base LX 30KM, Single-mode, LC Transceiver	8330-068-V1	125Mbps BiDi SFP 20KM (WDM 1550) Transceiver
8330-059-V1	100Base LX 60KM, Single-mode, LC Transceiver	8330-080-V1	125Mbps BiDi SFP 40KM (WDM 1310) Transceiver
8330-197-V1	1.25Gbps BiDi SFP 0.5KM Transceiver (WDM 1310)	8330-082-V1	125Mbps BiDi SFP 40KM (WDM 1550) Transceiver
8330-198-V1	1.25Gbps BiDi SFP 0.5KM Transceiver (WDM 1550)	8330-081-V1	125Mbps BiDi SFP 60KM (WDM 1310) Transceiver
8330-195-V1	1.25Gbps BiDi SFP 2KM Transceiver (WDM 1310)	8330-083-V1	125Mbps BiDi SFP 60KM (WDM 1550) Transceiver
8330-196-V1	1.25Gbps BiDi SFP 2KM Transceiver (WDM 1550)	8330-084-V1	125Mbps BiDi SFP 80KM (WDM 1310) Transceiver
8330-188-V1	1.25Gbps BiDi SFP 10KM Transceiver (WDM 1310)	8330-085-V1	125Mbps BiDi SFP 80KM (WDM 1550) Transceiver
8330-189-V1	1.25Gbps BiDi SFP 10KM Transceiver (WDM 1550)	8330-191-V1	Dual Speed SFP 100M/1000M-LX 10KM Transceiver
