I(P)GS-0208GSFP SFP Industrial Unmanaged Switch

In stock
SKU:
I(P)GS-0208GSFP

8 10/100TX PoE at/af Industrial Unmanaged Ethernet Switch; 12V/24V/48V input models

Key Features:

  • Support IEEE802.3at/af up to 30W per port
  • Max PoE budget 240W at 48V, 120W at 24V, 80W at 12V input
  • Dual 48V or 12V input
  • Relay alarm output for power fail and alarm
  • IP30 metal housing with DIN rail and Wall-mount** design
  • Provides EFT and ESD protection

Enquire Now
Enquire Now

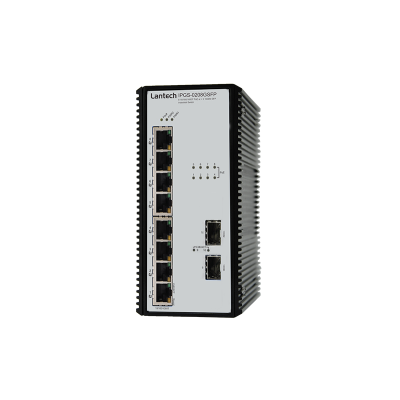

main product photo
We build to order

Hardware Specifications

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T Ethernet
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 20Gbps

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet / Gigabit Fiber port

Mac Address

16K MAC address table

Jumbo frame

10 KB

Connectors

10/100/1000T: 8 x ports RJ-45 with Auto MDI/MDI-X function
SFP port: 2 x 1000M
Power & P-Fail connector: 1 x 6-pole terminal block

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

Optical Cable

1.25Gbps:
Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)
Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)
WDM 1.25Gbps:
Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)

Protocol

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red)
Ethernet port: Link/Activity (Green)
PoE: Link/Act (Green); Mini-GBIC: Link/Activity (Green)

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

PoE model:
9~36VDC (24V model);
45~56VDC(48V model);
9.5V~56VDC(12V model)

Non-PoE model:
9.5~60VDC (12V model);
9~36VDC (24V model);

PoE Budget (PoE model)

80W at 12V input; 120W at 24V input(12V model)
100W for 9~36VDC at 24V input (24V model)
240W for 45~56VDC at 48V input (48V model) (50-56VDC input is recommended for 802.3at 30W applications)
Higher PoE budget can be applied upon request. **

PoE pin assignment (PoE model)

RJ-45 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W at 54~56VDC/15W at 48V~56VDC.
Positive (VCC+): RJ-45 pin 1,2.
Negative (VCC-): RJ-45 pin 3,6.

Power Consumption

10W

Case Dimension

Metal case. IP-30,
74 (W) x 114 (D) x 152 (H) mm

Weight

900g

Installation

DIN Rail and Wall Mount** Design

Relay Alarm

Provides one relay output for power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V

EMI & EMS

EN 55011:2016
FCC Part 15 Class A
IEC/EN61000-6-2
CE EN55032 Class A
CE EN55024: CE EN61000-4-2 (ESD) Level 3
CE EN61000-4-3 (RS) Level 3
CE EN61000-4-4 (EFT) Level 3
CE EN61000-4-5 ED3 (Surge) Level 3
CE EN61000-4-6 (CS) Level 3
CE EN61000-4-8 (Magnetic field) Level 3

Safety

EN62368 (LVD)

Stability Testing

IEC60068-2-31 (Free fall), IEC60068-2-27 (Shock),
IEC60068-2-6 (Vibration)

Vehicle Certificate

E13 marking (-24V model)

MTBF

12V: 813,050 (Hrs)
48V: 850,918 (Hrs)

Warranty

5 years
Downloads
pdf
Datasheet
Ordering Information

ORDERING INFORMATION

P/N

Model name

Description
8350-9941 IPGS-0208GSFP-48V 8 10/100/1000T + 2 1000M SFP w/8 PoE Mode A 802.3at/af 30W Industrial Switch;
dual 45~56VDC input; -20°C to 60°C
8350-9951 IPGS-0208GSFP-48V-E 8 10/100/1000T + 2 1000M SFP w/8 PoE Mode A 802.3at/af 30W Industrial Switch;
dual 45~56VDC input; -40°C to 75°C
8350-9961 IPGS-0208GSFP-12V 8 10/100/1000T + 2 1000M SFP w/8 PoE Mode A 802.3at/af 30W Industrial Switch;
dual 9.5~56VDC input; -20°C to 60°C
8350-9971 IPGS-0208GSFP-12V-E 8 10/100/1000T + 2 1000M SFP w/8 PoE Mode A 802.3at/af 30W Industrial Switch;
dual 9.5~56VDC input; -40°C to 75°C
8350-9962
 IPGS-0208GSFP-24V 8 10/100/1000T + 2 1000M SFP w/8 PoE Mode A 802.3at/af 30W Industrial Switch;
dual 9~36VDC input; -20°C to 60°C
8350-9972
 IPGS-0208GSFP-24V-E 8 10/100/1000T + 2 1000M SFP w/8 PoE Mode A 802.3at/af 30W Industrial Switch;
dual 9~36VDC input; -40°C to 75°C
8350-9942 IGS-0208GSFP-12V 8 10/100/1000T + 2 1G SFP Industrial Switch; dual 9.5~60VDC input; -20°C to 60°C
8350-9943 IGS-0208GSFP-12V-E 8 10/100/1000T + 2 1G SFP Industrial Switch; dual 9.5~60VDC input; -40°C to 75°C
8350-9944
 IGS-0208GSFP-24V 8 10/100/1000T + 2 1G SFP Industrial Switch; dual 9~36VDC input; -20°C to 60°C
8350-9945
 IGS-0208GSFP-24V-E 8 10/100/1000T + 2 1G SFP Industrial Switch; dual 9~36VDC input; -40°C to 75°C

OPTIONAL ACCESSORIES - DIN Rail Power

Model name

Description
NDR-480 Series 480W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-240 Series 240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-120 Series 120W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)
NDR-75 Series 75W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)

OPTIONAL ACCESSORIES - Mini GBIC (SFP)

Model name Description Model name Description
8330-162-V1 MINI GBIC 1000SX (LC/0.5km) Transceiver 8330-189-V1 LTSFP-1000BX-10KM Transceiver (WDM 1550)
8330-163-V1 MINI GBIC 1000SX2 (LC/2km) Transceiver 8330-186-V1 LTSFP-1000BX-20KM Transceiver (WDM 1310)
8330-165-V1 MINI GBIC 1000LX (LC/10km) Transceiver 8330-187-V1 LTSFP-1000BX-20KM Transceiver (WDM 1550)
8340-0591-V1 MINI GBIC 1000LHX (LC/40km) Transceiver 8330-180-V1 LTSFP-1000BX-40KM Transceiver (WDM 1310)
8330-166-V1 MINI GBIC 1000XD (LC/50km) Transceiver 8330-182-V1 LTSFP-1000BX-40KM Transceiver (WDM 1550)
8330-169-V1 MINI GBIC 1000XD (LC/60km) Transceiver 8330-181-V1 LTSFP-1000BX-60KM Transceiver (WDM 1310)
8330-167-V1 MINI GBIC 1000ZX (LC/80km) Transceiver 8330-183-V1 LTSFP-1000BX-60KM Transceiver (WDM 1550)
8330-170-V1 MINI GBIC 1000EZX (120km) Transceiver 8330-184-V1 LTSFP-1000BX-80KM Transceiver (WDM 1490)
8330-168-V1 MINI GBIC 1000T (100m) Transceiver 8330-185-V1 LTSFP-1000BX-80KM Transceiver (WDM 1550)
