I(P)GS-0008B Industrial Ethernet Unmanaged Switch

In stock
SKU:
I(P)GS-0008B

8 10/100TX PoE at/af Industrial Unmanaged Ethernet Switch; 12V/24V/48V input models

Key Features:

  • Support IEEE802.3at/af up to 30W per port
  • Max PoE budget 240W at 48V, 120W at 24V, 80W at 12V input
  • Galvanic isolation protection for dual input.
  • Relay alarm output for power fail and alarm
  • IP30 metal housing with DIN rail and Wall-mount** design
  • Provides EFT and ESD protection

Enquire Now
Enquire Now

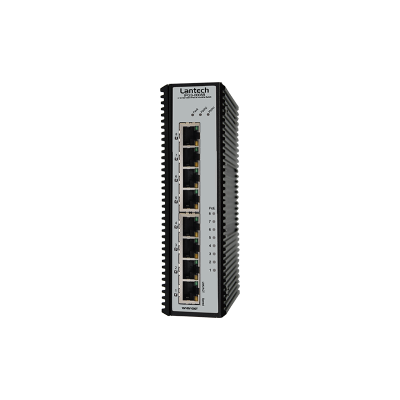

main product photo
We build to order

Hardware Specifications

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3x Flow Control and Back Pressure
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 16Gbps

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet port

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function
Power & P-Fail connector: 1 x 6-pole terminal block

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red);
Ethernet port: Link/Activity (Green), Speed (Amber);
PoE: Active (Green)

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Non-PoE model:
9~60VDC (12V model); 9~36VDC (12V model with E-marking)
9~36VDC (24V model);

PoE model:
9~56VDC (12V model); 9~36VDC (12V model with E-marking)
9~36VDC (24V model);
44~56VDC (48V model)

PoE Budget (PoE model)

240W for 44~56V input (48V model) (50-56VDC input is recommended for 802.3at 30W applications)
80W at 12V input; 120W at 24V input
Higher PoE budget can be applied upon request. **

PoE pin assignment (PoE model)

-8 model:
RJ-45 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W
Positive (VCC+): RJ-45 pin 1,2
Negative (VCC-): RJ-45 pin 3,6

-6 model:
RJ-45 port # 1~#6 support IEEE 802.3at/af End-point. Alternative A mode. Per port provides up to 30W
Positive (VCC+): RJ-45 pin 1,2
Negative (VCC-): RJ-45 pin 3,6

Power Consumption

5W

Galvanic Isolation

Between power input and case ground
Between Ethernet port and case ground
Between power input and Ethernet port

Case Dimension

PoE model, Metal case. IP-30
43 (W) x 105 (D) x 152 (H) mm

Non-PoE model, Metal case. IP-30
35 (W) x 105 (D) x 152 (H) mm

Weight

900g

Installation

DIN Rail and Wall Mount** Design

Relay Alarm

Provides one relay output for power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V

EMI & EMS

FCC Class A, CE EN61000-6-2,
CE EN55032 Class A, CE EN55024,
CE EN61000-4-2, CE EN61000-4-3,
CE EN61000-4-4, CE EN61000-4-5,
CE EN61000-4-6, CE EN61000-4-8

Safety

EN62368 (LVD)

Stability Testing

IEC 60068-2-27 (Shock),
IEC 60068-2-31 (Shock),
IEC 60068-2-64 (Vibration),
IEC 60068-2-80 (Vibration)

Vehicle Certificate

E13 marking (-12V;-24V model)

MTBF

NA

Warranty

5 years
Downloads
pdf
Datasheet
Ordering Information

ORDERING INFORMATION

P/N

Model name

Description
8351-100 IPGS-0008B-48V 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 44~56VDC input; -20°C to 60°C
8351-1001 IPGS-0008B-6-48V 8 10/100/1000T w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 44~56VDC input; -20°C to 60°C
8351-101 IPGS-0008B-48V-E 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 44~56VDC input; -40°C to 75°C
8351-1011 IPGS-0008B-6-48V-E 8 10/100/1000T w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 44~56VDC input; -40°C to 75°C
8351-1022
 IPGS-0008B-12V 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -20°C to 60°C; E-Marked
8351-1023
 IPGS-0008B-6-12V 8 10/100/1000T w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -20°C to 60°C; E-Marked
8351-1032
 IPGS-0008B-12V-E 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -40°C to 75°C; E-Marked
8351-1033
 IPGS-0008B-6-12V-E 8 10/100/1000T w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -40°C to 75°C; E-Marked
8351-102 IPGS-0008B-12V 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~56VDC input; -20°C to 60°C
8351-1021 IPGS-0008B-6-12V 8 10/100/1000T w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~56VDC input; -20°C to 60°C
8351-103 IPGS-0008B-12V-E 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~56VDC input; -40°C to 75°C
8351-1031 IPGS-0008B-6-12V-E 8 10/100/1000T w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~56VDC input; -40°C to 75°C
8351-1002
 IPGS-0008B-24V 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -20°C to 60°C; E-Marked
8351-1003
 IPGS-0008B-6-24V 8 10/100/1000T w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -20°C to 60°C; E-Marked
8351-1004
 IPGS-0008B-24V-E 8 10/100/1000T w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -40°C to 75°C; E-Marked
8351-1005
 IPGS-0008B-6-24V-E 8 10/100/1000T w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -40°C to 75°C; E-Marked
8351-1143
 IGS-0008B-12V 8 10/100/1000T Industrial Ethernet Switch, dual 9V~36VDC input; -20°C to 60°C; E-Marked
8351-1151
 IGS-0008B-12V-E 8 10/100/1000T Industrial Ethernet Switch, dual 9V~36VDC input; -40°C to 75°C; E-Marked
8351-1141
 IGS-0008B-24V 8 10/100/1000T Industrial Ethernet Switch, dual 9V~36VDC input; -20°C to 60°C; E-Marked
8351-1142
 IGS-0008B-24V-E 8 10/100/1000T Industrial Ethernet Switch, dual 9V~36VDC input; -40°C to 75°C; E-Marked
8351-114 IGS-0008B-12V 8 10/100/1000T Industrial Ethernet Switch, dual 9V~60VDC input; -20°C to 60°C
8351-115 IGS-0008B-12V-E 8 10/100/1000T Industrial Ethernet Switch, dual 9V~60VDC input; -40°C to 75°C

OPTIONAL ACCESSORIES - DIN Rail Power

Model name

Description
NDR-480 Series 480W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-240 Series 240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-120 Series 120W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)
NDR-75 Series 75W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)
