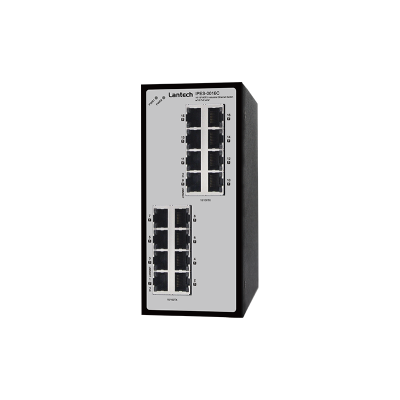

I(P)ES-0016C Industrial Unmanaged Ethernet Switch
16 FE (PoE) at/af Industrial Unmanaged Ethernet Switch; 24V/48V input models
Key Features:
- Support IEEE802.3at/af up to 30W per port
- Max PoE budget 240W at 48V, 80W at 24V
- Galvanic isolation protection for dual input.
- Ignition function & power-saving PoE configuration
- IP30 metal housing with DIN rail and Wall-mount** design
- E-marking certificate for vehicle application (24V model)
The Lantech I(P)ES-0016C is a high-performance 16 10/100TX industrial Ethernet switch with w/8 PoE 802.3af/at ports. It provides the option of a 24V model (9~36V DC supply) or a 48V model (45~56V DC supply), each making use of dual power input and a sturdy design for industrial application. The E-marking* certificate makes it the most suitable switch for bus, carriage, other vehicles application as well as for industrial areas.
PoE Functionality
With a Max PoE budget of 240W at 48V and 80W at 24V, the switch supports supports IEEE802.3at/af standard which can feed HI-power up to 30W at each PoE port for big power consumption devices like PTZ IP camera, High power wireless AP etc. It also incorperates efficient PoE configuration when ignition off, which supports optional PoE feeding OFF timer (1/5/10mins or default by 60mins) at ignition off mode to prevent car battery drain-out. (- IGN model)
Hardened Industrial Design with Dual Power Inputs and Enhanced Protection
The Lantech I(P)ES-0016C can reduce unstable situations caused by power line and Ethernet. It has high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines. The unit is also designed with dual redundant power inputs supporting 44~56VDC (48V model) or 9~36VDC (24V model)
- Galvanic isolation to shield from transients
- Widened temperature range of -40°C~75°C / -40°F~167°F (-E model)
- ISO7637-2 (pulse 5A) compliance for protection against damage from high voltage (24V model)
- IP30 metal housing with DIN rail and optional Wall-mount design
Hardware Specifications
|
Standards |
IEEE802.3 10Base-T Ethernet |
|
Switch Architecture |
Back-plane (Switching Fabric): 3.2Gbps |
|
Transfer Rate |
14,880pps for Ethernet port |
|
Mac Address |
2K MAC address table |
|
Connectors |
10/100TX: 16 x ports RJ-45 with Auto MDI/MDI-X function |
|
Network Cable |
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable |
|
LED |
Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red); |
|
Operating Humidity |
5% ~ 95% (Non-condensing) |
|
Operating Temperature |
-20°C~60°C / -4°F~140°F (Standard model) |
|
Storage Temperature |
-40°C~85°C / -40°F~185°F |
|
Power Supply |
9~36VDC (24V model); |
|
PoE Budget |
240W for 45~56V input (48V model) |
|
PoE pin assignment |
RJ-45 port # 1~#8 supports IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W |
|
Power Consumption |
4.8W (full load without PoE) |
|
Galvanic Isolation |
Between power input and case ground |
|
Case Dimension |
Metal case. IP-30 |
|
Weight |
TBA |
|
Installation |
DIN Rail and Wall Mount** Design |
|
Relay Alarm |
Provides one relay output for power fail and alarm. |
|
EMI & EMS |
FCC Part 15 Subpart B, |
|
Safety |
EN62368 (LVD) |
|
Stability Testing |
IEC 60068-2-27 (Shock), |
|
Vehicle Certificate |
E24 marking ( 24V model) |
|
MTBF |
483,162 hrs (IEC62830 standards) |
|
Warranty |
5 years |
ORDERING INFORMATION
|
P/N |
Model name |
Description |
|---|---|---|
| 8351-14961 | IPES-0016C-48V | 16 10/100TX w/16 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 45~56VDC input; -20°C to 60°C |
| 8351-14962 | IPES-0016C-48V-E | 16 10/100TX w/16 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 45~56VDC input; -40°C to 75°C |
8351-14963 |
IPES-0016C-24V | 16 10/100TX w/16 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9~36VDC input; compliant with ISO7637; -20°C to 60°C |
| 8351-14964 |
IPES-0016C-24V-E | 16 10/100TX w/16 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9~36VDC input; compliant with ISO7637; -40°C to 75°C |
| 8351-14965 |
IPES-0016C-24V-IGN | 16 10/100TX w/16 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9~36VDC input; compliant with ISO7637; -20°C to 60°C w/ignition default PoE OFF 60min. |
| 8351-14966 |
IPES-0016C-24V-IGN-E | 16 10/100TX w/16 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9~36VDC input; compliant with ISO7637; -40°C to 75°C w/ignition default PoE OFF 60min. |
| 8351-14974 | IES-0016C | 16 10/100TX Industrial Ethernet Switch, dual 12~56VDC input; compliant with ISO7637; -20°C to 60°C |
| 8351-14975 | IES-0016C-E | 16 10/100TX Industrial Ethernet Switch, dual 12~56VDC input; compliant with ISO7637; -40°C to 75°C |
| 8351-14976 |
IES-0016C-24V | 16 10/100TX Industrial Ethernet Switch, dual 9~36VDC input; compliant with ISO7637; -20°C to 60°C |
| 8351-14977 |
IES-0016C-24V-E | 16 10/100TX Industrial Ethernet Switch, dual 9~36VDC input; compliant with ISO7637; -40°C to 75°C |
| 8351-14978 |
IES-0016C-24V-IGN | 16 10/100TX Industrial Ethernet Switch, dual 9~36VDC input; compliant with ISO7637; -20°C to 60°C w/ignition |
| 8351-14979 |
IES-0016C-24V-IGN-E | 16 10/100TX Industrial Ethernet Switch, dual 9~36VDC input; compliant with ISO7637; -40°C to 75°C w/ignition |
OPTIONAL ACCESSORIES - DIN Rail Power
|
Model name |
Description |
|---|---|
| NDR-480 Series | 480W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C) |
| NDR-240 Series | 240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C) |
| NDR-120 Series | 120W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet) |
| NDR-75 Series | 75W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet) |
