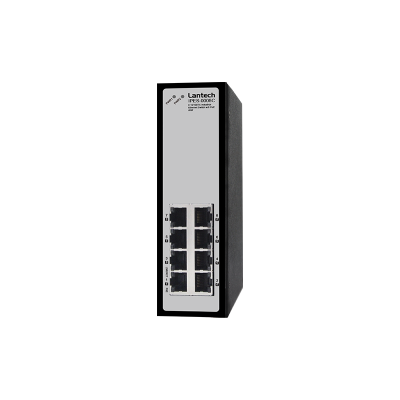

I(P)ES-0008C Industrial Unmanaged Ethernet Switch

In stock

SKU:

I(P)ES-0008C

8 10/100TX PoE at/af Industrial Unmanaged Ethernet Switch; 24V/48V input models

Key Features:

Support IEEE802.3at/af up to 30W per port
Max PoE budget 240W at 48V, 80W at 24V
Galvanic isolation protection for dual input.
Optional PoE feeding OFF timer dip for power saving
IP30 & IP40 metal housing with DIN rail and Wall-mount** design
Provides EFT and ESD protection

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications

Hardware Specifications

Standards	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX IEEE802.3x Flow Control and Back Pressure IEEE802.3at/af Power over Ethernet
Switch Architecture	Back-plane (Switching Fabric): 1.6Gbps
Transfer Rate	14,880pps for Ethernet port 148,800pps for Fast Ethernet port
Mac Address	2K MAC address table
Connectors	10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function Power & P-Fail connector: 1 x 6-pole terminal block
Network Cable	10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m)
LED	Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red); Ethernet port: Link/Activity (Green) PoE : Active (Green)
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	-20°C~60°C / -4°F~140°F (Standard model) -40°C~75°C / -40°F~167°F(-E model)
Storage Temperature	-40°C~85°C / -40°F~185°F
Power Supply	9~36VDC (24V model); 45~56VDC (48V model) 12~56VDC (non-PoE model)
PoE Budget (PoE model)	240W for 45~56V input (48V model) (50-57VDC input is recommended for 802.3at 30W applications) 80W at 24V input A higher PoE budget can be applied upon request. **
PoE pin assignment (PoE model)	RJ-45 port # 1~#8 supports IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W Positive (VCC+): RJ-45 pin 1,2 Negative (VCC-): RJ-45 pin 3,6
Power Consumption	3W
Galvanic Isolation	Between power input and case ground Between Ethernet port and case ground Between power input and Ethernet port
Case Dimension	Metal case. IP-30 40 (W) x 105 (D) x 152 (H) mm
Weight	TBA
Installation	DIN Rail and Wall Mount** Design
EMI & EMS	FCC Part 15 Subpart B, EN 55035:2017/A11:2020, EN 55032:2015/A11:2020, IEC 61000-4-2:2008, IEC 61000-4-3:2020, IEC 61000-4-4:2012, IEC 61000-4-5:2014+AMD1:2017 CSV, IEC 61000-4-6:2023, IEC 61000-4-8:2009, IEC 61000-6-2:2016, IEC 61000-6-4:2018, EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019, BS EN 55035:2017/A11:2020, BS EN 55032:2015/A11:2020,
Safety	EN62368 (LVD)
Stability Testing	IEC 60068-2-27 (Shock), IEC 60068-2-31 (Shock), IEC 60068-2-64 (Vibration), IEC 60068-2-80 (Vibration)
Vehicle Certificate	E13 marking (-12V;-24V model)
MTBF	965,429 hrs (IEC62830 standards)
Warranty	5 years

Downloads

Datasheet

Ordering Information

ORDERING INFORMATION

P/N	Model name	Description
8351-149	IPES-0008C-48V	8 10/100TX w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 45~56VDC input; -20°C to 60°C
8351-14901	IPES-0008C-48V-E	8 10/100TX w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 45~56VDC input; -40°C to 75°C
8351-1491	IPES-0008C-24V	8 10/100TX w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9~36VDC input; compliant with ISO7637; -20°C to 60°C
8351-14911	IPES-0008C-24V-E	8 10/100TX w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9~36VDC input; compliant with ISO7637; -40°C to 75°C
8351-1492	IPES-0008C-24V-IGN	8 10/100TX w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9~36VDC input; compliant with ISO7637; -20°C to 60°C w/ignition
8351-14921	IPES-0008C-24V-IGN-E	8 10/100TX w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9~36VDC input; compliant with ISO7637; -40°C to 75°C w/ignition
8351-1493	IES-0008C-48V	8 10/100TX Industrial Ethernet Switch, dual 12~56VDC input; compliant with ISO7637; -20°C to 60°C
8351-14931	IES-0008C-48V-E	8 10/100TX Industrial Ethernet Switch, dual 12~56VDC input; compliant with ISO7637; -40°C to 75°C
8351-1494	IES-0008C-24V	8 10/100TX Industrial Ethernet Switch, dual 9~36VDC input; compliant with ISO7637; -20°C to 60°C
8351-14941	IES-0008C-24V-E	8 10/100TX Industrial Ethernet Switch, dual 9~36VDC input; compliant with ISO7637; -40°C to 75°C
8351-1495	IES-0008C-24V-IGN	8 10/100TX Industrial Ethernet Switch, dual 9~36VDC input; compliant with ISO7637; -20°C to 60°C w/ignition
8351-14951	IES-0008C-24V-IGN-E	8 10/100TX Industrial Ethernet Switch, dual 9~36VDC input; compliant with ISO7637; -40°C to 75°C w/ignition

OPTIONAL ACCESSORIES - DIN Rail Power

Model name	Description
NDR-480 Series	480W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-240 Series	240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-120 Series	120W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)
NDR-75 Series	75W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)
