I(P)ES-0008B Industrial Unmanaged Ethernet Switch

In stock
SKU:
I(P)ES-0008B

8 10/100TX PoE at/af Industrial Unmanaged Ethernet Switch; 12V/24V/48V input models

Key Features:

  • Support IEEE802.3at/af up to 30W per port
  • Max PoE budget 240W at 48V, 120W at 24V, 80W at 12V input
  • Galvanic isolation protection for dual input.
  • Relay alarm output for power fail and alarm
  • IP30 & IP40 metal housing with DIN rail and Wall-mount** design
  • Provides EFT and ESD protection

Enquire Now
Enquire Now

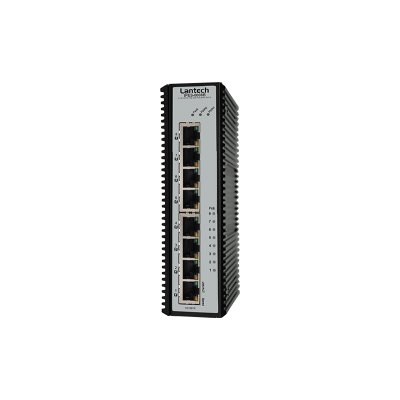

main product photo
We build to order

Hardware Specifications

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3x Flow Control and Back Pressure
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 1.6Gbps

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port

Mac Address

16K MAC address table

Connectors

10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function
Power & P-Fail connector: 1 x 6-pole terminal block

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red);
Ethernet port: Link/Activity (Green)
PoE : Active (Green)

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Non-PoE model:
9~60VDC (12V model); 9~36VDC (12V model with E-marking)
9~36VDC (24V model);

PoE model:
9~56VDC (12V model); 9~36VDC (12V model with E-marking)
9~36VDC (24V model);
44~56VDC (48V model)

PoE Budget (PoE model)

240W for 45~56V input (48V model) (50-56VDC input is recommended for 802.3at 30W applications)
80W at 12V input
120W at 24V input
Higher PoE budget can be applied upon request. **

PoE pin assignment (PoE model)

-8 model:
RJ-45 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W

-6 model:
RJ-45 port # 1~#6 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W.
Positive (VCC+): RJ-45 pin 1,2
Negative (VCC-): RJ-45 pin 3,6

Power Consumption

5W

Galvanic Isolation

Between power input and case ground
Between Ethernet port and case ground
Between power input and Ethernet port

Case Dimension

Metal case. IP-30 & IP40
43 (W) x 105 (D) x 152 (H) mm (PoE model)
35 (W) x 105 (D) x 152 (H) mm (non-PoE model)

Weight

900g

Installation

DIN Rail and Wall Mount** Design

Relay Alarm

Provides one relay output for power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V

EMI & EMS

FCC Class A,
CE EN55032 Class A, CE EN55024,
CE EN61000-4-2, CE EN61000-4-3,
CE EN61000-4-4, CE EN61000-4-5,
CE EN61000-4-6, CE EN61000-4-8 ,
CE EN61000-6-2

Safety

EN62368 (LVD)

Stability Testing

IEC 60068-2-27 (Shock),
IEC 60068-2-31 (Shock),
IEC 60068-2-64 (Vibration),
IEC 60068-2-80 (Vibration)

Vehicle Certificate

E13 marking (-12V;-24V model)

MTBF

1,022,402 hrs (IEC62830 standards)

Warranty

5 years
Downloads
pdf
Datasheet
Ordering Information

ORDERING INFORMATION

P/N

Model name

Description
8351-108 IPES-0008B-48V 8 10/100TX w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 45~56VDC input; -20°C to 60°C
8351-1081 IPES-0008B-6-48V 8 10/100TX w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 45~56VDC input; -20°C to 60°C
8351-109 IPES-0008B-48V-E 8 10/100TX w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 45~56VDC input; -40°C to 75°C
8351-1091 IPES-0008B-6-48V-E 8 10/100TX w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 45~56VDC input; -40°C to 75°C
8351-1104
 IPES-0008B-12V 8 10/100TX w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -20°C to 60°C; E-Marked
8351-1105
 IPES-0008B-6-12V 8 10/100TX w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -20°C to 60°C; E-Marked
8351-1114
 IPES-0008B-12V-E 8 10/100TX w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -40°C to 75°C; E-Marked
8351-1115
 IPES-0008B-6-12V-E 8 10/100TX w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -40°C to 75°C; E-Marked
8351-110 IPES-0008B-12V 8 10/100TX w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~56VDC input; -20°C to 60°C
8351-1101 IPES-0008B-6-12V 8 10/100TX w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~56VDC input; -20°C to 60°C
8351-111 IPES-0008B-12V-E 8 10/100TX w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~56VDC input; -40°C to 75°C
8351-1111 IPES-0008B-6-12V-E 8 10/100TX w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~56VDC input; -40°C to 75°C
8351-1102
 IPES-0008B-24V 8 10/100TX w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -20°C to 60°C; E-Marked
8351-1103
 IPES-0008B-6-24V 8 10/100TX w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -20°C to 60°C; E-Marked
8351-1112
 IPES-0008B-24V-E 8 10/100TX w/8 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -40°C to 75°C; E-Marked
8351-1113
 IPES-0008B-6-24V-E 8 10/100TX w/6 PoE Mode A 802.3at/af 30W Industrial Ethernet Switch; dual 9V~36VDC input; -40°C to 75°C; E-Marked
8351-118 IES-0008B-12V 8 10/100TX Industrial Ethernet Switch, dual 9V~60VDC input; -20°C to 60°C
8351-119 IES-0008B-12V-E 8 10/100TX Industrial Ethernet Switch, dual 9V~60VDC input; -40°C to 75°C
8351-120 IES-0008B-40-12V 8 10/100TX IP40 Industrial Ethernet Switch, dual 9V~60VDC input; -20°C to 60°C
8351-121 IES-0008B-40-12V-E 8 10/100TX IP40 Industrial Ethernet Switch, dual 9V~60VDC input; -40°C to 75°C
8351-1181
 IES-0008B-24V 8 10/100TX Industrial Ethernet Switch, dual 9V~36VDC input; -20°C to 60°C; E-Marked
8351-1191
 IES-0008B-24V-E 8 10/100TX Industrial Ethernet Switch, dual 9V~36VDC input; -40°C to 75°C; E-Marked
8351-1202
 IES-0008B-40-12V 8 10/100TX IP40 Industrial Ethernet Switch, dual 9V~36VDC input; -20°C to 60°C; E-Marked
8351-1212
 IES-0008B-40-12V-E 8 10/100TX IP40 Industrial Ethernet Switch, dual 9V~36VDC input; -40°C to 75°C; E-Marked
8351-1201
 IES-0008B-24V 8 10/100TX Industrial Ethernet Switch, dual 9V~36VDC input; -20°C to 60°C; E-Marked
8351-1211
 IES-0008B-24V-E 8 10/100TX Industrial Ethernet Switch, dual 9V~36VDC input; -40°C to 75°C; E-Marked
8351-1201
 IES-0008B-40-24V 8 10/100TX IP40 Industrial Ethernet Switch, dual 9V~36VDC input; -20°C to 60°C; E-Marked
8351-1211
 IES-0008B-40-24V-E 8 10/100TX IP40 Industrial Ethernet Switch, dual 9V~36VDC input; -40°C to 75°C; E-Marked

OPTIONAL ACCESSORIES - DIN Rail Power

Model name

Description
NDR-480 Series 480W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-240 Series 240W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C)
NDR-120 Series 120W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)
NDR-75 Series 75W Single Output Industrial Din Rail Power; 90-264VAC / 127-370VDC Input Range; Cooling by free air convection; RoHS2 ; Operating Temp. -20°C~70°C (ambient, derating each output at 2.5% per degree from 50°C ~ 70°C; For 115VAC, please refer to derating curve on NDR-120 Series datasheet)
