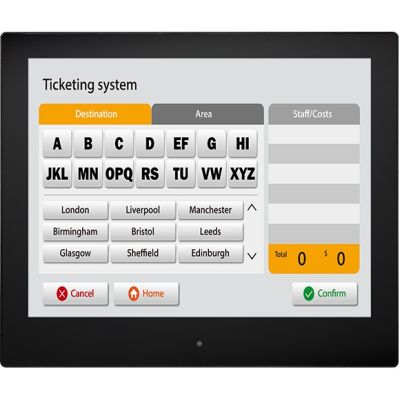

HPPC15-10X7211 15” High Brightness Panel PC with Atom X7211RE
15” TFT XGA 4:3 Slim Bezel, High Brightness Panel PC Powered by Intel Atom® X7211RE Processor
Key Features:
- 15” 4:3 ratio 1800 nits sunlight readable panel
- Optical Bonding with AF, AG Anti-UV & IR treatment
- Embedded light sensor for auto-dimming
- 2 x PWM Smart Fan
- Intel Atom® x7211RE Processor 6M Cache, up to 3.2 GHz
- 1 x DDR4 SO-DIMM socket, up to 32GB
- Expansion : 1 x M.2 Key M, 1 x Mini PCIe
- Support a wide range power input: DC 12V to 24V
The HPPC15-10X7211, powered by Intel Atom® X7211RE, offers industrial competitiveness by providing high performance, low power consumption, and real-time processing in harsh environmental conditions. Featuring a G-series 10-point PCAP touch panel with 1800 nits luminance, the HPPC15-10x7211 utilises optical bonding with Anti-UV, AF, AG coating and IR treatment, along with IP65-rated protection for enhanced durability. Its built-in light sensor and smart fan control function optimise energy efficiency and enable brightness autodimming, extending the product’s lifespan. The HPPC15-10X7211 supports 12V to 24V power input and a wide-range operating temperature of -20~60°C, delivering an excellent user experience for semi-outdoor applications, including automated parking systems, recycling machines and parking payment machines.
|
Category |
Specification |
|---|---|
|
Panel |
|
|
LCD Size |
15", 4:3 aspect ratio |
|
Resolution |
XGA 1024 x 768 |
|
Luminance |
- LCD panel: 1800 cd/m²- With PCAP touch (optical bonding): 80% of panel luminance |
|
Contrast Ratio |
2500:1 |
|
LCD Colors |
16.7 million |
|
Viewing Angle |
88° (Up), 88° (Down), 88° (Left), 88° (Right) |
|
Touch Screen |
|
|
Type |
10-point Projected Capacitive (P-Cap) |
|
Features |
Optical bonding with anti-UV and IR protection |
|
Surface Treatment |
Anti-Fingerprint (AF) & Anti-Glare (AG) |
|
System |
|
|
Processor |
Intel Atom® X7211RE (embedded) |
|
Graphics |
Intel® UHD Graphics |
|
Security |
TPM 2.0 |
|
Other Features |
Built-in light sensor board & smart fan control |
|
Main Memory |
|
|
RAM |
1 x SO-DIMM socket, non-ECC, up to 32GB |
|
Storage |
|
|
Primary Storage |
1 x M.2 Key M 2242 NVMe SSD (PCIe 3.0 x1 / SATA 3.0) |
|
Expansion Slot |
1 x Mini PCIe slot, supports mSATA |
|
Expansion |
|
|
Slot |
1 x Mini PCIe slot (supports 4G / Wi-Fi + BT / mSATA) |
|
I/O Interfaces – Rear |
|
|
Ethernet |
2 x 1GbE RJ45 ports (Intel® i210AT) |
|
Display Output |
1 x HDMI® 2.0b (up to 3840 x 2160 @ 60Hz) |
|
USB Ports |
2 x USB 3.2 Gen 1 (5Gbps, Type-A)2 x USB 2.0 |
|
Other |
1 x Power button1 x 3-pin Phoenix connector (DC 12V–24V input) |
|
I/O Interfaces – Front |
|
|
Antenna |
2 x Antenna holes |
|
Serial Port |
1 x COM port (DB9), supports RS-232/422/485 |
|
Audio Output |
1 x Line-out |
|
I/O Interfaces – Internal |
|
|
USB Header |
1 x 4-pin header for USB 2.0 |
|
Audio Header |
1 x 4-pin header for speaker out1 x 3-pin header for MIC in |
|
Serial Header |
1 x 10-pin header for RS-232 |
|
LED Header |
1 x 3-pin header for power LED |
|
GPIO |
1 x 10-pin header for 4-in / 4-out GPIO |
|
Mechanical & Dimensions |
|
|
Material & Color |
Black metal sheet |
|
Mounting |
VESA Mount (100mm x 100mm) |
|
System Unit |
Dimensions: 351.9mm (W) x 295.75mm (D) x 58.15mm (H)Net Weight: 4.2kg |
|
Packaging |
Carton Dimensions: 498mm (W) x 478mm (D) x 181mm (H)Gross Weight: 5.8kg (1 unit per carton) |
|
Power Requirements |
|
|
Input Voltage |
DC 12V to 24V |
|
Environment |
|
|
Operating Temperature |
-20°C to 60°C (with airflow) |
|
Storage Temperature |
-20°C to 80°C |
|
Humidity |
10% to 90% (non-condensing) |
|
Shock Protection |
20G peak acceleration, 11ms (IEC 60068-2-27) |
|
Vibration Protection |
- Random: 2Grms @ 5–500Hz (IEC 60068-2-64)- Sinusoidal: 2G @ 5–500Hz (IEC 60068-2-6) |
|
Certifications |
CE (EN 55035 + EN 55032)FCC Class A (EMI Part 15B)LVD (EN 62368-1) |
|
Operating System |
Windows 11Windows 10 (64-bit)Linux |
HPPC 15-10X7211 (P/N:10W60HPPC00X0)
HPPC 15-10X7211 15” TFT 1800 nits Panel PC, P-CAP, Optical Bonding,
w/ XPPB-10X7211
Panel mount kit (P/N: 5061711301X00)
Panel Mount BKT for XPPC24-100 SIN SUPER CIRCLE 30x20x6mm
SECC T=1.6mm
