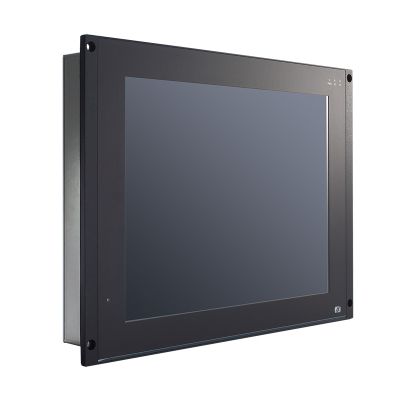

GOT715S EN50155 15" Railway Fanless Touchscreen Panel PC

In stock

SKU:

GOT715S-RA-M

Brand: Axiomtek

EN50155 Compliant 15" XGA TFT LCD Railway Fanless Touchscreen Panel PC with Intel Atom Processor E3845 1.91 GHz (-25°C to +70°C)

Key Features:

Sunlight readable 15" XGA TFT LCD with 800 nits of high brightness
Fanless with Intel Atom® processor E3845 1.91 GHz
All lockable connector design
Auto-dimming for different environments
-25°C to +70°C wide temperature range
Typical 24 to 110 VDC wide power input range and EN 50155 Class S3 20ms power interruption protection compliant
EN 50155 design compliance

Enquire Now

Enquire about this product:

Name

Phone

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The GOT715s from Axiomtek is an EN50155 Compliant Railway Fanless Touchscreen Panel PC, featuring a 15" XGA TFT LCD with 800 nits brightness for optimal visibility in any lighting. Powered by an Intel Atom® processor E3845, it ensures robust performance in temperatures from -25°C to +70°C. With all-lockable connectors, auto-dimming, and wide power input range compliance, it guarantees secure connectivity, adaptability, and uninterrupted operation, meeting the stringent standards of the railway industry.

This product is listed in Axiomtek, Transport

Specifications

LCD Panel	15" TFT LCD 800 nits 1024 x 768 pixels
CPU	Intel® Atom® processor E3845 1.91 GHz (Bay Trail)
Chipset	SoC integrated
System Memory	DDR3L 4GB onboard
BIOS	AMI
COM	2 x Isolated M12 A-coded RS-232/422/485 (isolation level 1.5kV)
USB	1 x M12 A-coded USB 2.0 (2 port signal)
Ethernet	2 x Isolated M12 X-coded GbE (isolation level 1.5kV)
Display	N/A
Audio	1 x DB15 audio line-in, mic-in, speaker-out or line-out
CANbus	1 x Isolated DB9 CANbus (isolation level 1.5kV)
DIO	1 x Isolated terminal block DIO (6-in/2-out, isolation level 1.5kV)
Storage	16GB flash onboard
Expansion	2 x PCI Express Mini Card slot (slot2 for mSATA use only)
Others	Auto-dimming for different environments
Touchscreen	5-wire resistive touchscreen
Front Bezel	IP65-rated aluminum front bezel and IP40-rated rear protection
Power Supply	1 x M12 A-coded DC-in Typical 24 to 110 VDC EN 50155 S3 20ms power interruption protection
Power Comsumption	[email protected]
Watchdog Timer	255 levels, 1 to 255 sec.
Operating Temperature	-25°C to +70°C (-13°F to +158°F)
Relative Humidity	10% - 95% @ +40°C, non-condensing
Vibration	N/A
Dimensions (W x D x H)	400 x 61.5 x 300 mm (15.75" x 2.42" x 11.81")
Weight (net/gross)	4.03 kg (8.89 lb) / 6.43 kg (14.18 lb)
Certifications	CE/FCC Class A EN 50155 compliant
EOS	Windows® 10, Windows® 10 IoT, Windows® 7, WES 7
Mounting	Wall mount VESA mount

Downloads

got715s.pdf
