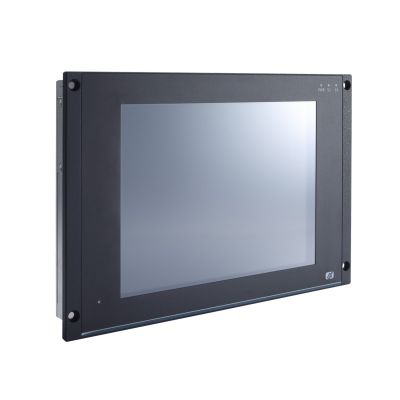

GOT712S 12.1" Railway Fanless Touchscreen Panel PC with Atom E3845

In stock

SKU:

GOT712S-R-E3845-24-110VDC

EN50155 S3 12.1" XGA TFT LCD Railway Fanless Touchscreen Panel PC with Intel Atom® Processor E3845 1.91 GHz (-40°C to +70°C)

Key Features:

Sunlight readable 12.1" XGA TFT LCD with 800 nits of high brightness
Fanless with Intel Atom® processor E3845 1.91 GHz
All lockable connector design
Auto-dimming for different environments
-40°C to +70°C wide temperature range
Typical 24 to 110 VDC wide power input range, EN 50155
Class S3 20ms power interruption protection
EN 50155, EN 45545-2 certified for railway application

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The GOT712S-837 is powered by the quad-core Intel® Atom™ processor E3845 (Bay Trail) and features a 12.1-inch XGA TFT LCD display with a 1024 x 768 resolution and 800 nits of brightness. It includes 4GB of onboard DDR3L memory, 16GB of onboard flash storage, and one mSATA port for expanded storage capabilities.

Designed to meet the demanding requirements of the railway industry, the GOT712S-837 supports a wide range of transportation communication protocols. It includes two isolated M12 A-coded RS-232/422/485 ports, two isolated M12 X-coded GbE LAN ports, one M12 A-coded USB 2.0 port, one M12 A-coded DC-in, a DB15 audio (line-in/out) interface, an isolated terminal block DIO (6-in/2-out) port, and an isolated DB9 CANbus port. For enhanced connectivity, it provides two PCI Express Mini Card slots for wireless communication.

The GOT712S-837 also offers multiple mounting options, including wall, VESA, and suspension mounting. It supports Windows® 10, 8, and 7 operating systems, making it a versatile and rugged solution for transportation applications.

Specifications

LCD Panel	12.1" XGA TFT LCD 800 nits 1024 x 768 pixels
CPU	Intel® Atom™ processor E3845 1.91 GHz (Bay Trail)
Chipset	SoC integrated
System Memory	DDR3L 4GB onboard
BIOS	AMI
COM	2 x Isolated M12 A-coded RS-232/422/485 (isolation level 1.5kV)
USB	1 x M12 A-coded USB 2.0 (2 port signal)
Ethernet	2 x Isolated M12 X-coded GbE (isolation level 1.5kV)
Display	N/A
Audio	1 x DB15 audio (line-in/mic-in/speaker-out/line-out)
Storage	16GB flash onboard 1 x mSATA
DIO	1 x Isolated terminal block DIO (6-in/2-out, isolation level 1.5kV)
CANbus	1 x Isolated DB9 CANbus (isolation level 1.5kV)
Expansion	2 x PCI Express Mini Card slot (slot2 for mSATA use only)
Others	N/A
Touchscreen	5-wire resistive touchscreen
Front Bezel	IP65-rated aluminum front bezel and IP40-rated rear protection
Power Supply	1 x M12 A-coded DC-in Typical 24 to 110 VDC EN 50155 S3 20ms power interruption protection
Power Comsumption	24-110VDC, 1.7-0.32A
Watchdog Timer	255 levels, 1 to 255 seconds
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	10% to 95% @ +40°C, non-condensing
Vibration	N/A
Dimensions (W x D x H)	330 x 61.5 x 245 mm (13" x 2.42" x 9.65")
Weight (net/gross)	2.95 kg (6.50 lb)/5.35 kg (11.79 lb)
Certifications	CE/FCC Class A, EN 50155, EN 50121-3-2, EN 61373, EN 45545-2 certified
EOS	Windows® 10, Windows® 10 IoT, Windows® 7, WES 7
Mounting	Wall mount, VESA mount

Downloads

Datasheet

Ordering Information

GOT712S-R-E3845-24-110VDC (P/N-E22B712102)
12" XGA railway fanless touch panel computer with Intel Atom® E3845, sunlight readable LCD (800 nits), 5-wire resistive touchscreen, and 24 to 110 VDC power input, S3 20ms power interruption protection

822B7100140E
GOT712 3G+GPS kit

8812B7100A0E
GOT712 Wi-Fi kit

594B8122820E
M12 A-coded USB cable

594B7102100E
RS-232 cable

594B7102700E
M12 X-coded LAN cable

594B7100B00E
M12 DC-in power cable with ACC signal, length 1.8M
