GOT710S 10.4" Railway Fanless Touchscreen Panel PC with Atom E3845

In stock
SKU:
GOT710S-R-E3845-24-110VDC

EN50155 S3 10.4" SVGA TFT LCD Railway Fanless Touchscreen Panel PC with Intel Atom® Processor E3845 1.91 GHz (-40°C to +70°C)

Key Features:

  • Sunlight readable 10.4" SVGA TFT LCD with 1000 nits of high brightness
  • Intel Atom® processor E3845 1.91 GHz
  • Alternative keypad control in the front bezel
  • M12-type lockable connector design
  • Auto-dimming for different environments
  • -40°C to +70°C wide temperature range
  • Typical 24 to 110 VDC wide power input range, EN 50155
  • Class S3 20ms power interruption protection
  • EN 50155, EN 45545-2 certified for railway application

Enquire Now
Enquire Now

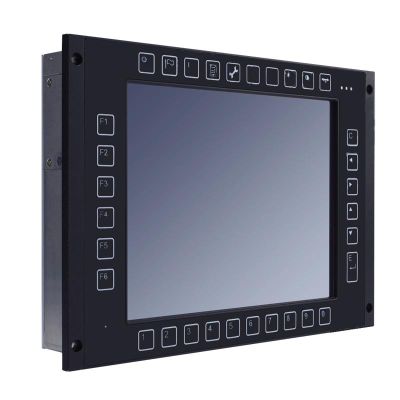

main product photo
We build to order

The GOT710S-837 is a rugged panel PC powered by the quad-core Intel® Atom™ processor E3845 (Bay Trail). It features a 10.4-inch SVGA TFT LCD display with a resistive touchscreen and a high brightness level of 1000 nits, ensuring visibility in challenging environments. For added convenience, the front bezel includes optional keypads to facilitate easy control and cleaning.

Designed for transportation applications, particularly in the railway industry, the GOT710S-837 supports a wide range of communication protocols. It includes two isolated M12 A-coded RS-232/422/485 ports, two isolated M12 X-coded GbE LAN ports, one M12 A-coded USB 2.0 port, one M12 A-coded DC-in, one DB15 audio (line-in/out), one isolated terminal block DIO (6-in/2-out) port, and one isolated DB9 CANbus port. For enhanced connectivity, it also offers two PCI Express Mini Card slots for wireless expansion.

The system is equipped with 4GB of onboard DDR3L memory, 16GB of onboard flash storage, and one mSATA port for additional storage capacity. Installation is flexible with support for wall, VESA, and suspension mounting. The GOT710S-837 is compatible with Windows® 10.


Specifications

LCD Panel

  • 10.4" TFT LCD

  • 1000 nits

  • 800 x 600 pixels

CPU

  • Intel Atom® processor E3845 1.91 GHz (Bay Trail)

Chipset

  • SoC integrated

System Memory

  • DDR3L 4GB onboard

BIOS

  • AMI

COM

  • 2 x Isolated M12 A-coded RS-232/422/485 (isolation level 1.5kV)

USB

  • 1 x M12 A-coded USB 2.0 (2 port signal)

Ethernet

  • 2 x isolated M12 X-coded GbE (isolation level 1.5kV)

Display

  • N/A

Audio

  • 1 x DB15 audio (line-in/mic-in/speaker-out/line-out)

Storage

  • 16GB flash onboard

  • 1 x mSATA

DIO

  • 1 x Isolated terminal block DIO (6-in/2-out, isolation level 1.5kV)

CANbus

  • 1 x Isolated DB9 CANbus (isolation level 1.5kV)

Expansion

  • 2 x PCI Express Mini Card slot (slot2 for mSATA use only)

Others

  • N/A

Touchscreen

  • 5-wire resistive touchscreen with or without keyboard

Front Bezel

  • IP65-rated aluminum front bezel and IP40-rated rear protection

Power Supply

  • 1 x M12 A-coded DC-in

  • Typical 24 to 110 VDC

  • EN 50155 Class S3 20ms power interruption protection

Power Comsumption

  • 24-110VDC, 1.4-0.29A

Watchdog Timer

  • 255 levels, 1 to 255 seconds

Operating Temperature

  • -40°C to +70°C (-40°F to +158°F)

Relative Humidity

  • 10% to 95% @ +40°C, non-condensing

Vibration

  • N/A

Dimensions (W x D x H)

  • 310 x 61.5 x 214 mm (12.20" x 2.42" x 8.43")

Weight (net/gross)

  • 2.6kg (5.73lb)/4.4kg (9.7lb)

Certifications

  • CE/FCC Class A, EN 50155, EN 50121-3-2, EN 61373, EN 45545-2 certified and UIC-612-01 Keypad layout complied

EOS

  • Windows® 10, Windows® 10 IoT, Windows® 7, WES 7

Mounting

  • Wall mount

  • VESA mount
Downloads
pdf
Datasheet
Ordering Information

GOT710S-R-E3845-24-110VDC (P/N-E22B710110)
10.4" SVGA railway fanless touchscreen panel PC with Intel Atom® E3845, sunlight readable LCD (1000 nits), 5-wire resistive touchscreen, 24 to 110 VDC power input, EN 50155 Class S3 20ms power interruption protection

GOT710S-R-E3845-24-110VDC with keypad (P/N-E22B710111)
10.4" SVGA railway fanless touchscreen panel PC with Intel Atom® E3845, sunlight readable LCD (1000 nits), 5-wire resistive touchscreen, 24 to 110 VDC power input, EN 50155 Class S3 20ms power interruption protection and keypad

822B7100140E
GOT710 3G+GPS kit

8812B7100A0E
GOT710 Wi-Fi kit

594B8122820E
M12 A-coded USB cable

594B7102100E
RS-232 cable

594B7102700E
M12 X-coded LAN cable

594B7100B00E
M12 DC-in power cable with ACC signal, length 1.8M
