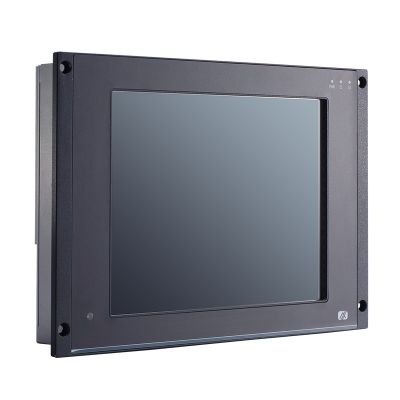

GOT710A 10.4" Railway Fanless Touchscreen Panel PC with Atom x6425E
EN 50155 S3 10.4" XGA TFT LCD Railway Fanless Touchscreen Panel PC with Intel Atom® Processor x6425E (12W) 2.0 GHz (-40°C to +70°C)
Key Features:
- Sunlight readable 10.4" XGA TFT LCD
- Intel Atom® processor x6425E, 12W (Elkart Lake)
- Alternative keypad control on the front bezel
- M12-type lockable connector design
- Auto-dimming for different environments
- -40°C to +70°C wide temperature range (EN 50155 OT4)
- Typical 24 to 110 VDC wide power input range, EN 50155 Class S3 20ms power interruption protection
- EN 50155 and EN 45545-2 certified for railway applications
The GOT710A has a 10.4-inch XGA TFT LCD with a projected capacitive touch and 500 nits of brightness. It features alternative keypads on the front bezel, compliant with UIC-612-01 standards, offering convenient operation and easy cleaning. The GOT710A supports one 260-pin DDR4-3200 SO-DIMM slot with up to 32GB of system memory and one M.2 Key B 2242 SSD for expansive storage. For expansion, it includes one full-size PCIe Mini Card slot (supporting USB/PCIe/SIM), one full-size Mini Card slot (supporting PCIe/USB/mSATA), and an M.2 Key A + E 2230 slot. The ruggedized panel PC features a comprehensive range of M12-coded I/O connectors, including dual RS-232/422/485, dual GbE LAN, USB 2.0, and CAN bus interfaces, delivering robust connectivity options tailored for diverse railway applications.
The GOT710A's flexibility is further enhanced by its innovative I/O expansion window, enabling seamless customization to meet specific user requirements. This feature is particularly beneficial for applications that demand quick adjustments or unique interfaces, such as integration with a Multifunction Vehicle Bus (MVB). Moreover, the railway panel PC offers flexible mounting options including wall mounting and VESA mounting. Windows® 11 and Linux operating systems are also available. Axiomtek's GOT710A is available now.
|
LCD Panel |
|
|
CPU |
|
|
Chipset |
|
|
System Memory |
|
|
BIOS |
|
|
COM |
|
|
USB |
|
|
Ethernet |
|
|
Display |
|
|
Audio |
|
|
CANbus |
|
|
Storage |
|
|
DIO |
|
|
Expansion |
|
|
Others |
|
|
Touchscreen |
|
|
Front Bezel |
|
|
Power Supply |
|
|
Power Comsumption |
|
|
Watchdog Timer |
|
|
Operating Temperature |
|
|
Relative Humidity |
|
|
Vibration |
|
|
Dimensions (W x D x H) |
|
|
Weight (net/gross) |
|
|
Certifications |
|
|
EOS |
|
|
Mounting |
|
GOT710A-ELK-TC (P/N-E22B710A00)
10.4" XGA railway fanless touchscreen panel PC with Intel Atom® x6425E, sunlight readable LCD (500 nits), projected capacitive touchscreen, 24 to 110 VDC power input, EN 50155 Class S3 20ms power interruption protection
GOT710A-ELK-TCK (P/N-E22B710A01)
10.4" XGA railway fanless touchscreen panel PC with Intel Atom® x6425E, sunlight readable LCD (500 nits), projected capacitive touchscreen, 24 to 110 VDC power input, EN 50155 Class S3 20ms power interruption protection, and keypad
GOT7XX LTE Kit
GOT7XX Wi-Fi Kit
594B8122820E
M12 A-coded USB cable
594B7102100E
RS-232 cable
594B7102700E
M12 X-coded LAN cable
594B7100B00E
M12 DC-in power cable with ACC signal, length 1.8M
