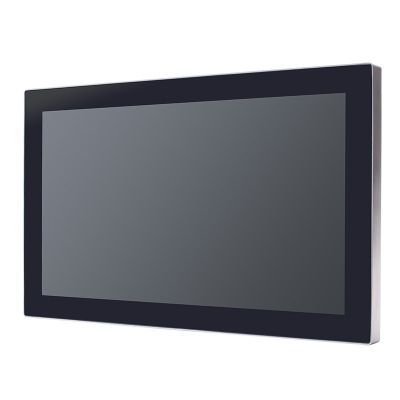

GOT515-RPL-WCD 15.6" IP66/IP69K Stainless Steel Fanless Panel PC
15.6" FHD TFT IP66 Stainless Steel Fanless PCT Panel Computer with Intel Core i5-1335UE or U300E and Flat Bezel Design
Key Features:
- 15.6" FHD TFT flat bezel LCD
- Fanless design with Intel® Core™ i5-1335UE or processor U300E
- Full Stainless SUS304 enclosure with IP66 & IP69K
- Supports vertical installation with 90° rotated I/O
- Supports proximity and light sensors
- EC control (backlight on/off, brightness, light sensor, touch on/off, and Super I/O)
- Intelligent power management solution (Smart Ignition)
- Programmable OSD function key
- Operating temperature: -20°C to +50°C
Introducing the Axiomtek GOT515-RPL-WCD: A Rugged, Fanless 15.6" Panel PC for Industrial Environments
Tekdis, an authorised distributor of Axiomtek products, presents the GOT515-RPL-WCD, a highly durable, fanless 15.6" panel PC designed for demanding industrial applications. Engineered with an IP66/IP69K-rated SUS304 stainless steel enclosure, this rugged solution delivers exceptional durability and longevity, making it ideal for industries such as heavy machinery, food processing, chemical manufacturing, and agricultural automation.
Superior Display & Smart Energy Management
The GOT515-RPL-WCD features a 15.6" FHD LCD display with 450-nit brightness and projected capacitive multi-touch technology, ensuring enhanced visibility and usability in harsh environments. Designed with sustainability in mind, it incorporates:
-
Auto-Dimming Technology – Adjusts screen brightness to reduce energy consumption and extend display life.
-
Smart Ignition Technology – Ensures intelligent power management, enhancing efficiency in vehicle and industrial applications.
“The GOT515-RPL-WCD reflects Axiomtek’s dedication to high-performance industrial solutions,” said Wesley Lee, Product Manager at Axiomtek. “With an operating temperature range of -20°C to +50°C, a robust IP66/IP69K-rated enclosure, and Smart Ignition power management, this system delivers top-tier performance and energy efficiency.”
Powerful Performance & Reliable Connectivity
Powered by an Intel® Core™ i5-1335UE or U300E processor, the GOT515-RPL-WCD offers high-performance computing with exceptional reliability. It features:
-
Lockable M12 I/O connections for secure and stable industrial connectivity.
-
Wide operating temperature range (-20°C to +50°C) for reliable performance in extreme environments.
-
Rich I/O connectivity, including:
-
RS-232/422/485 (default RS-232, A-coded)
-
Dual USB 2.0 ports (A-coded)
-
2.5GBase-T Ethernet (Intel® I226, X-coded) with Wake-on-LAN & PXE Boot ROM
-
1GBase-T Ethernet (Intel® I210, X-coded)
-
Optional M12 I/O blank via cable (two USB 2.0 + one COM RS-232)
-
M12 DC power connector (A-coded) with ACC support for stable power management
-
Flexible Expansion & Storage Options
For seamless connectivity and expandable storage, the GOT515-RPL-WCD provides:
-
One full-size PCIe Mini Card slot (USB + PCIe/SATA) with nano-SIM socket supporting PCIe Mini Card or mSATA with auto-detection.
-
One M.2 Key E 2230 slot for Wi-Fi + Bluetooth modules.
-
One M.2 Key M 2280 slot (PCIe Gen4 x4/SATA) for NVMe/SATA SSDs or PCIe devices with auto-detection.
With its rugged construction, high-performance processing, and versatile connectivity, the GOT515-RPL-WCD is an ideal solution for industrial applications requiring durability, efficiency, and advanced computing power.
|
LCD Panel |
|
|
CPU |
|
|
Chipset |
|
|
System Memory |
|
|
BIOS |
|
|
COM |
|
|
USB |
|
|
Ethernet |
|
|
Display |
|
|
Audio |
|
|
Storage |
|
|
Expansion |
|
|
Others |
|
|
Touchscreen |
|
|
Enclosure |
|
|
Power Supply |
|
|
Power Comsumption |
|
|
Watchdog Timer |
|
|
Operating Temperature |
|
|
Relative Humidity |
|
|
Vibration |
|
|
Dimensions (W x D x H) |
|
|
Weight (net/gross) |
|
|
Certifications |
|
|
EOS |
|
|
Mounting |
|
GOT515-RPL-WCD (P/N-E22B515100)
15.6" FHD TFT IP66 rated stainless steel fanless PCT panel computer with Intel® Core™ i5-1335UE processor and flat bezel design
509000002200
24V/90W adapter, M12 A-coded 5P, AC to DC VOUT=24V,3.75A/100 to 240V, FSP090-AAAN3
594B8120B30E
DC-in cable M12 female 5P 180cm without ACC
594B8122820E
USB cable M12-8P-F/2*A type 180CM
594B8152710E
LAN cable M12-XCODE/RJ-45 plug CAT6 180CM
594B8122100E
RS-232 cable M12-8F to DSUB 9M 180CM
